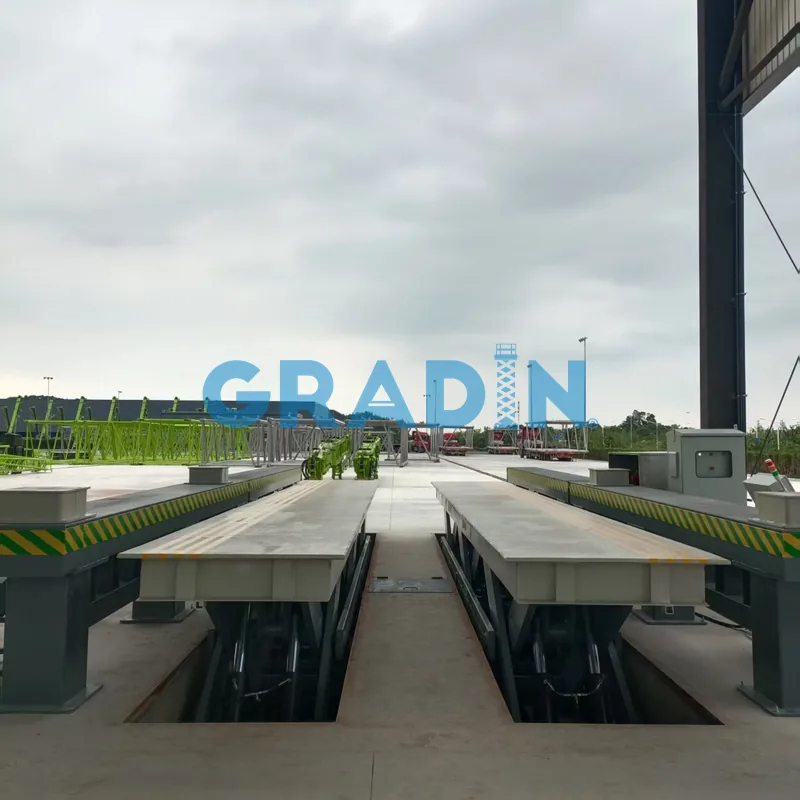

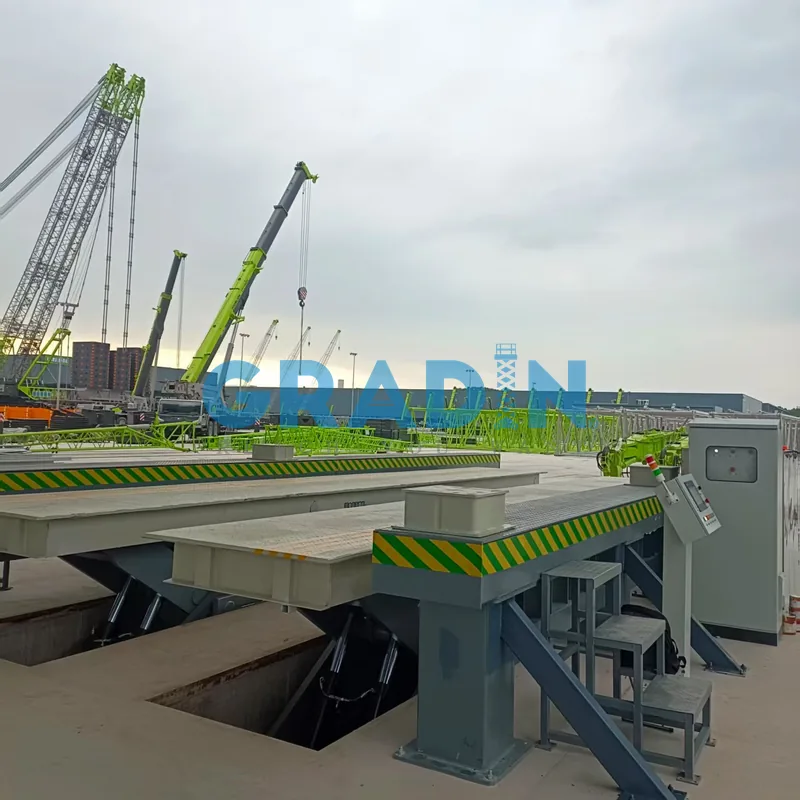

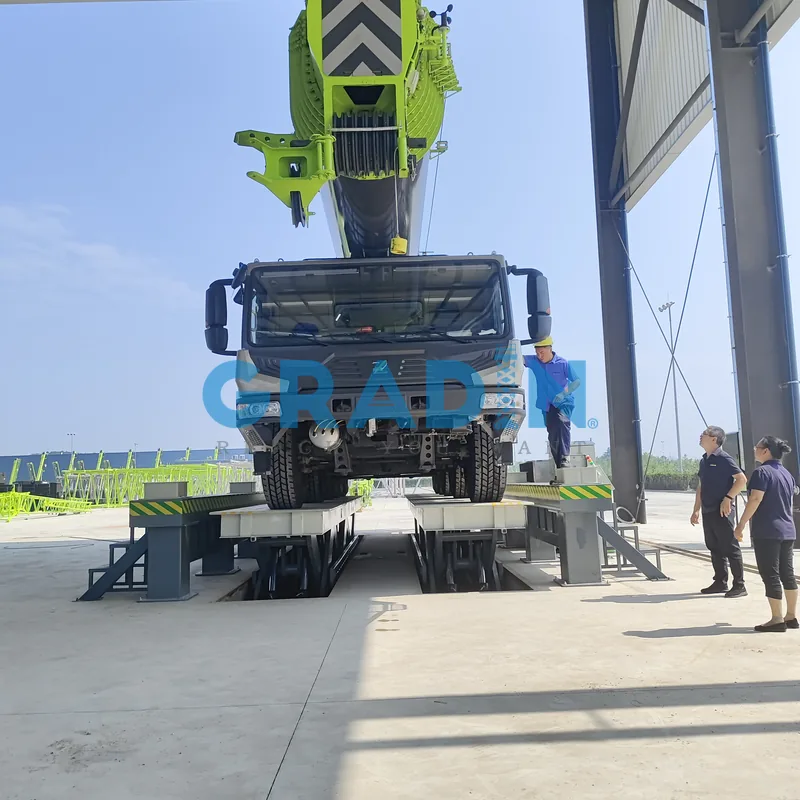

Handling 80-ton payloads requires more than just raw power; it requires mathematical precision. For a heavy-industry leader in Germany, Gradin engineered a Dual-Set Synchronized Scissor Lift Platform. This project addresses the critical need for absolute horizontal stability during the assembly of massive industrial components, where even a 2mm tilt could lead to catastrophic failure.
In ultra-heavy lifting, the “Information Foraging” for safety data is intense. The client feared:
The Risk: Non-synchronized lifting causing eccentric load stress and structural fatigue.
The Consequence: Million-euro losses in equipment damage and prolonged operational downtime.
Gradin’s solution leveraged Mechanical-Hydraulic Cross-Linking:
Closed-Loop Synchronization: A high-precision flow distribution system ensuring all scissor sets move in perfect unison within ±2mm tolerance.
Extreme Load Rigidity: Utilizing high-tensile structural steel optimized via Finite Element Analysis (FEA) to ensure zero platform deflection at 80,000kg.
Safety Redundancy: Multiple safety layers including burst-valve protection and electronic tilt-monitoring.
| Metric | Specification |
| Max Capacity | 80,000 kg (80 Tons) |
| Synchro-Precision | < 0.2% Total Stroke Variance |
| Platform Type | Heavy-Duty Dual-Linkage Scissor |
| Safety Standard | CE / EN 1570-1 |
| Drive Power | High-Torque Hydraulic Power Unit (HPU) |
Gradin: Providing the structural certainty for global heavy industry.
