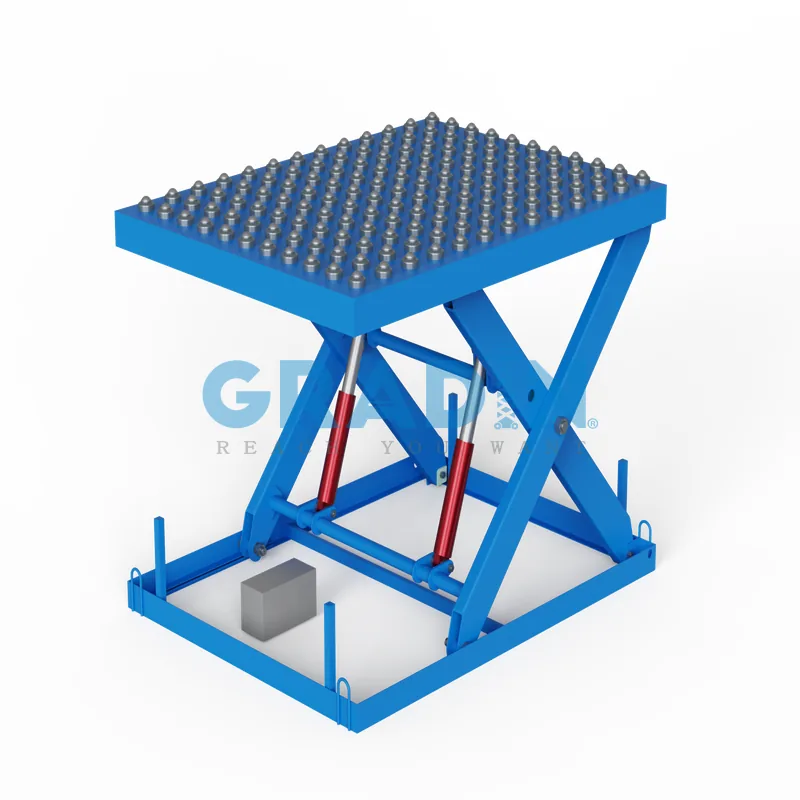

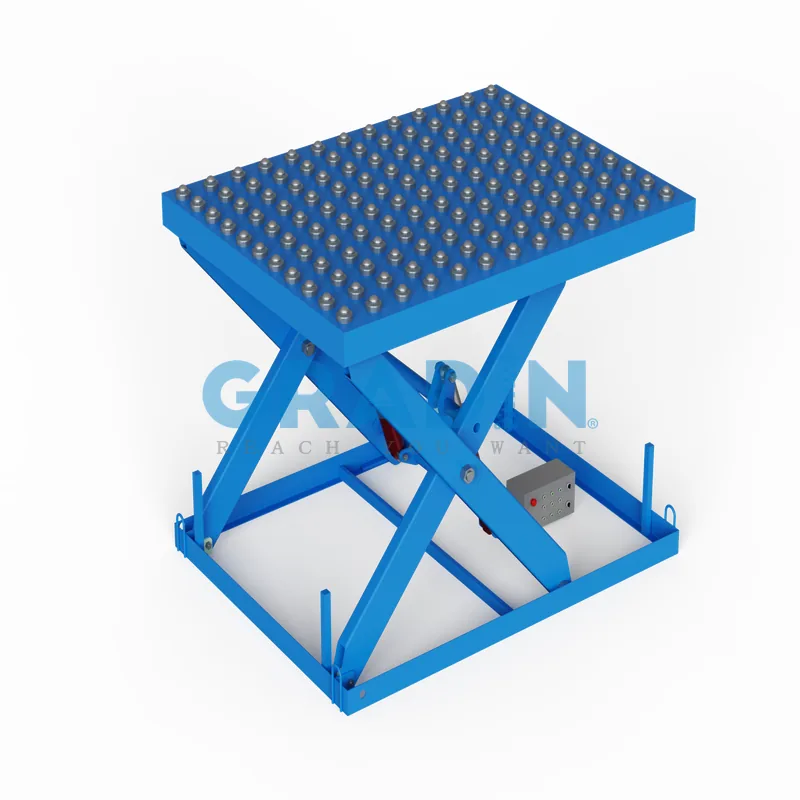

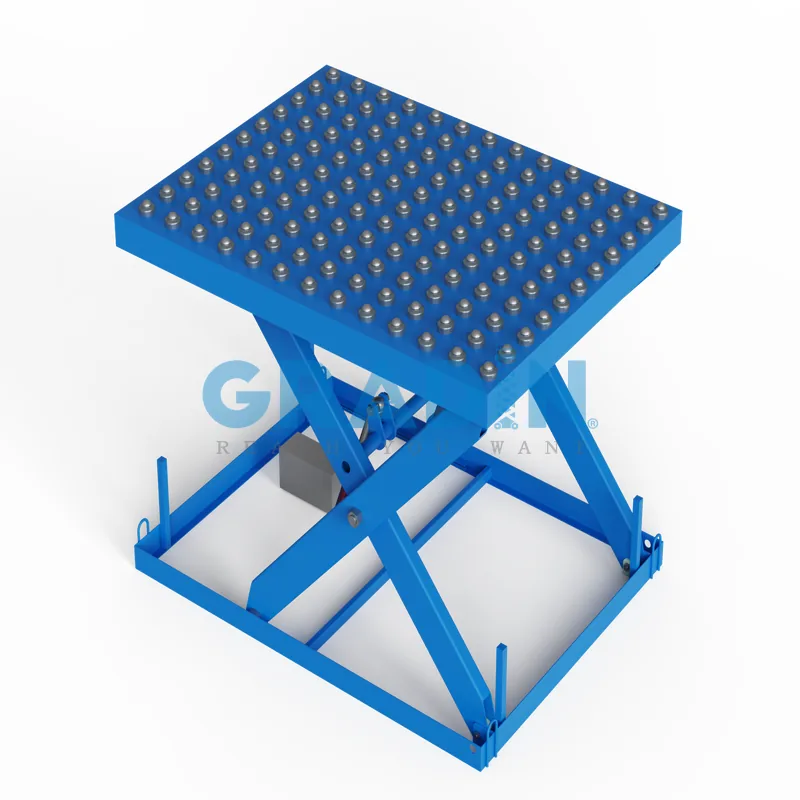

A heavy-duty lifting platform engineered with an omnidirectional ball transfer deck for multi-axis manual load manipulation. 100% custom-built, it utilizes high-capacity steel or nylon ball units to neutralize static friction, allowing operators to position massive stamping dies, molds, or sheet metal without mechanical binding or inducing eccentric platform tipping.
Matrix Geometry: Ball pitch and individual unit load ratings are strictly calculated for your specific tooling mass and flat-bottom footprint, preventing point-load surface gouging.
Lateral Integrity: FEA-validated reinforced scissor legs and hardened pivot pins are engineered to absorb the severe lateral dynamic forces generated during high-tonnage manual pushing.
Elevation Precision: Closed-loop hydraulic logic executes zero-drift, ±1mm height retention to align perfectly with your adjacent stamping presses or storage racks.
| Technical Category | Engineering Keys | Standard Reference | Gradin Bespoke (ETO Options) |
| I. Performance | Rated Payload Capacity | 500 kg – 2,000 kg | Scalable 3,000kg to 150,000kg+ |
| Movement Axis | Vertical Only | Omnidirectional (X-Y-Z Sync) | |
| Positioning Accuracy | ± 30 mm | Sub-Millimeter Calibration (± 1 mm) | |
| II. Structural | Scissor Engineering | Standard Rolled Steel | FEA-Optimized High-Yield Alloy Box |
| Ball Transfer Units | Light-Duty Nylon | Hardened Steel / Pop-Up Pneumatic | |
| Surface Protection | Industrial Paint | C5-M Marine / Stainless / Anti-Static | |
| III. Intelligence | Control Architecture | Siemens S7-1500 | Industry 4.0 / 5G Smart Integration |
| Handshake Protocol | Manual I/O Signals | Profinet / EtherCAT / TCP-IP | |
| Feedback Mechanism | Limit Switches | Absolute Encoders / Laser Rangefinders | |
| IV. Compliance | Risk Mitigation | Basic E-Stop | Active SIL 3 / Perimeter Interlocks |
| Global Standards | Local Codes | OSHA / ASME B20.1 / ISO 13849 |
Operating a Gradin Bespoke Ball Table Scissor Lift at high-tonnage scales—especially with 30T to 150T loads—introduces extreme concentrated stress at the ball contact points. Generic platforms often suffer from “dimpling” or structural bowing under these point-loads. Our B-Series systems utilize advanced Finite Element Analysis (FEA) to optimize the top-deck and scissor chassis specifically for the high-intensity pressure of heavy-duty ball transfer units. We utilize high-yield, box-section alloy steel, ensuring absolute structural rigidity even when the load center is shifted or during omnidirectional movement. This structural stiffness neutralizes the harmonic resonance common in light-duty lifts, preserving the fatigue life of the entire system over decades of 24/7 operation.
The successful integration of a ball table lift depends on the exactness of the load transition and orientation. Standardized systems often suffer from “leveling drift,” causing cargo to shift unintentionally. The Gradin Bespoke Ball Table Scissor Lift bypasses these failures through a Closed-Loop Servo Architecture and optional integrated pneumatic pop-up ball arrays. Utilizing the Siemens S7-1500 PLC suite, the system achieves sub-millimeter deck alignment (±1mm) at every floor transition. When the lift reaches its target height, the PLC triggers the pneumatic pop-up balls to allow frictionless omnidirectional positioning; once the load is aligned, the balls retract to secure the cargo on a high-friction surface for safe transit or processing.
The B-Series functions as more than a vertical transporter; it is an intelligent multi-axis node within your facility’s digital nervous system. It is designed for seamless native integration with modern Warehouse Management Systems (WMS) and robotic assembly cells. Through Profinet, EtherCAT, or 5G connectivity, the system facilitates a real-time data handshake, reporting carrier occupancy, torque profiles, and load orientation directly to your MES. To ensure maximum uptime in high-stakes facilities, integrated vibration sensors track the “health signature” of the scissor pivots and hydraulic seals. This Predictive Maintenance Monitoring identifies component wear before it results in unplanned downtime, transforming maintenance from a reactive task into a scheduled, data-driven strategy.
In automotive stamping facilities, moving and aligning 30T+ dies requires absolute precision and minimal friction. The Gradin Bespoke Ball Table Scissor Lift eliminates the mechanical strain of die-changing with a high-capacity ball array. Its sub-millimeter leveling ensures that the die can be manually or robotically oriented with zero-effort omnidirectional movement, protecting both the high-value tooling and the press interface from kinetic damage during the transfer process.
Vertical transit and orientation of oversized aerospace components require a vibration-free vertical link and precise micro-adjustment capabilities. The bespoke B-Series utilizes specialized soft-start/stop dynamics and vibration-dampened ball mounts. This ensures that sensitive internal structures of the wing are never subjected to harmonic resonance or sudden G-force changes during vertical indexing, making it an ideal choice for high-precision aerospace assembly floors where structural integrity and exact positioning are non-negotiable.
Transporting palletized goods in extreme environments where lubricants freeze or metallic dust is prohibited demands extreme material resilience. The Gradin Bespoke Ball Table Scissor Lift can be engineered with stainless-steel ball units and oil-free drive systems. By utilizing thermal-rated mechanical alloys and C5-M marine-grade protection, the B-Series provides a reliable vertical artery that maintains environmental sterility and operational flow in the most demanding industrial sectors.
Redundant Engineering as the Absolute Engineering Priority
Safety in high-tonnage automated vertical logistics—especially where AMRs and human operators interface with open platforms—is the core of our engineering mandate. The Gradin Bespoke Ball Table Scissor Lift exceeds international regulatory standards through a multi-layered redundancy loop:
Active SIL 3 Risk Mitigation: We integrate ultra-fast pressure-sensing valves and secondary mechanical lockouts. If any deviation in hydraulic pressure or an obstruction is detected, the safety PLC executes a Category-0 stop in milliseconds.
Perimeter Safety Interlocks: Every system is designed with full-height safety bellows or shaft enclosures, electronically interlocked with the ASME B20.1 safety logic to ensure zero operator access during transit or omnidirectional indexing.
Fail-Safe Mechanical Braking: Redundant electromagnetic braking systems provide a 200% holding torque safety margin. These engage instantly during an E-stop or power loss, securing the carriage and protecting the facility infrastructure from catastrophic failure.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
