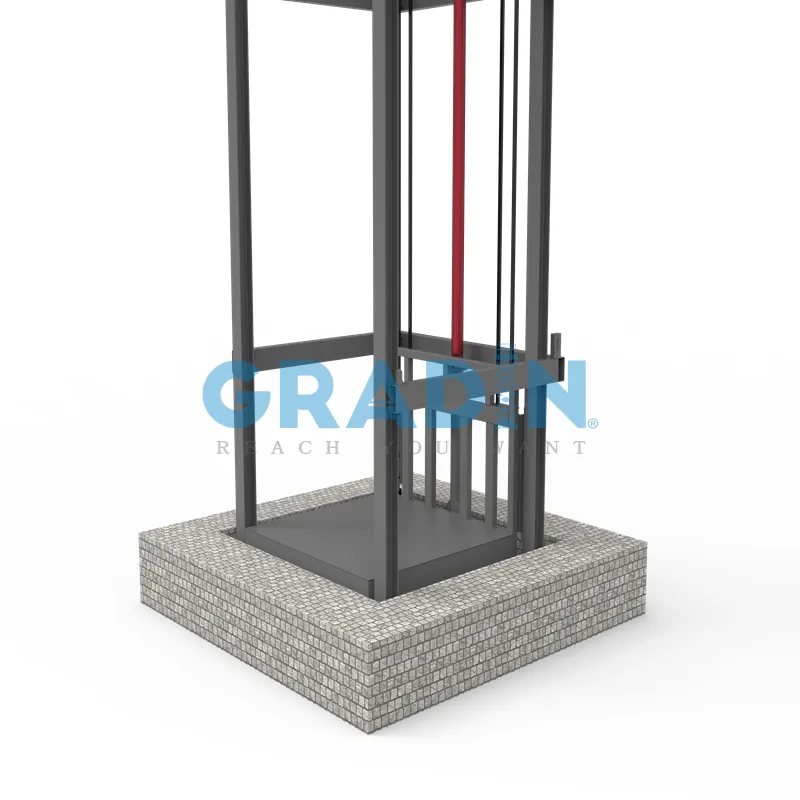

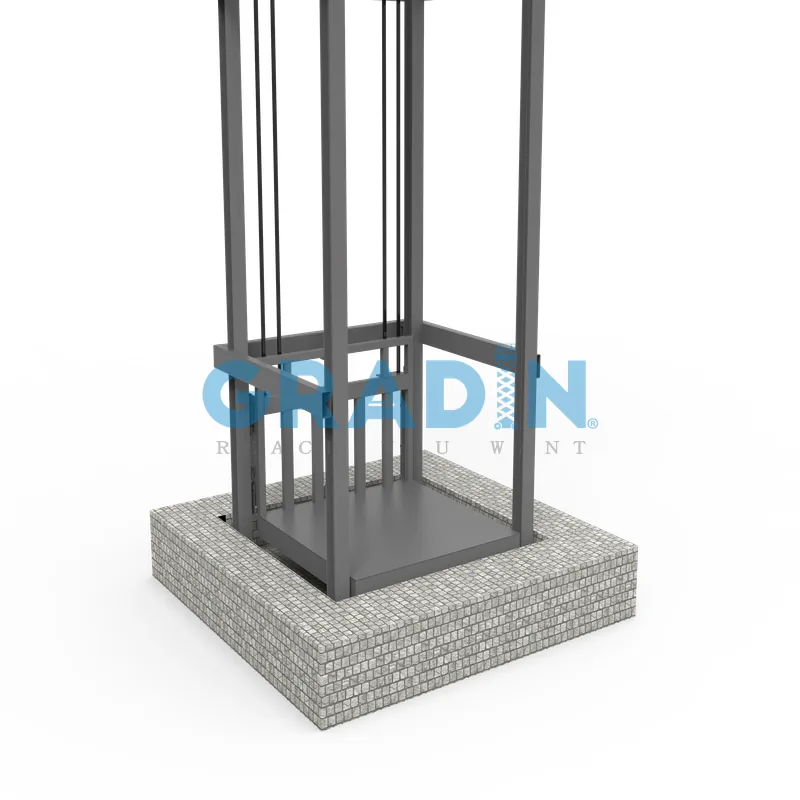

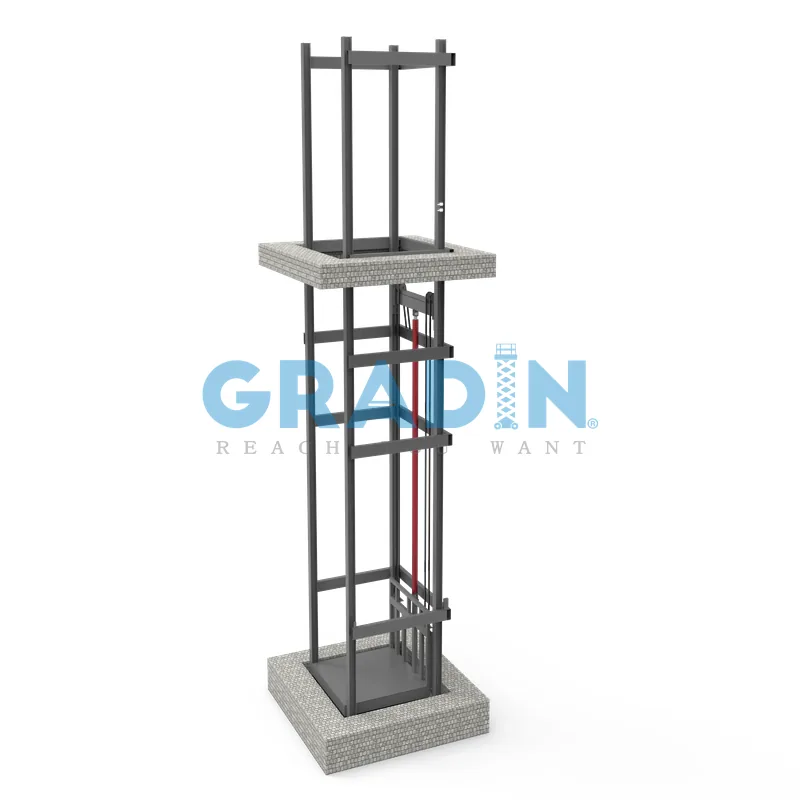

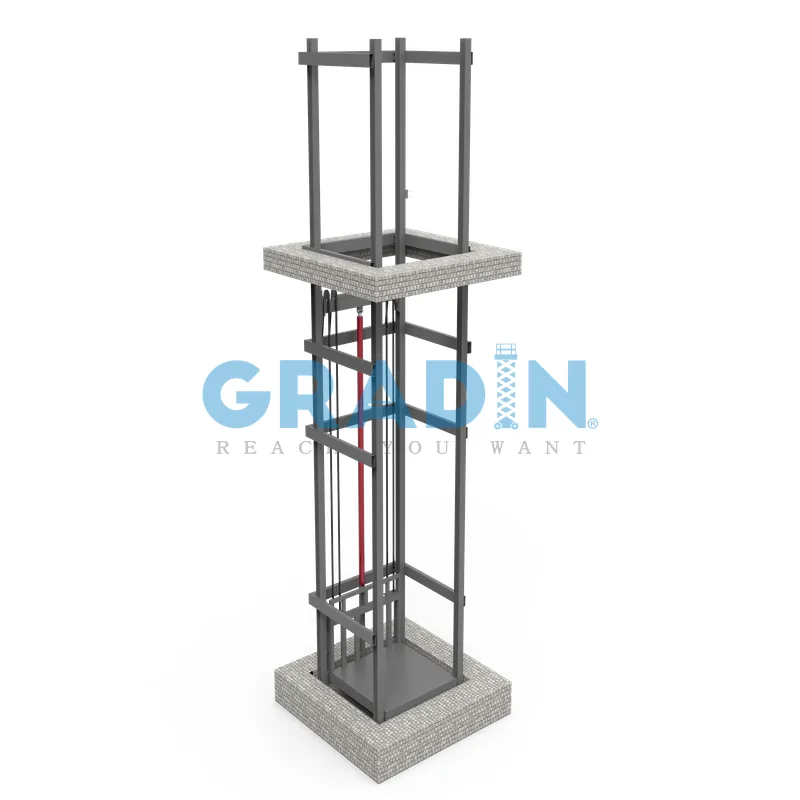

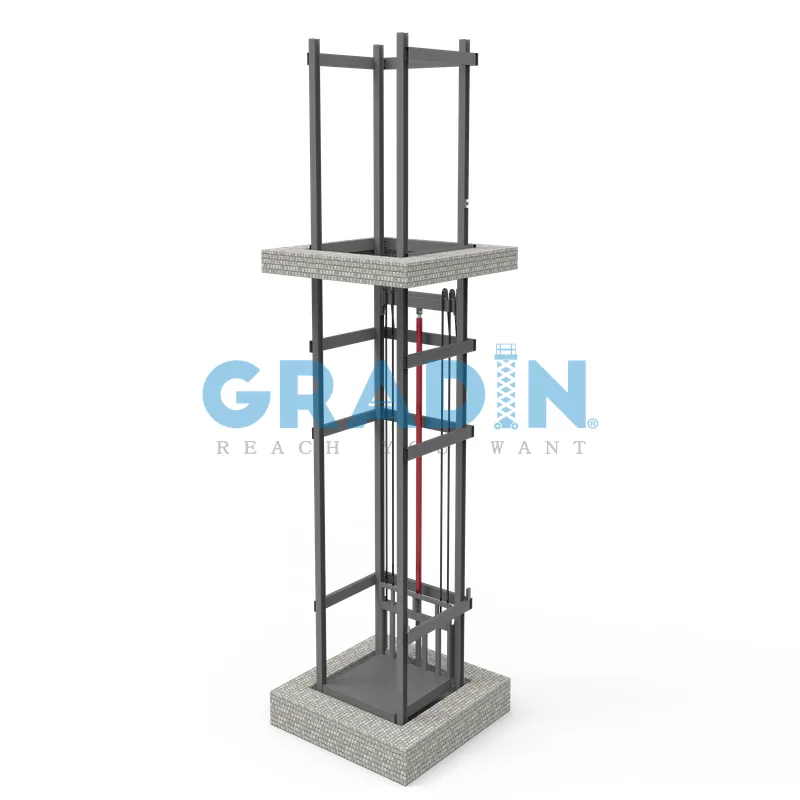

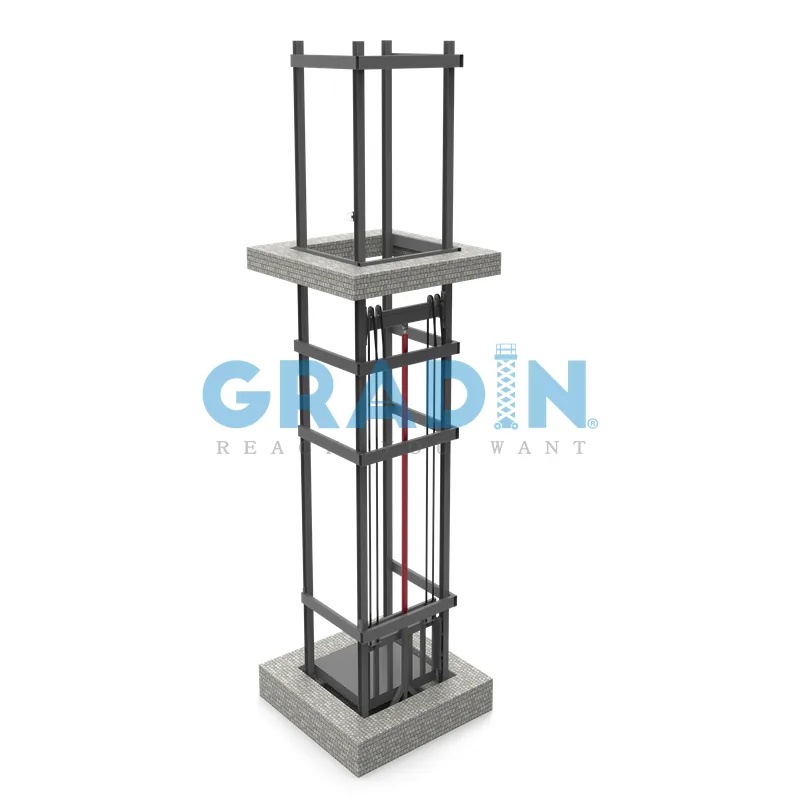

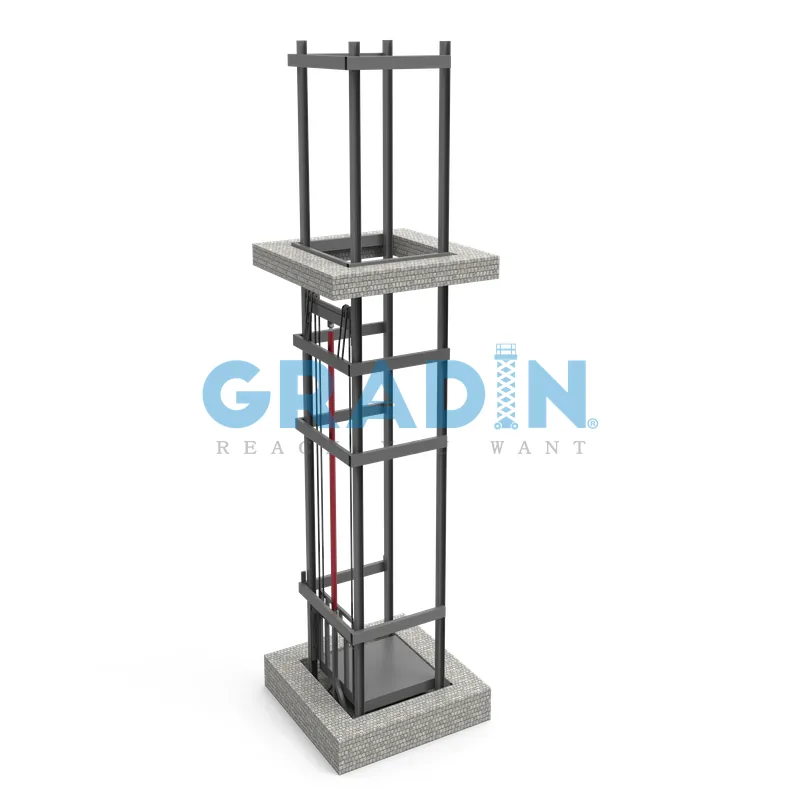

A guarded single cylinder lift utilizes a high-pressure hydraulic actuator stabilized by a rigid dual-mast guide system, all fully enclosed within a safety hoistway. Open-frame single cylinder lifts in busy work environments expose operators to moving mechanical pinch points and create significant risks from falling debris or accidental contact during the lifting cycle. Gradin engineers these systems by surrounding the lifting column with an interlocked steel-mesh or solid-panel enclosure that synchronizes directly with the onboard PLC. This structural architecture ensures the lift remains immobilized unless all safety gates are mechanically sealed, while the precision-machined guide rails prevent platform swaying during high-cycle operation. Every enclosure footprint, carriage dimension, and lifting stroke is custom-calculated to fit your specific facility constraints and meet strict industrial safety compliance standards
| Technical Category | Bespoke Keys | Standard Reference | Gradin Bespoke (ETO Logic) |
| I. Performance | Rated Load Path | 1,000 kg – 5,000 kg | 50,000kg to 150,000kg+ (Heavy-Industrial) |
| Vertical Pulse | Intermittent | S1-Class Continuous Heavy-Cycle Operations | |
| Leveling Tolerance | ± 30 mm | Laser-Corrected Sub-Millimeter (± 1 mm) | |
| II. Structural | Mast Configuration | 2-Post Cantilever | 4-Post Symmetrical High-Yield Alloy |
| Actuation Kinematics | Single Cylinder | High-Pressure Axial Ram with Cross-Sync | |
| Surface Protection | Industrial Paint | C5-M Marine Grade / Anti-Static / Stainless | |
| III. Intelligence | Control Nucleus | Siemens S7-1500 | Profinet-Native / 5G Mesh Integration |
| Handshake Protocol | Discrete I/O | Full-Stack WMS / MES / AGV Interfacing | |
| Diagnostic Depth | Basic Alarms | Digital Twin / Predictive Wear Sensors | |
| IV. Compliance | Risk Mitigation | Relay Interlocks | Active SIL 3 / Quad-Channel Redundancy |
| Global Norms | Local Codes | ASME B20.1 / ISO 13849-1 / OSHA |
In 150-ton vertical logistics, the primary engineering failure in single-cylinder systems is “carriage-tilt” caused by off-center cargo placement. Standardized lifts often suffer from binding guide rollers and premature seal failure. The Gradin Bespoke Single-Cylinder 4-Post Lift bypasses this through a symmetrical quad-mast architecture. Utilizing advanced Finite Element Analysis (FEA), our team calculates the exact torsional stress generated when heavy steel dies or powertrain modules enter the platform. We utilize high-yield, box-section alloy masts at all four corners, interconnected by a precision-machined mechanical equalization system. This ensuring that the central hydraulic ram performs purely axial work, while the quad-masts neutralize 100% of the lateral bending moments. This structural absolute prevents mechanical fatigue and preserves the fatigue life of the entire building-integrated vertical artery.
The success of an elite 4-post node depends on the perfect synchronization of the four lifting points. The Gradin Bespoke Single-Cylinder 4-Post Lift utilizes a specialized mechanical-hydraulic hybrid drive. While a single centralized ram provides the primary thrust, a heavy-duty cross-equalization chain or cable system ensures that all four corners of the platform move in a perfectly horizontal plane. Utilizing the Siemens S7-1500 PLC suite and high-resolution absolute encoders, the system achieves ±1mm floor-leveling accuracy. This precision is essential for automated fulfillment centers where high-speed AGVs and robotic shuttles demand a zero-bump transition to prevent sensor trip-outs and maintain peak items-per-minute (IPM) throughput.
As a native Industry 4.0 node, every Gradin Bespoke Single-Cylinder 4-Post Lift is capable of generating a real-time Digital Twin for remote lifecycle management. We integrate multi-axis vibration sensors and hydraulic pressure profilers directly into the control architecture. Through Profinet, EtherCAT, or 5G connectivity, the lift reports its operational “health signature” directly to your Manufacturing Execution System (MES). This facilitates Predictive Maintenance Monitoring, where the system autonomously anticipates cylinder seal degradation, equalization chain-stretch, or guide-rail friction anomalies before they manifest as downtime. This level of data transparency transforms a simple transporter into a transparent, self-monitoring industrial asset, guaranteeing 99.9% availability in high-stakes, 24/7 manufacturing environments.
In automotive manufacturing, moving 50T–100T stamping dies between floors requires absolute structural stability to prevent vibration-induced tool damage. The Gradin Bespoke Single-Cylinder 4-Post Lift provides the rigidity to handle concentrated point-loads with zero structural deflection. Its sub-millimeter leveling ensures that automated die-changing carts can transition across the threshold with zero positional error. For integrated horizontal flow, consider our Gradin Bespoke Heavy-Duty Transfer Cart to complete the multi-level automation loop.
Orientation and transit of high-density jumbo rolls require a vibration-free vertical link and extreme point-load resilience. The bespoke S-Series utilizes specialized soft-start/stop dynamics and vibration-dampened carrier mounts. This ensures that sensitive paper structures are never subjected to hydraulic fluid leakage or sudden G-force changes during floor-to-floor transit, making it the superior choice for high-volume paper processing floors where structural integrity is a non-negotiable requirement for 24/7 continuous duty cycles.
Moving oversized aerospace sections or heavy component kits across multi-level assembly plants demands extreme positional repeatability. The custom Gradin Bespoke Single-Cylinder 4-Post Lift is engineered with FEA-optimized structural decks designed to handle specific load-center shifts during robotic loading. By eliminating the structural deflection inherent in standard elevators, the quad-mast architecture provides a reliable vertical artery that sustains non-stop production flow even in the most demanding aerospace assembly environments.
Safety in 150T+ automated vertical logistics is the core of the Gradin Bespoke Single-Cylinder 4-Post Lift design mandate:
Active SIL 3 Risk Mitigation: We integrate ultra-fast pressure-sensing valves and redundant SICK Safety Scanners. Any hydraulic deviation or obstruction triggers a Category-0 stop in milliseconds, preventing structural damage.
Fail-Safe Mechanical Arrestors: Symmetrical anti-fall cams engage the guide rails instantly in the event of drive-tension loss, ensuring the heavy platform remains static even during a total power failure, meeting the highest ASME B20.1 requirements.
Perimeter Safety Interlocks: Every floor station is designed with full-height shaft enclosures or light curtains, electronically interlocked with the safety PLC logic to ensure zero operator access during the vertical cycle, meeting all global OSHA directives.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
