An automated VRC system functions as a dynamic vertical bridge, seamlessly integrating multi-tier horizontal conveyor networks into a single continuous material flow. Relying on manual forklift transfer between conveyor elevations disrupts automated production cycles, introduces severe throughput bottlenecks, and increases the risk of product impact damage. Gradin engineers these heavy-duty lifts by equipping the carriage with high-torque powered roller or chain-transfer decks, synchronized entirely via closed-loop PLC logic and precise photo-eye arrays. This electromechanical architecture executes sub-millisecond digital handshakes with your adjacent automated sorting lines, autonomously receiving, elevating, and discharging multi-ton payloads. Every powered deck profile, variable frequency drive (VFD) acceleration ramp, and structural mast is custom-engineered to your exact cycle-per-hour requirements, ensuring zero-impact load transitions in high-volume, unmanned industrial environments.
| Technical Parameter | Standard Range | Maximum Customization |
| Load Capacity | 500 kg — 2,000 kg | Up to 5,000 kg+ |
| Conveyor Speed | 10 — 15 m/min | Adjustable / High-speed |
| Travel Height | 3,000 mm — 15,000 mm | Up to 30,000 mm (30 Meters) |
| Platform Dimensions | 1200 * 1200 mm | Fully Tailored to Cargo Size |
| Throughput | 30 — 40 cycles/hr | Up to 60+ cycles/hr |
| Control System | PLC / Touch Screen | Full SCADA / WMS Integration |
| Drive Type | Motorized Traction | Hydraulic / High-Speed Servo |
The Gradin Automated VRC System is a cutting-edge vertical reciprocating conveyor designed for fully unmanned, high-efficiency material handling in multi-story facilities. This advanced system seamlessly integrates with existing automation, ensuring rapid and safe vertical transport of goods across multiple levels.
It stands as a pivotal solution for modern industrial environments demanding precision, speed, and unwavering reliability in their material flow operations. The Gradin Automated VRC System transforms complex vertical logistics into a streamlined, cost-effective process.
Seamless Automation Integration for Unmanned Operation: The Gradin Automated VRC System is engineered for full automation, allowing for seamless integration with existing roller conveyor lines. This eliminates the need for manual intervention, enabling continuous, unmanned material flow and significantly reducing labor costs, a key aspect of modern INDUSTRIAL AUTOMATION .
Intelligent Multi-Floor Logic for Precision Lifting: Equipped with advanced multi-floor logic, this VRC system provides precision lifting and lowering capabilities across three or more distinct floor levels. Its intelligent floor selection ensures accurate and efficient material distribution, optimizing complex vertical logistics pathways.
Exceptional Efficiency with High-Speed Vertical Transfer: Achieve maximum operational efficiency with the Gradin Automated VRC System’s impressive vertical transfer speed, capable of up to 40-60 cycles per hour. This high throughput significantly accelerates material movement between floors, boosting overall productivity and reducing bottlenecks.

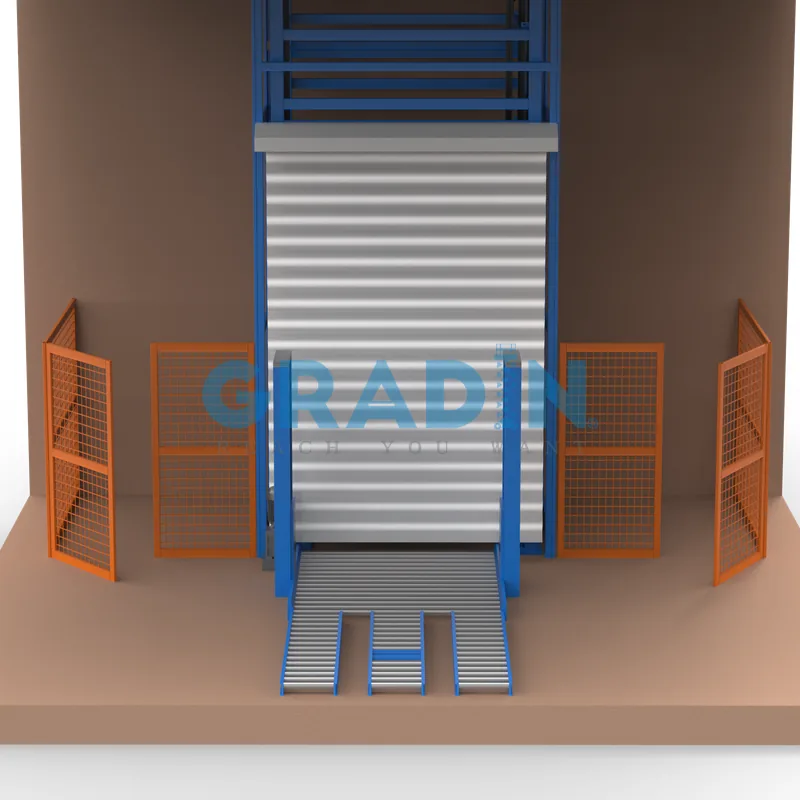

Comprehensive Safety with Automatic Interlocks and Fencing: Safety is paramount with the Gradin Automated VRC System, featuring automatic rolling shutters and robust perimeter fencing. These integrated safety interlocks ensure 100% security for both personnel and cargo, preventing unauthorized access and ensuring safe operation at all times.
Fully Customizable Design for Tailored Solutions: The Gradin Automated VRC System offers 100% customization, meticulously tailored to your specific operational needs. This includes flexible infeed/outfeed heights and custom platform dimensions, ensuring perfect integration into any existing facility layout or new project.
Automated Warehouses & Distribution Centers: Ideal for high-volume, multi-floor automated material handling, seamlessly moving goods between picking, packing, and shipping areas. Its high cycle rate and unmanned operation optimize throughput in modern automated storage and retrieval systems (AS/RS).
E-commerce Fulfillment Centers: Crucial for efficient, rapid vertical transport of parcels and inventory between different levels in fast-paced e-commerce operations. The system’s precision and integration capabilities support continuous flow from receiving to order fulfillment.
Multi-Story Manufacturing & Production Lines: Indispensable for automated transfer of components, work-in-progress, and finished products between various production stages on different floors. It ensures synchronized material flow, supporting lean manufacturing principles and continuous production.
Automotive & Aerospace Plants: Perfect for the automated vertical movement of large parts, sub-assemblies, and heavy tools within multi-level manufacturing or assembly facilities. Its robust construction and customizable dimensions accommodate diverse industrial loads and complex logistical requirements.
Automated Production & Processing Facilities: Facilitates the vertical movement of raw materials, semi-finished goods, or waste products between different processing floors, integrating seamlessly into automated systems. Its durable construction and extensive vertical reach withstand harsh industrial environments. The Gradin Automated VRC System is an essential tool, complementing a broad array of AUTOMATED MATERIAL HANDLING SOLUTIONS .
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
