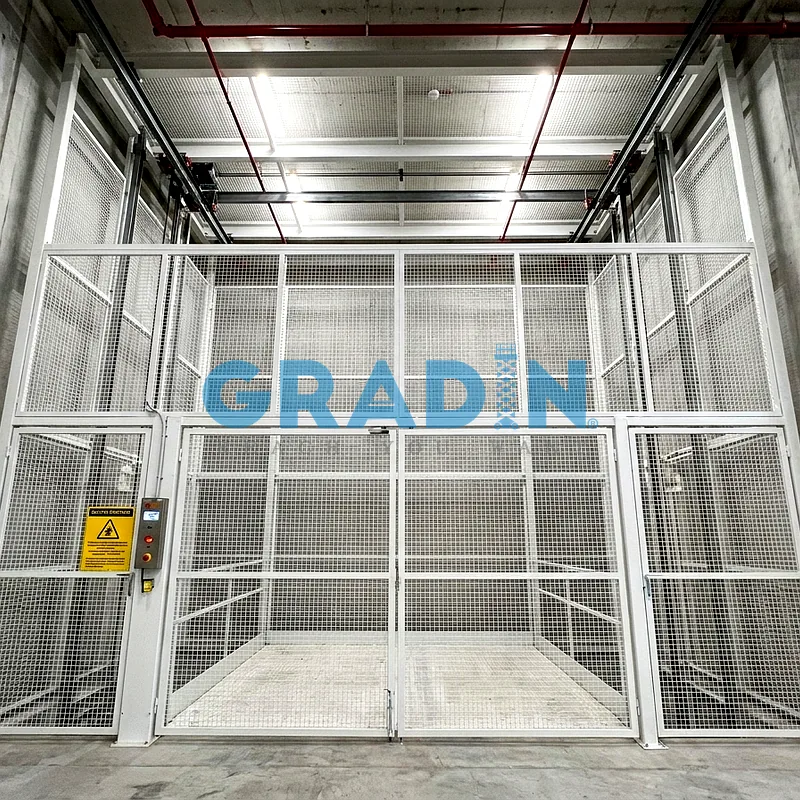

This standard VRC cargo lift provides a reliable and cost-effective vertical transport solution for moving freight between mezzanine levels or multiple floors. The system is engineered with a top-mounted mechanical drive to maximize floor space and a full-height wire mesh enclosure to ensure the highest safety standards for operators and cargo. Featuring integrated landing control panels with digital floor indicators and electro-mechanical interlocks, it serves as a robust alternative to forklifts for high-cycle material handling in warehouses and manufacturing facilities.
| Parameter | Unit | Standard Range | Customization Options |
| Rated Load Capacity | kg | 500 – 2,000 | Configurable for lighter or heavier freight |
| Max. Lifting Height | mm | 3,000 – 12,000 | Tailored to multi-story building elevations |
| Platform Dimensions | mm | 1,200 x 1,500 | Fully customized to cargo footprint |
| Lifting Speed | m/min | 4 – 6 | VFD-adjustable for smooth material handling |
| Drive Mechanism | – | Top-mounted Motor/Chain | High-cycle mechanical drive systems |
| Enclosure Material | – | Steel Wire Mesh | Perforated plate or sheet metal panels |
| Control Logic | – | PLC / Digital Relay | Integration with building automation |
| Gate Type | – | Single Swing Gate | Vertical acting or bi-parting doors |
| Power Supply | V/Hz | 380V / 50Hz | Global voltage compatibility (220V – 480V) |
| Safety Devices | – | Mechanical Safety Cams | Redundant sensors and interlock logic |
Space-Efficient Top-Mounted Drive: Features a mechanical drive assembly positioned at the top of the lift, eliminating the need for a dedicated machine room and maximizing usable floor space.
Full-Height Wire Mesh Enclosure: Equipped with industrial-grade safety mesh on all sides to provide clear visibility of the cargo while preventing personnel from entering the lift shaft during operation.
Electro-Mechanical Gate Interlocks: Includes safety-rated interlocks on all landing doors to ensure the lift carriage cannot move unless all gates are securely closed and locked.
Integrated Digital Control System: Features a user-friendly control interface at every landing level with digital floor displays and emergency stop buttons for precise operational monitoring.
Industrial-Grade Dual Guide Rails: Engineered with heavy-duty structural steel guide rails to ensure smooth, vertical travel and minimize platform sway under full load capacity.
Fail-Safe Mechanical Safety Cams: Equipped with instantaneous-acting safety cams that lock the carriage to the guide rails in the event of a chain or cable failure, ensuring total cargo security.
Customizable Carriage Configuration: The lift platform can be tailored with various gate types (swing, vertical-acting, or bi-parting) and access orientations to fit the specific layout of the facility.
Warehouse Mezzanine Access: Providing an efficient vertical link to elevated storage areas, allowing for the safe transfer of palletized goods or bulk materials without the need for forklifts.
Multi-Level Manufacturing Facilities: Supporting the flow of work-in-progress materials and components between production floors in compact industrial layouts.
Retail and E-commerce Backrooms: Facilitating the movement of inventory from ground-level receiving docks to elevated racking or sorting levels in high-density urban facilities.
Industrial Parts Storage: Ideal for the vertical transport of heavy automotive, railway, or machinery spare parts within multi-story maintenance depots.
Archive and Document Storage: Used in professional storage centers to move heavy document bins and specialized shelving units between floor levels.
Clean and Light Industrial Zones: The white-coated mesh enclosure and compact footprint make it suitable for pharmaceutical or electronics facilities requiring vertical material flow.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
