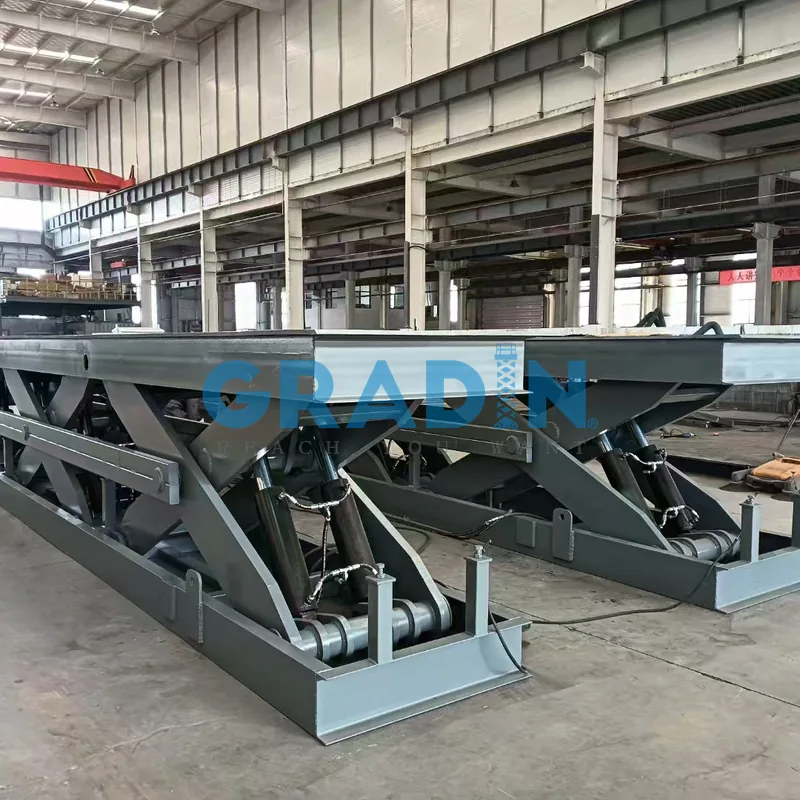

A linked elevating matrix engineered for oversized, unbalanced payloads. 100% custom-built, it utilizes closed-loop proportional valves and absolute encoders to execute simultaneous multi-axis displacement, neutralizing eccentric bending moments and eliminating structural racking across expansive industrial platforms.
Expansive Matrices: Tandem, quad, or multi-table geometries strictly calculated to support your specific aerospace frames, elongated dies, or extended assembly lines.
Absolute Synchronization: Multi-channel PLC logic guarantees identical cylinder ascent rates, preventing torsional deflection under severe asymmetrical tonnage.
Kinetic Rigidity: FEA-validated heavy-duty steel legs and hardened pivot pins engineered to sustain high-cycle, off-center stress without elastic yielding.
| Technical Category | Engineering Keys | Standard Reference | Gradin Bespoke (ETO Options) |
| I. Performance | Rated Payload Capacity | 5,000 kg – 10,000 kg | 80,000 kg (Scalable to 150,000kg+) |
| Positioning Accuracy | ± 30 mm | Sub-Millimeter Calibration (± 1 mm) | |
| Synchronized Velocity | 0.05 m/s | High-Torque (0.10 – 0.25 m/s+) | |
| II. Structural | Scissor Architecture | Rolled Plate Steel | FEA-Optimized High-Yield Alloy Box |
| Actuation System | Basic Hydraulic Gear | Servo-Hydraulic / Multi-Cylinder Sync | |
| Surface Protection | Industrial Paint | C5-M Marine / Stainless / Anti-Static | |
| III. Intelligence | Control Architecture | Siemens S7-1500 | Industry 4.0 / 5G Smart Integration |
| Handshake Protocol | Manual I/O Signals | Profinet / EtherCAT / TCP-IP | |
| Feedback Mechanism | Limit Switches | Absolute Encoders / Laser Rangefinders | |
| IV. Compliance | Risk Mitigation | Velocity Fuse | Active SIL 3 / Redundant Safety Loop |
| Global Standards | Local Codes | OSHA / ASME B20.1 / ISO 13849 |
Operating a Gradin Bespoke Synchronous Scissor Lift at the 80T–150T scale introduces extreme structural stress, particularly during the eccentric loading phase of heavy stamping dies or industrial powertrain modules. Standardized scissor lifts often suffer from structural “shudder” and catastrophic mast deflection when the center of gravity shifts. Our H-Series systems utilize advanced Finite Element Analysis (FEA) to optimize the structural chassis specifically for high-tonnage dynamic load absorption. We utilize high-yield, box-section alloy steel for the primary scissor arms, ensuring absolute structural rigidity even when the load is concentrated at the platform edges. This structural stiffness neutralizes the harmonic resonance common in light-duty lifts, preserving the fatigue life of the entire assembly over decades of 24/7 operation in the most demanding manufacturing environments.
The success of a 150T vertical node depends on the perfect equilibrium of the actuation cylinders. Standardized hydraulic systems often suffer from “cylinder lag” or uneven ascent caused by pressure imbalances. The Gradin Bespoke Synchronous Scissor Lift bypasses these mechanical failures through a Closed-Loop Servo-Hydraulic Architecture integrated natively into our drive logic. Utilizing the Siemens S7-1500 PLC suite, the system achieves sub-millimeter deck alignment (±1mm) across the entire platform. By monitoring real-time pressure and absolute encoder feedback, the system automatically adjusts fluid flow in milliseconds to compensate for uneven load distribution. This results in a seamless vertical artery that ensures a “Zero-Bump” transition for high-value cargo and automated transit shuttles.
The H-Series functions as more than a vertical transporter; it is an intelligent data node within your facility’s digital nervous system. It is designed for seamless native integration with modern Manufacturing Execution Systems (MES). Through Profinet, EtherCAT, or 5G connectivity, the system facilitates a real-time data handshake, reporting carrier occupancy, motor torque profiles, and cylinder pressure directly to your control hub. To ensure maximum uptime in high-stakes facilities, integrated vibration sensors track the “health signature” of the hydraulic seals and mechanical pivot bushings. This Predictive Maintenance Monitoring identifies component wear before it results in unplanned downtime, transforming maintenance from a reactive task into a scheduled, data-driven strategy for mission-critical heavy-load logistics.
In automotive manufacturing, moving 80T stamping dies between floor levels requires absolute structural stability and perfectly level docking. The Gradin Bespoke Synchronous Scissor Lift provides the required rigidity to handle these high-density loads without platform deflection. Its sub-millimeter leveling ensures that automated die-changing carts can roll across the threshold with zero positional error, protecting the high-value tooling from kinetic shock during the transfer process and maintaining the high-flux cadence of the press line.
Vertical transit and orientation of oversized aerospace wing sections (scalable up to 150T+) require a vibration-free vertical link and precise micro-adjustment capabilities. The bespoke H-Series utilizes specialized soft-start/stop dynamics and vibration-dampened mounts. This ensures that sensitive internal structures are never subjected to harmonic resonance or sudden G-force changes during vertical indexing, making it an ideal choice for high-precision aerospace assembly floors where structural integrity is non-negotiable.
Moving high-density steel coils across multi-level processing plants demands extreme point-load resilience and 100% continuous duty cycles. The Gradin Bespoke Synchronous Scissor Lift is engineered with FEA-optimized structural decks designed to handle concentrated point loads at any location on the platform. By eliminating the deflection inherent in standard lifts, the H-Series provides a reliable vertical artery that sustains non-stop production flow even in the most demanding industrial environments, ensuring the longevity of the structural masts and the facility’s floor-slab.
Redundant Engineering as the Absolute Engineering Priority
Safety in high-tonnage vertical logistics—especially where AMRs and human operators interface with 150T+ automated platforms—is the core of our engineering mandate. The Gradin Bespoke Synchronous Scissor Lift exceeds international regulatory standards through a multi-layered redundancy loop:
Active SIL 3 Risk Mitigation: We integrate ultra-fast pressure-sensing valves and secondary mechanical anti-fall cams that engage guide rails instantly if any deviation in velocity or synchronization is detected between the hydraulic cylinders.
Perimeter Safety Interlocks: Every system is designed with full-height safety bellows or shaft enclosures, electronically interlocked with the ASME B20.1 safety PLC logic to ensure zero operator access during transit.
Fail-Safe Hydraulic Redundancy: Dual-channel electromagnetic safety valves and redundant power units provide a 200% safety margin. These engage instantly during an E-stop or power loss, securing the heavy-capacity platform and protecting the facility infrastructure from vertical drift or catastrophic failure.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
