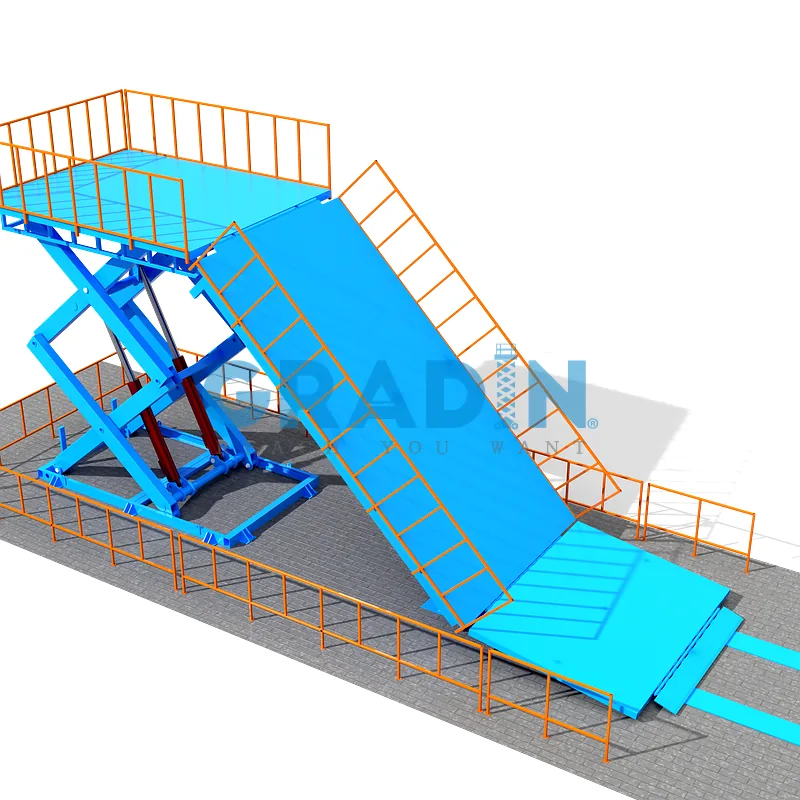

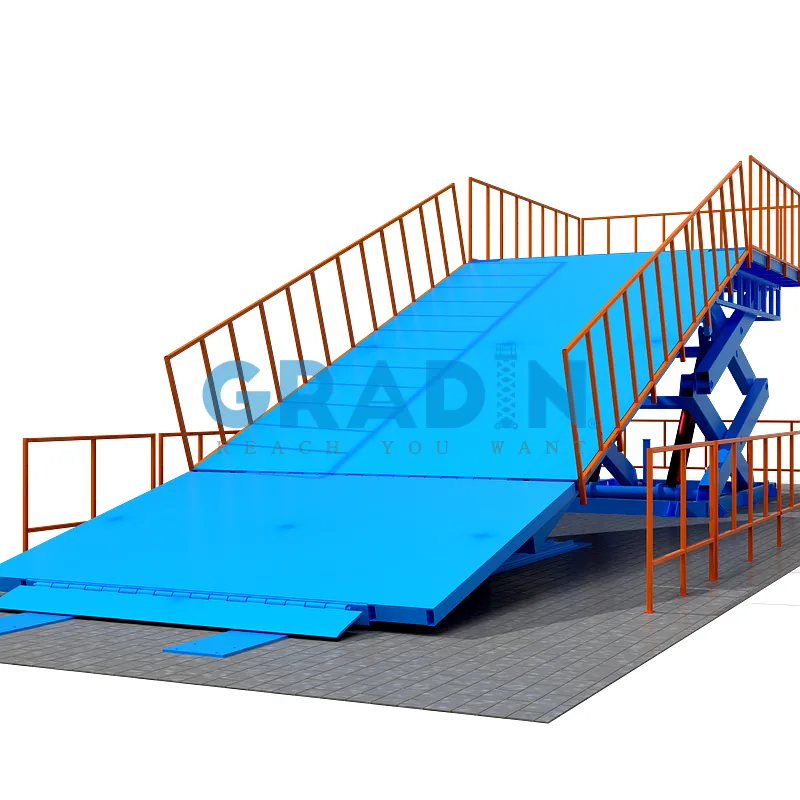

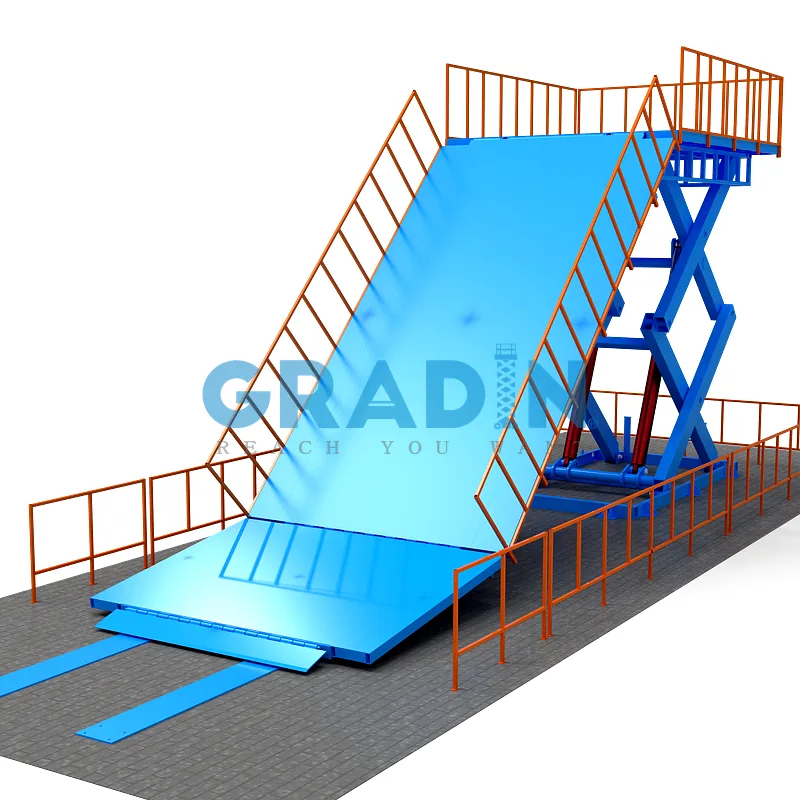

This Tilting Scissor Lift acts as a multi-axis positioning station designed to optimize ergonomic access and material orientation in heavy assembly processes. Built by Gradin as a custom engineered-to-order (ETO) solution, the system integrates a robust scissor lifting mechanism with a high-torque tilting platform, allowing for simultaneous height adjustment and angular rotation up to 90 degrees. Engineered to withstand high-cycle operation in 24/7 production environments, this Tilting Scissor Lift eliminates the need for manual reaching or awkward positioning by bringing the workpiece directly to the operator’s optimal power zone. Whether utilized for welding large chassis, assembling engine blocks, or positioning heavy molds, this system provides a stable, vibration-free platform that enhances both worker safety and throughput efficiency.
| Technical Category | Key Parameters | Standard Reference | Gradin Bespoke Options (ETO) |
| I. Core Performance | Rated Payload Capacity | 2,000 kg (2 Tons) | Scalable 500kg to 20,000kg (20T) |
| Vertical Travel (Stroke) | 1,200 mm | Bespoke Vertical Stroke up to 3,500 mm+ | |
| Tilting Angle Range | 0° – 45° (Standard) | Fully Bespoke 90° or Multi-Axis Tilt | |
| Positioning Accuracy | ± 10 mm | High-Precision Leveling (± 2 mm) | |
| II. Structural & Material | Scissor Arm Design | Plate Steel | FEA-Optimized Box Section High-Tensile Steel |
| Platform Surface | Smooth Steel | Turntable / Rollers / Jigs / Non-Slip Rubber | |
| Safety Protection | Trip Bars | Full PVC Bellows / Steel Safety Curtains | |
| Pivot Engineering | Hardened Pins | Bespoke Oversized Bearings for Eccentric Loads | |
| III. Control & Logic | Drive System | Hydraulic Power Unit | Redundant Dual-Cylinder Logic Optional |
| Control System (PLC) | Handheld Pendant | Siemens S7-1500 / Profinet / EtherCAT | |
| Valve Technology | On/Off Solenoid | Advanced Proportional Hydraulic Valves | |
| System Integration | Standalone | WMS / MES / Robotic Cell Handshake | |
| IV. Environment & Safety | Operating Temperature | -10°C to +40°C | Cleanroom or Explosion-Proof (ATEX) Versions |
| Safety Standards | CE / ISO 12100 | Compliance with OSHA / ASME / AS3000 | |
| Emergency Measures | Descent Valve | Anti-Burst Safety Valves / Redundant Power |
Gradin Bespoke Tilting Scissor Lift FEA-Validated Structural Integrity
When a heavy load is tilted at height, the center of gravity shifts drastically, creating massive lateral stress on the scissor arms and base frame. Every Gradin Bespoke Tilting Scissor Lift undergoes rigorous Finite Element Analysis (FEA) during the design phase to ensure absolute structural stability.
Bending Moment Management: We utilize reinforced box-section steel engineered to handle these shifting load dynamics.
Zero-Deflection Pivotry: Oversized pivot pins and hardened bushings prevent structural fatigue during high-frequency cycles.
Stability First: This engineering-first approach ensuring the platform remains perfectly level and secure even at maximum extension and tilt.
Gradin Bespoke Tilting Scissor Lift Precision Proportional Tilting Logic
Achieving a smooth, jerky-free tilt is essential for operator safety and cargo protection. The Gradin Bespoke Tilting Scissor Lift utilizes advanced proportional hydraulic technology and synchronized cylinder control.
Soft-Start/Stop: Unlike standard lifts that shutter during angular transitions, our system provides a perfectly smooth, vibration-free motion.
Millimeter Accuracy: Integrated Siemens PLC logic allows the operator to adjust the workpiece to the exact ergonomic angle with extreme precision.
Task-Specific Profiles: We can program specific “tilt-to-height” profiles, ensuring the material is always presented at the optimal height for your specific task.
Gradin Bespoke Tilting Scissor Lift Modular Interface and Automation
Modern industrial workstations are defined by their ability to adapt to human operators. Every Gradin Bespoke Tilting Scissor Lift features a bespoke interface design tailored to your specific workpiece.
Custom Tooling: We customize the platform top with integrated turntables, motorized rollers, or specialized clamping jigs.
Ergonomic Optimization: This eliminates the need for manual lifting or awkward reaching, significantly reducing workplace fatigue and injury risk.
MES Connectivity: Through Profinet or EtherCAT, the lift can be integrated into your production network, allowing for automated adjustments based on the specific SKU being processed.
[Automotive] – Ergonomic Component Assembly Positioning
The Gradin Bespoke Tilting Scissor Lift is the premier professional choice for assembly lines where technicians must install complex wiring or interior parts.
Angular Access: By providing precise height and angular adjustment, the lift allows the vehicle chassis to be tilted directly toward the operator.
Surface Protection: We customize these units with non-marking surfaces and soft-touch fixtures to ensure that high-value surface finishes are protected during the assembly process.
[Metal Fabrication] – High-Precision Welding and Fabrication
In the fabrication of heavy industrial gearboxes or turbines, welding in an awkward position can lead to structural defects.
Optimal Weld Position: The tilting function allows the welder to position the workpiece for an optimal “down-hand” weld, improving quality and reducing rework.
Harsh Environment Duty: Our lifts are customized with heat-resistant shielding and anti-splatter coatings, ensuring reliable operation in high-heat welding bays where structural stability is mandatory.
[Logistics & Fulfillment] – Automated Bin Tilting and Picking
In high-volume distribution centers, picking from deep bins can lead to repetitive strain injuries and reduced throughput.
Smart Ergonomics: The Gradin Bespoke Tilting Scissor Lift provides an automated solution for bin tilting at packing stations.
WMS Integration: As the inventory level drops, the bin is automatically raised and tilted to the correct angle via your Warehouse Management System.
High-Frequency Logistics: This ensures total safety compliance and optimizes picking tempo in 24/7 fulfillment environments.
Redundant Safety Architecture and Load-Center Monitoring
Safety in a dual-axis movement environment is our most critical engineering priority.
Hydraulic Fuses: We integrate velocity fuses that lock both the lift and tilt cylinders instantly if a pressure drop is detected.
Active Perimeter Protection: We offer synchronized safety interlocking with perimeter light curtains—the lift will not move if an operator is in the danger zone.
Fail-Safe Redundancy: Our redundant safety-critical holding valves and emergency descent logic ensure that your bespoke ergonomic workstation operates with zero risk to personnel or assets.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
