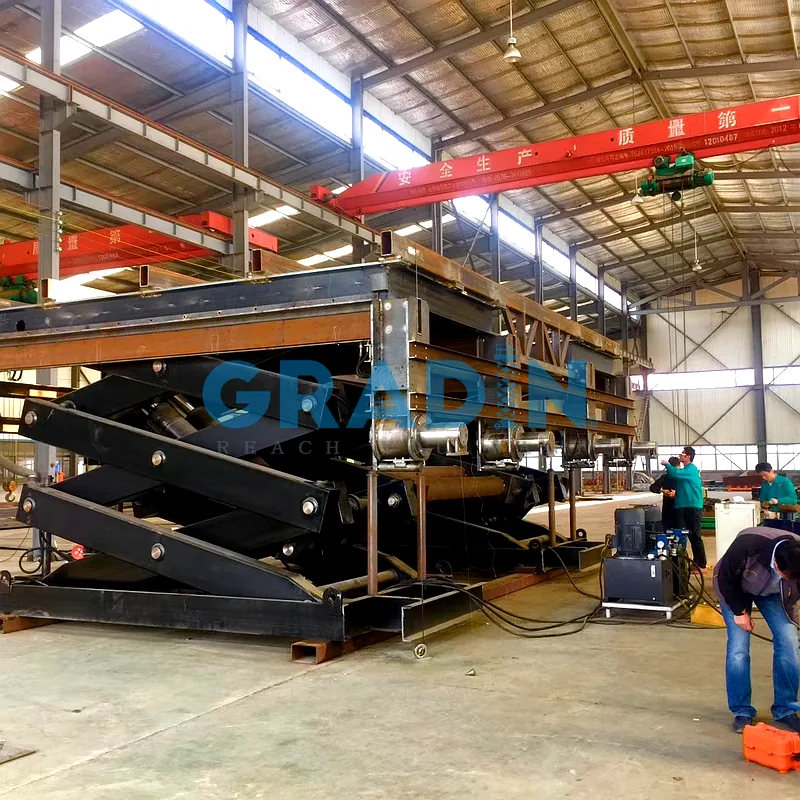

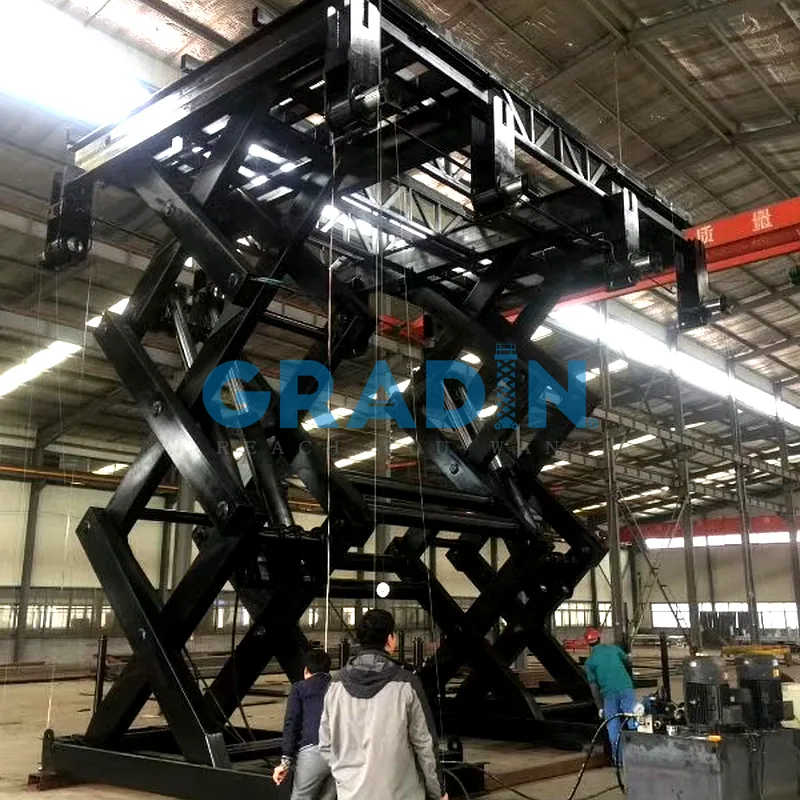

This Ultra-Heavy Scissor Lift acts as a high-capacity vertical transit station for the most demanding material handling challenges in heavy industry. Built by Gradin as a custom engineered-to-order (ETO) solution, the platform is structurally reinforced to support payloads exceeding 100 tons while maintaining absolute deck leveling accuracy. Designed to withstand the rigorous duty cycles of 24/7 manufacturing, the system features oversized pivot pins and high-torque hydraulic cylinders to ensure a smooth, vibration-free lift even under eccentric loading conditions. Whether integrated into a steel mill’s production flow, an aerospace assembly bay, or a heavy equipment testing facility, this Ultra-Heavy Scissor Lift provides a stable and repeatable vertical bridge that eliminates the logistical constraints of handling massive components.
| Technical Category | Key Parameters | Standard Reference | Gradin Bespoke Options (ETO) |
| I. Core Performance | Rated Payload Capacity | 10,000 kg (10 Tons) | Scalable 10,000kg to 100,000kg (100T) |
| Vertical Travel (Stroke) | 1,500 mm | Bespoke Vertical Stroke up to 12,000 mm+ | |
| Raising/Lowering Speed | 10 – 20 mm/s | Adjustable Proportional Speed Control | |
| Positioning Accuracy | ± 10 mm | High-Precision Leveling (± 2 mm) | |
| II. Structural & Material | Scissor Arm Design | Solid Plate Steel | FEA-Optimized High-Tensile Box Section |
| Platform Top Surface | Smooth Steel | Turntable / Rollers / Jigs / Non-Slip | |
| Safety Protection | Trip Bars | PVC Bellows / Steel Curtains / Fencing | |
| Pivot Engineering | Hardened Pins | Bespoke Oversized Bearings for Heavy Duty | |
| III. Control & Logic | Drive System | Hydraulic Power Unit | Redundant Dual-Cylinder Logic Optional |
| Control System (PLC) | Push Button | Siemens S7-1500 / Allen Bradley / Profinet | |
| Positioning Feedback | Limit Switches | Laser Rangefinder / Absolute Encoders | |
| System Connectivity | Standalone | WMS / MES / Fully Automated Docking | |
| IV. Environment & Safety | Operating Temperature | -10°C to +40°C | Cold Storage (-30°C) or High Heat (+80°C) |
| Safety Standards | CE / ISO 12100 | Compliance with OSHA / ASME / AS3000 | |
| Emergency Measures | Descent Valve | Anti-Burst Safety Valves / Redundant Power |
FEA-Validated Structural Integrity for Extreme Loads
Lifting a 100-ton industrial load requires a structure that can manage massive bending moments and torsional stress without deflection.
FEA Stress Simulation: We analyze every pivot point to ensure absolute safety under eccentric or off-center loading.
High-Tensile Box Sections: Scissor arms are engineered from premium steel to prevent fatigue during high-frequency industrial cycles.
Zero-Deflection Pivotry: Oversized pivot bearings and hardened pins ensure the platform remains perfectly level at full extension.
Precision Hydraulic Synchronization and Leveling Logic
Maintaining a level platform is critical when integrating with automated production lines or high-value assembly tasks.
Proportional Hydraulics: Advanced valve technology provides a soft-start and soft-stop transition, protecting your high-value cargo.
Siemens PLC Integration: We utilize Siemens S7-1500 logic to adjust the lifting stroke in real-time for millimeter-perfect docking.
Millimeter Accuracy: Laser-based feedback loops ensure a leveling accuracy of up to ±2mm under maximum tonnage.
Modular Power and Industry 4.0 Connectivity
Modern manufacturing demands that material handling equipment talks to the rest of the factory ecosystem.
Autonomous Handshake: Supports Profinet or EtherCAT connectivity for integration with your MES or WMS systems.
WMS Real-Time Data: The lift provides constant feedback on height, load weight, and system diagnostics for predictive maintenance.
AGV Compatibility: Can be configured to autonomously receive cargo from AGVs and raise it to precise assembly heights.
[Automotive] – Heavy Die Handling & Press Integration
The Challenge: Massive stamping dies require precise, pit-less vertical positioning for tool changes.
Gradin Solution: Our low-profile, high-capacity platforms feature motorized roller tops bespoke to your die geometry, improving Quick Die Change (QDC) efficiency.
[Aerospace] – Precision Component Docking & Fuselage Assembly
The Challenge: Handling sensitive fuselage sections requires zero-vibration vertical movement and absolute accuracy.
Gradin Solution: Engineered with soft-start drive logic and non-marking surfaces to position high-value aerospace components without any structural risk.
[Energy & Power] – Industrial Turbine & Generator Maintenance
The Challenge: Lifting massive turbines in restricted maintenance bays with a high safety factor and redundant power.
Gradin Solution: Compact, FEA-reinforced lifts customized with weather-resistant shielding and anti-burst safety valves for reliable operation in power plant sites.
Redundant Safety Architecture and Load-Center Monitoring
Safety in high-tonnage vertical movement is our most critical engineering priority.
Hydraulic Failsafe: Every unit is integrated with velocity fuses that lock the platform instantly if a pressure drop is detected.
Active Perimeter Security: We offer synchronized safety interlocking with perimeter light curtains and mechanical anti-fall safety cams.
Zero-Risk Operation: Redundant safety-critical holding valves ensure that your custom vertical solution protects your personnel and facility assets during every cycle.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
