A specialized VRC engineered to neutralize extreme point-loading and fluid-dynamic shifts inherent in oversized vessel transport. Standard lifts risk structural buckling and platform racking under concentrated tank mass; Gradin solves this with FEA-validated (Finite Element Analysis) high-yield platforms and Siemens S7-1500 logic that executes surge-suppressing acceleration ramps to eliminate fluid oscillation.
Kinetic Capacity: Engineered to neutralize 150T+ eccentric bending moments during off-center loading.
Precision Docking: Sub-millimeter position-holding with ±1mm zero-vibration floor alignment for seamless tank transfer.
Structural Integrity: Multi-point synchronized hydraulic actuators paired with reinforced box-masts prevent carriage deflection.
| Technical Category | Engineering Keys | Standard Reference | Gradin Bespoke (ETO Options) |
| I. Performance | Rated Load Path | 5,000 kg – 10,000 kg | 60,000kg to 150,000kg+ (Heavy-Industrial) |
| Positioning Accuracy | ± 50 mm | Sub-Millimeter Calibration (± 1 mm) | |
| Vertical Velocity | Fixed 0.05 m/s | Synchronized (Up to 0.25 m/s+) | |
| II. Structural | Lifting Architecture | 2-Post Basic | FEA-Optimized Quad/Hex Chassis |
| Surface Protection | Standard Paint | C5-M Marine Grade / Anti-Static | |
| Actuation Medium | Single Cylinder | Multi-Ram Servo-Hydraulic Synchronization | |
| III. Intelligence | Control Nucleus | Siemens S7-1500 | Profinet-Native / 5G Mesh Integration |
| Handshake Protocol | Discrete I/O | Full-Stack WMS / MES / AGV Interfacing | |
| Diagnostic Depth | Basic Fault Codes | Digital Twin / Predictive Wear Sensors | |
| IV. Compliance | Risk Mitigation | Velocity Fuse | Active SIL 3 / Redundant Safety Loop |
| Global Norms | Local Codes | ASME B20.1 / ISO 13849-1 / OSHA |
Operating a Gradin Bespoke Heavy Tank Lift at the 60T to 150T scale introduces non-linear structural challenges, specifically regarding the eccentric loading of industrial vessels. Unlike standard cargo lifts, industrial tanks often possess asymmetric weight distributions due to internal baffles, fluid residues, or irregular mounting brackets. Generic vertical lifts often suffer from catastrophic mast deflection or “carriage-dip” when these high-inertia footprints enter the platform. Gradin bypasses these mechanical failures through advanced Dynamic FEA Modal Analysis. Our team calculates the cumulative torsional stress generated as the load center migrates during high-speed vertical indexing. By utilizing high-yield box-section alloy steel for the primary lifting carriage, fitted with synthetic vibration-dampening nodes, we ensure the vertical pulse remains purely axial. This architectural fusion preserves the structural life of your facility’s floor-slab while maintaining absolute verticality under 150T dynamic loads.
The success of an elite heavy-vessel node depends on the precision of the leveling phase to prevent cargo shifting or fluid-sloshing harmonics. The Gradin Bespoke Heavy Tank Lift bypasses the pressure-induced “sag” inherent in traditional hydraulic lifts through a Closed-Loop Servo-Hydraulic Proportional Architecture. Utilizing the Siemens S7-1500 PLC suite integrated with high-resolution laser rangefinders and absolute encoders, the system monitors the horizontal equilibrium of the deck 500 times per second. By monitoring real-time pressure transducers on every individual lifting ram, the system automatically adjusts fluid-velocity in milliseconds to compensate for asymmetrical load centers. This results in a ±1mm flush transition, critical for automated assembly hubs where robotic undercarriage scanners or automated die-changing carts demand a zero-bump threshold to avoid sensor trip-outs.
As a native data gateway, every Gradin Bespoke Heavy Tank Lift functions as an intelligent industrial asset within your facility’s digital nervous system. We integrate multi-axis vibration sensors and hydraulic thermal profilers directly into the actuation Nucleus. Through Profinet, EtherCAT, or 5G connectivity, the system reports its operational “health signature” directly to your Manufacturing Execution System (MES). This facilitates Predictive Maintenance Monitoring (CBM), where the system autonomously anticipates cylinder seal degradation, oil-viscosity drift, or guide-rail friction anomalies before they manifest as unplanned downtime. This level of transparency is essential for 24/7 mission-critical operations, allowing your maintenance team to schedule service based on actual component fatigue rather than arbitrary time intervals, guaranteeing 99.9% vertical throughput availability.
Vertical transit of high-density nuclear pressure vessels or cryogenic storage tanks demands extreme vibration neutralization and environmental sterility. The Gradin Bespoke Heavy Tank Lift provides a stabilized vertical assembly link, engineered with vibration-isolated carrier mounts and oil-free actuation options. The structural masts are calculated to absorb acoustic resonance during vertical indexing, making it the superior choice for high-precision energy assembly floors where structural integrity and component safety are non-negotiable requirements for 24/7 continuous duty cycles. For related high-capacity rotation, consider our Gradin Bespoke Coil Tilter to manage multi-axis vessel reorientation.

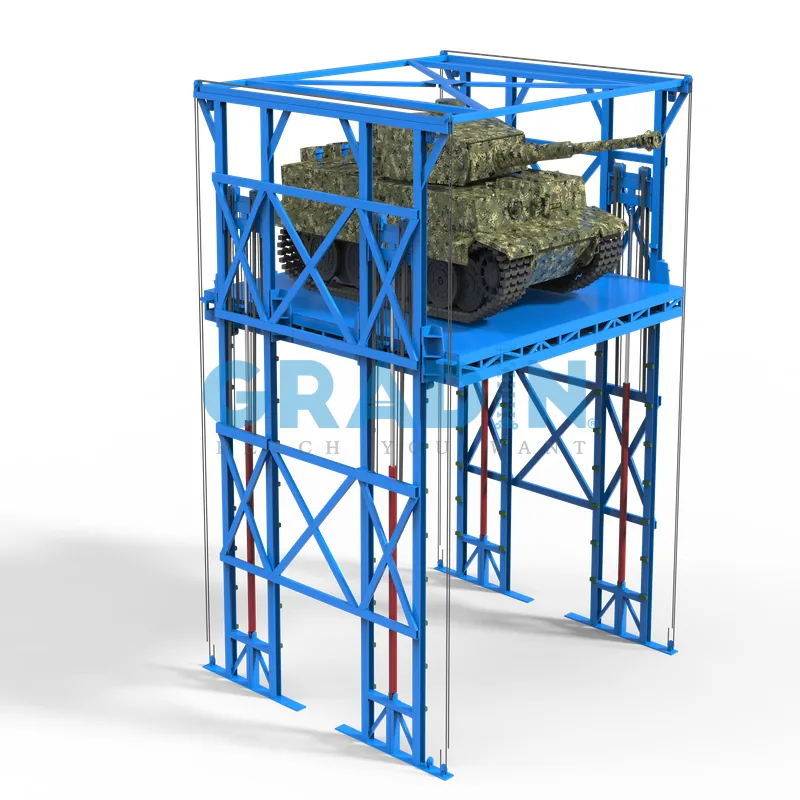

In heavy military maintenance hubs, moving 60T main battle tanks or armored personnel carriers between floor levels requires absolute positional repeatability. The Gradin Bespoke Heavy Tank Lift is engineered with reinforced decks that handle concentrated track-loading and high-torque dynamic braking. Its sub-millimeter leveling ensures that automated robotic scanners or repair arms can interface with the vehicle chassis on the deck with zero positional error, ensuring the assembly or repair cadence remains uncompromised during multi-level material movement.
Moving high-density chemical storage tanks or raw material totes across multi-level assembly plants demands extreme point-load resilience. The custom Gradin Bespoke Heavy Tank Lift is engineered with FEA-optimized structural masts designed to handle specific load-center shifts at any station. By eliminating the mechanical fatigue inherent in standard elevators, the high-yield alloy masts provide a reliable vertical artery that sustains non-stop production flow even in harsh, salt-heavy environments, ensuring the longevity of the facility’s floor infrastructure while meeting strict SIL 3 safety protocols for heavy material handling.
Safety in 150T+ automated vertical logistics is the core of the Gradin Bespoke Heavy Tank Lift design mandate. We exceed international regulatory standards through a multi-layered redundancy loop:
Active SIL 3 Risk Mitigation: We integrate ultra-fast pressure-sensing valves and redundant SICK Safety Scanners on every floor station. Any hydraulic deviation or obstruction triggers a Category-0 stop in milliseconds.
Fail-Safe Mechanical Arrestors: Secondary anti-fall cams engage the guide rails instantly in the event of drive-tension loss, ensuring the 150T platform remains static even during a total power failure, meeting the highest standards of ASME B20.1 compliance.
Perimeter Safety Interlocks: Full-height shaft enclosures and high-speed power doors are electronically interlocked with the safety PLC logic to ensure zero operator access during the vertical pulse, meeting all global ISO 13849-1 and OSHA directives for heavy industrial elevators.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
