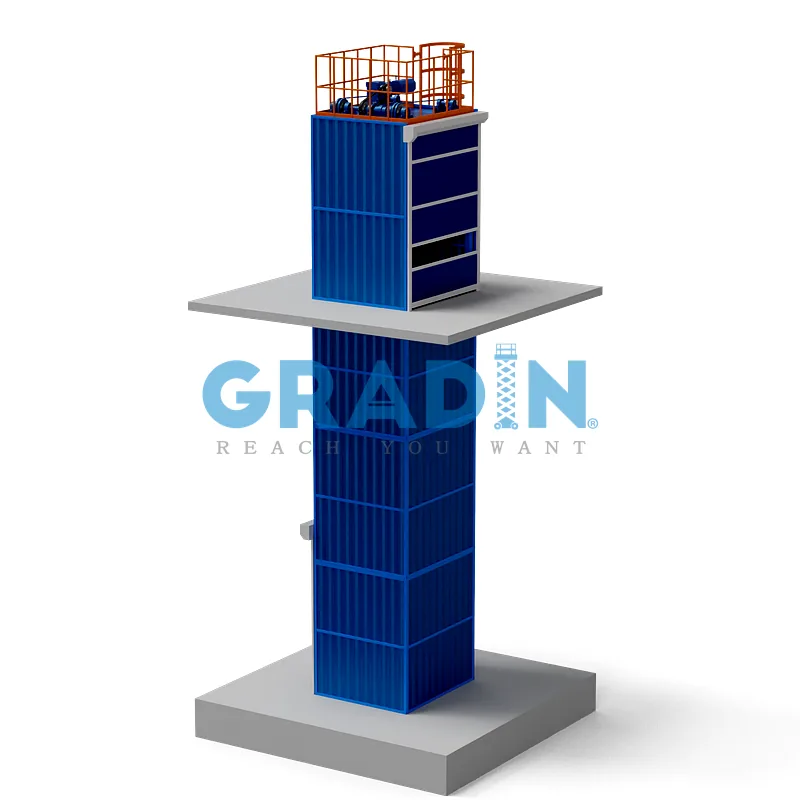

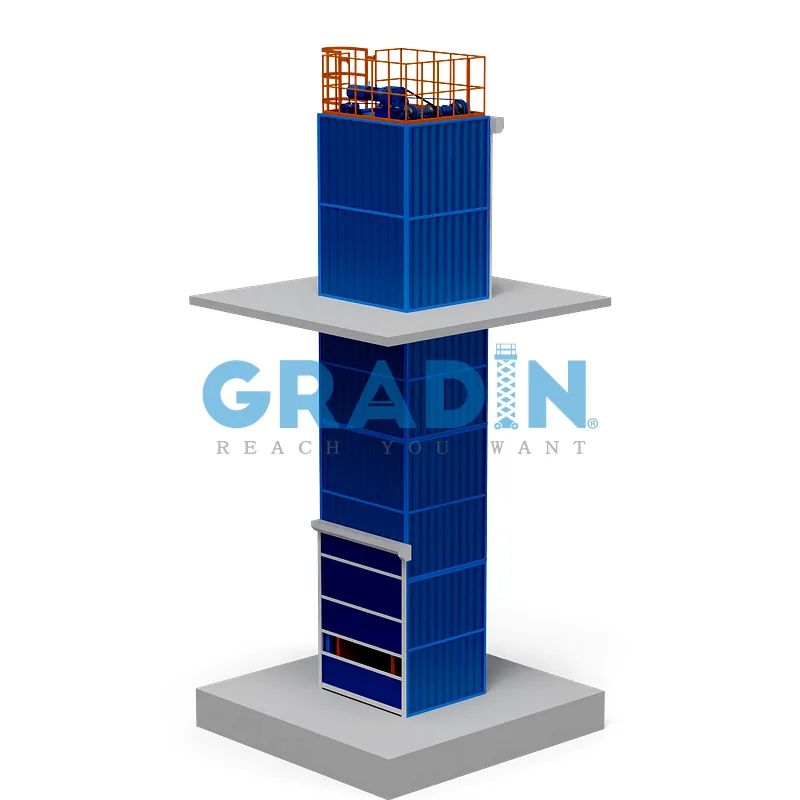

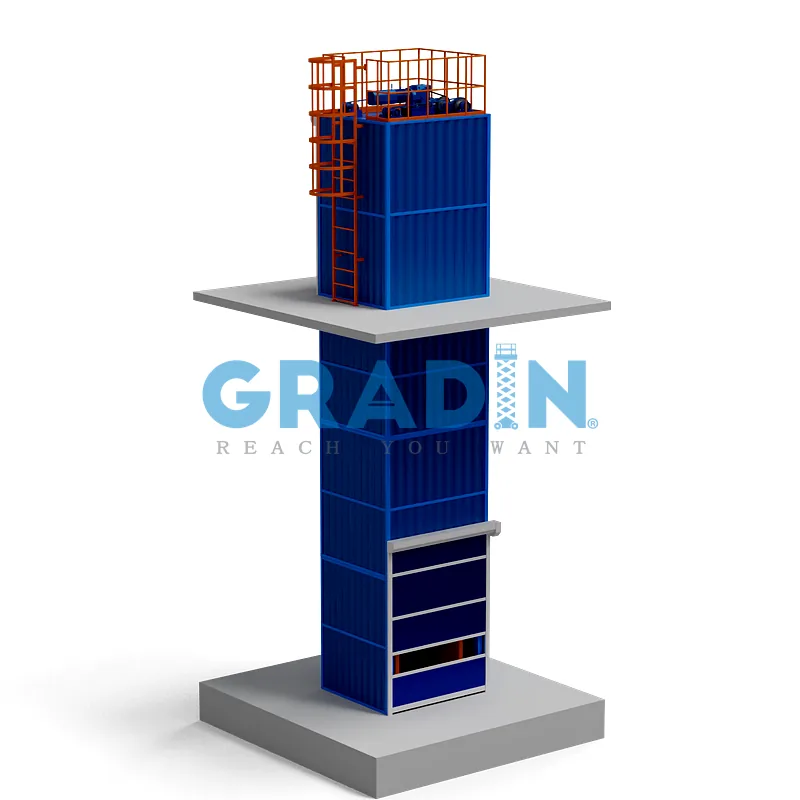

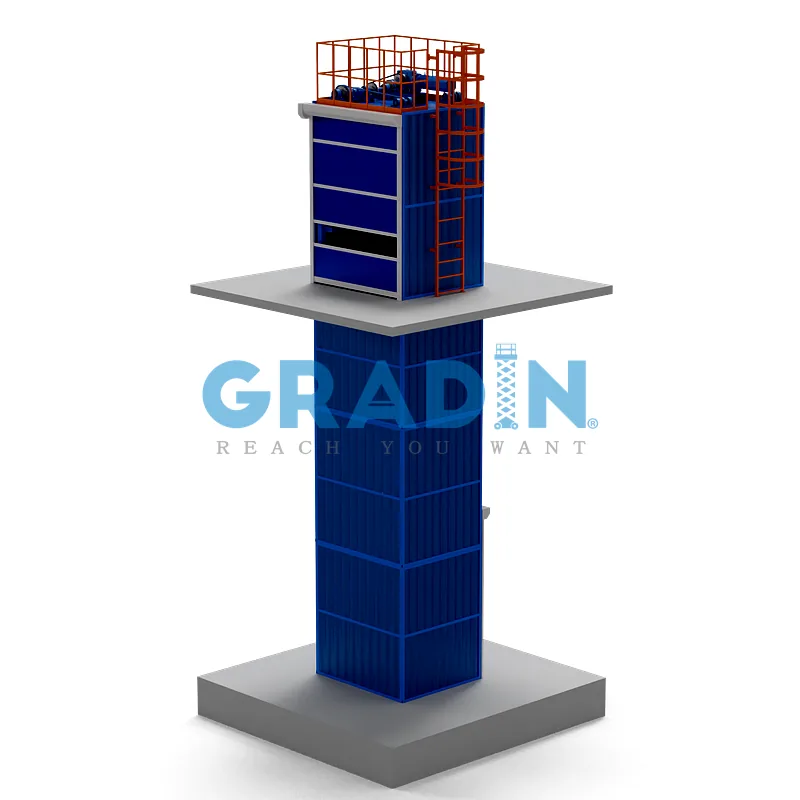

This Standard VRC is a high-performance vertical freight lift designed for safe and efficient material transfer between floor levels. It features a fully clad enclosure that provides superior protection for both the cargo and personnel, making it ideal for busy factory environments or areas requiring dust and debris control. Engineered with a reliable mechanical drive system, this unit is highly customizable in terms of platform size, travel height, and loading configurations, ensuring a seamless fit into your facility’s existing workflow and safety protocols.
| Parameter | Unit | Standard Range | Customization Options |
| Rated Load Capacity | kg | 500 / 1,000 / 3,000 | Engineered to specific freight requirements |
| Max. Lifting Height | mm | 3,000 – 20,000 | Tailored to multi-story building heights |
| Platform Size | mm | 1,500 x 1,500 | Fully customized to cargo or pallet footprint |
| Travel Speed | m/min | 4 – 8 | VFD-adjustable for smooth start and stop |
| Enclosure Material | – | Corrugated Steel | Perforated mesh, sandwich panels, or glass |
| Drive Mechanism | – | Electric Motor / Chain | Heavy-duty chain or wire rope drive systems |
| Control Logic | – | Relay / PLC | Integration with factory automation systems |
| Landing Gates | – | Manual Swing Gates | Automated vertical acting or rolling doors |
| Power Supply | V/Hz | 380V / 50Hz | Global voltage compatibility (220V – 600V) |
| Safety Devices | – | Interlocks / Safety Cams | Redundant sensors and emergency stop logic |
Fully Clad Protective Enclosure: Features a high-durability metal cladding system that fully encloses the lift shaft, preventing unauthorized access and protecting materials from dust or external environmental factors.
Top-Mounted Drive Assembly: Engineered with a robust mechanical drive system positioned at the top of the structure, maximizing floor space and providing easy access for routine motor and gearbox maintenance.
High-Stability Lifting Mechanism: Utilizes industrial-grade chains or wire ropes with a reinforced carriage frame to ensure smooth, vertical travel and precise floor-level alignment under full load conditions.
Enhanced Safety Interlocking: Equipped with electro-mechanical interlocks on all access gates, ensuring the lift cannot operate unless all doors are securely closed and locked.
Modular Structural Design: The frame and enclosure are designed for modular assembly, allowing for rapid installation and easy customization to fit specific building heights and footprint constraints.
Emergency Braking System: Includes an instantaneous-acting safety cam mechanism that locks the carriage to the guide rails in the event of a drive medium failure, ensuring total operator and cargo safety.
High-Duty Cycle Performance: Designed for continuous operation in demanding industrial environments, featuring wear-resistant components and self-lubricating guide systems.
Multi-Story Manufacturing Plants: Facilitates the movement of raw materials, work-in-progress, and finished goods between production floors, ensuring a continuous supply chain within the facility.
Industrial Mezzanine Access: Provides a safe and efficient way to transport heavy palletized loads or bulky items to and from elevated mezzanine storage areas.
Dust-Sensitive Production Areas: The full enclosure helps isolate the lift shaft, making it suitable for industries that require a level of dust control or protection from airborne contaminants.
Warehouse & Logistics Hubs: Integrated into vertical storage strategies to maximize floor space by utilizing the full height of the building for material transit.
Automotive Parts Distribution: Used by Tier 1 and Tier 2 suppliers for the vertical handling of heavy automotive components, sub-assemblies, and specialized tooling.
Food & Pharmaceutical Facilities: Can be customized with specific cladding materials and finishes to meet safety and organizational hygiene standards for non-direct contact material handling.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
