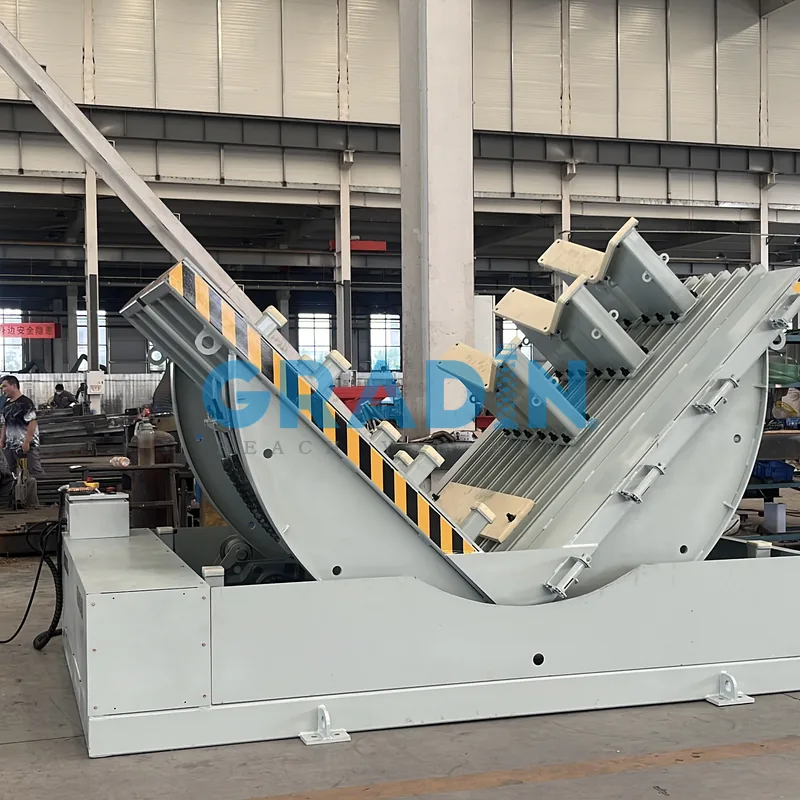

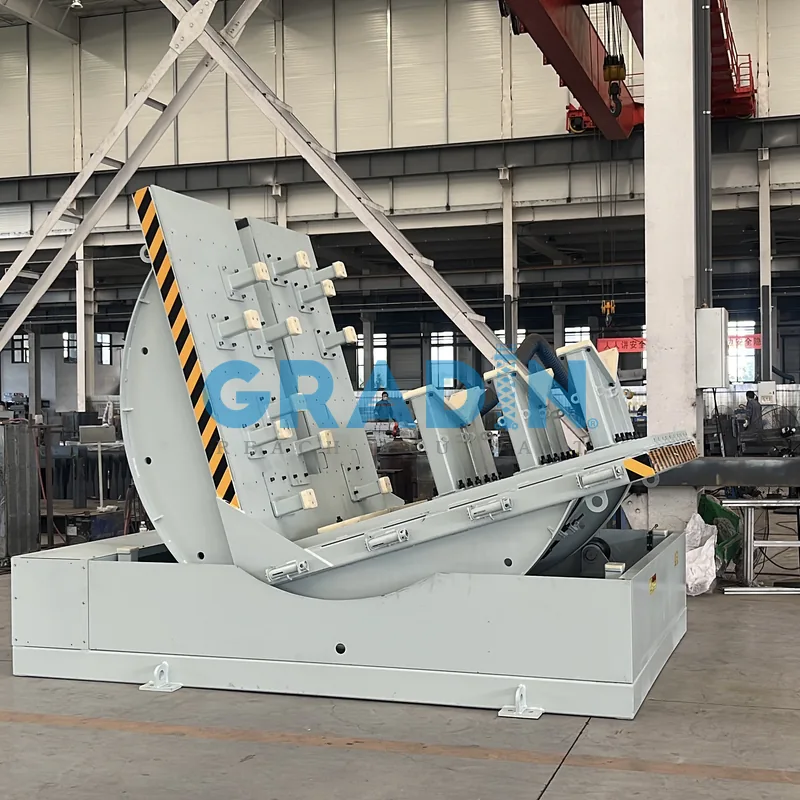

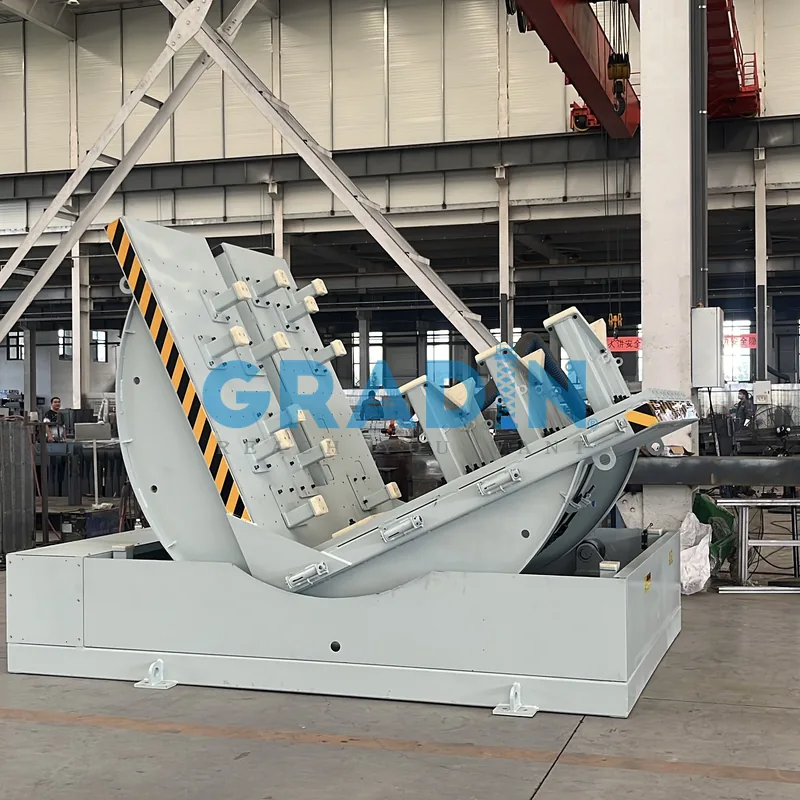

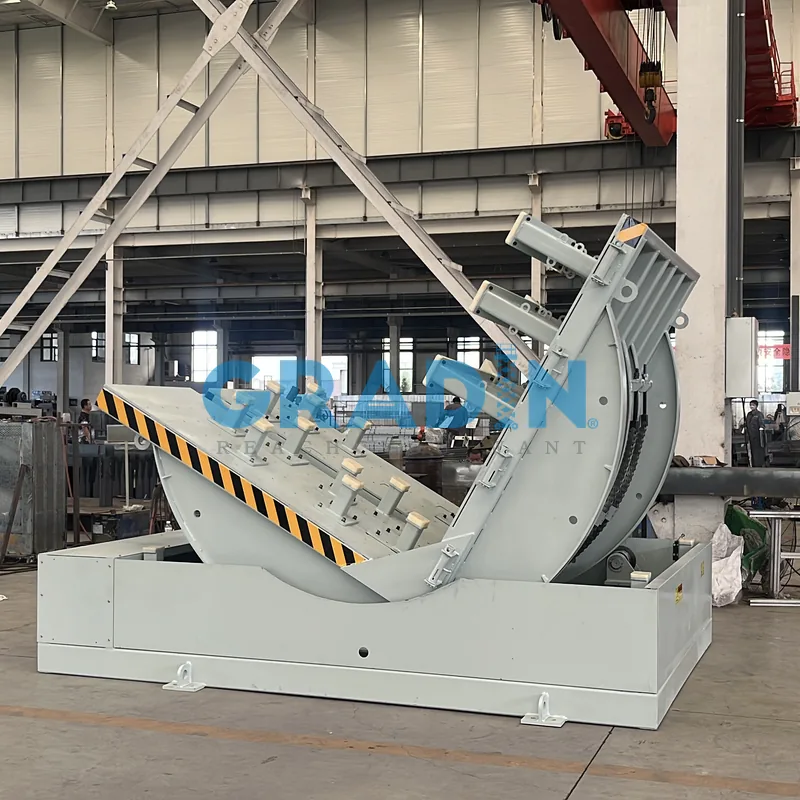

In the high-precision world of automotive stamping, a 10-ton die (mold) is more than just steel—it is a multi-million dollar asset. A leading automotive component manufacturer faced a critical bottleneck: their existing flipping process was erratic, causing micro-vibrations that threatened the calibration of sensitive tooling. Gradin engineered a Bespoke 10-Ton Hydraulic 90° Upender, delivering a “Zero-Impact” flipping solution that guarantees both operator safety and asset integrity.
The client’s production floor was suffering from “Operational Anxiety.” Their legacy mechanical flipping methods were characterized by:
Kinetic Shock: Sudden movements during the 45-degree transition point, which risked internal hairline fractures in expensive molds.
Regulatory Pressure: Australia’s strict WH&S standards meant any manual intervention in the 10-ton “Crush Zone” was an unacceptable liability.
Efficiency Drain: A process that should take 2 minutes was taking 15 minutes due to excessive safety precautions and stabilization time.
Gradin redefined the client’s workflow by moving beyond a standard machine to a Bespoke Safety System:
Advanced Proportional Hydraulics: We implemented a custom hydraulic circuit that ensures a soft-start and soft-stop. The motion is so fluid that a coin standing on its edge on the platform would not fall during the 90° transition.

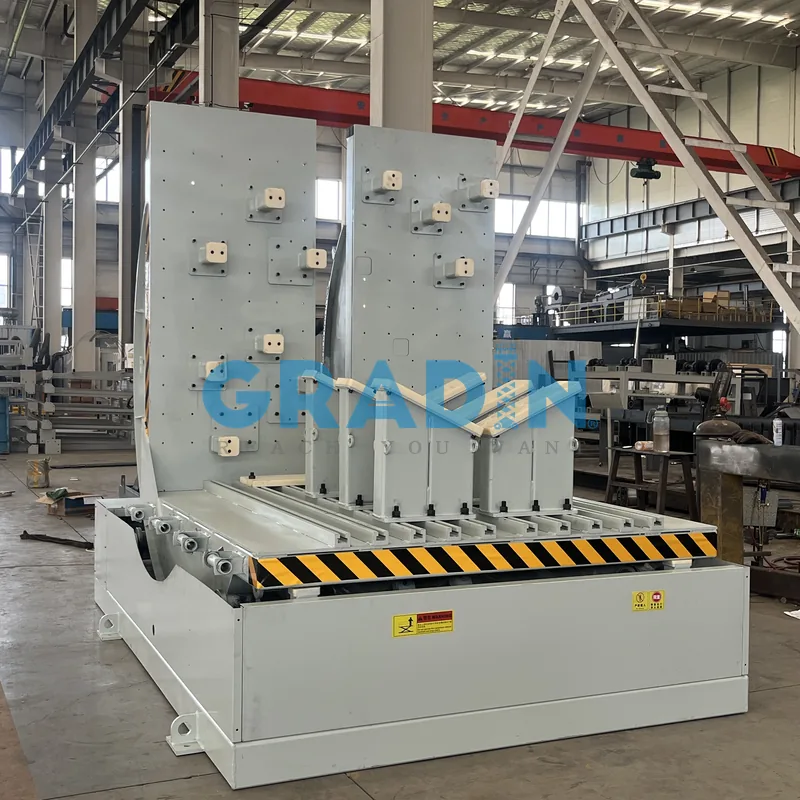

V-Groove / Flat-Bed Hybrid Platform: To accommodate both cylindrical coils and rectangular molds, the platform was custom-machined, providing “Positive Locking” for the load to eliminate any chance of sliding.
The “Safety Shield” Logic: Integrated with dual-hand control stations and perimeter light curtains, the system ensures that the 10-ton force is only unleashed when the environment is 100% secure.
| Feature | Technical Specification |
| Max Loading Capacity | 10,000 kg (10 Metric Tons) |
| Tilting Angle | 0° – 90° (Precision Controlled) |
| Cycle Time | 30 – 50 Seconds (Adjustable) |
| Hydraulic System | Dual-Cylinder Synchronized Drive |
| Safety Compliance | CE / AS 4024 (Australian Safety) / ISO 12100 |
| Structural Build | Reinforced Q345B Carbon Steel |
| Surface Treatment | High-Visibility Safety Yellow / Anti-Slip Coating |
