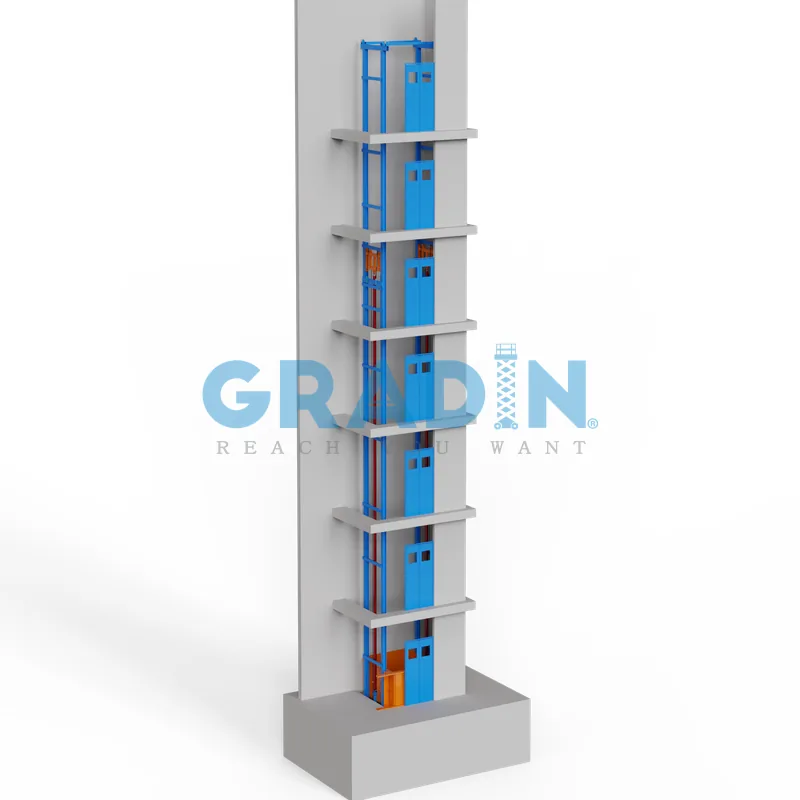

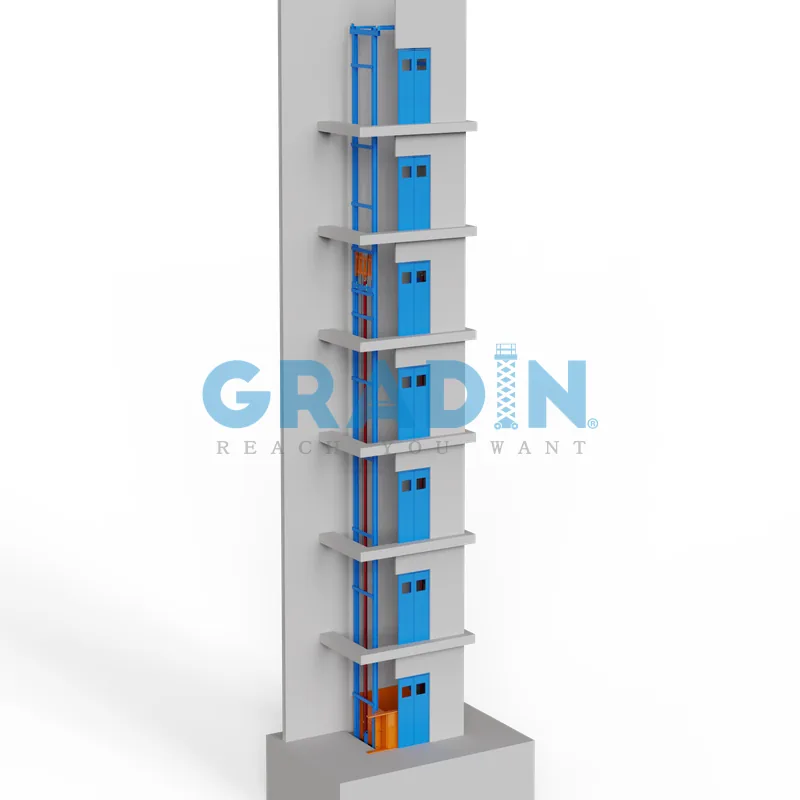

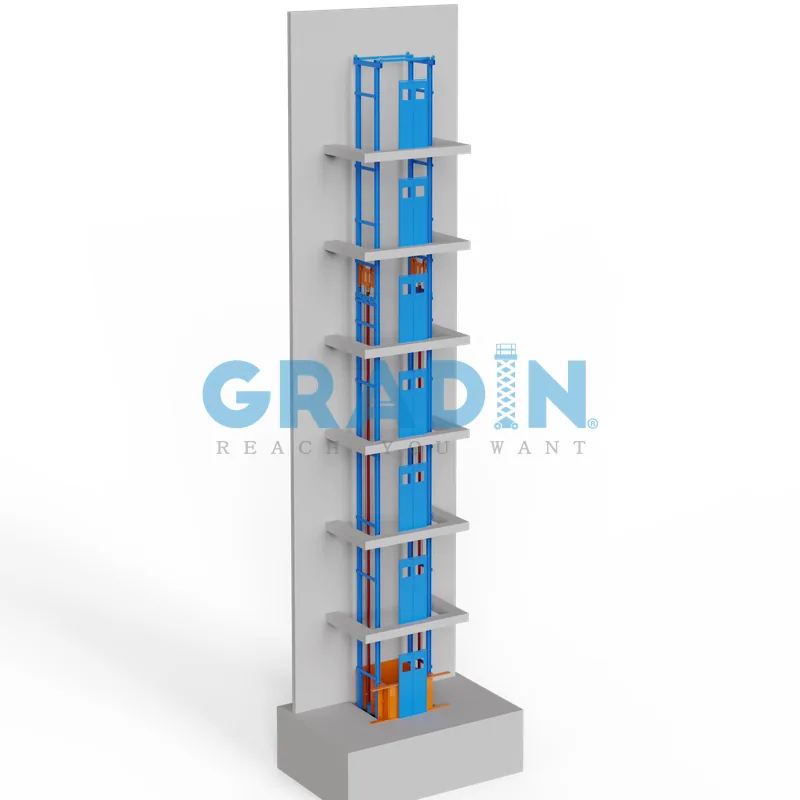

A 7-stop 4-post lift provides an ultra-stable vertical transport spine for high-rise industrial facilities, ensuring rigid platform alignment across seven distinct floor elevations. In extreme-travel applications, standard single-mast or chain-driven lifts suffer from compounding harmonic resonance and significant mechanical media stretch, leading to dangerous leveling drift at higher floors that can cause catastrophic forklift collisions. Gradin engineers these high-rise VRCs with a massive 4-post structural matrix and synchronized hydraulic actuators or high-torque traction drives governed by closed-loop PLC logic. By integrating absolute encoder feedback, the system executes micro-calculated deceleration ramps for each specific landing, neutralizing the dynamic impact of multi-ton payloads regardless of the lift’s vertical position. Every structural mast, carriage frame, and electromechanical interlock array is custom-engineered to your exact floor-to-floor heights, guaranteeing zero-tolerance horizontal stability for continuous, multi-level logistics.
| Technical Category | Engineering Keys | Standard Reference | Gradin Bespoke (ETO Options) |
| I. Performance | Rated Load Path | 1,000 kg – 5,000 kg | Scalable up to 150,000kg (150T+) |
| Stop Configuration | Fixed 2-3 Stops | Bespoke Multi-Stop (7+ Levels Scalable) | |
| Leveling Tolerance | ± 30 mm | Sub-Millimeter Calibration (± 1 mm) | |
| II. Structural | Mast Configuration | 2-Post Cantilever | 4-Post Symmetrical High-Yield Alloy |
| Actuation System | Single Stage | Synchronized Multi-Cylinder Servo-Hydraulic | |
| Surface Protection | Industrial Paint | C5-M Marine Grade / Anti-Static / Stainless | |
| III. Intelligence | Control Nucleus | Siemens S7-1500 | Profinet-Native / 5G Mesh Integration |
| Handshake Protocol | Discrete I/O | Full-Stack WMS / MES / AGV Interfacing | |
| Diagnostic Depth | Basic Alarms | Digital Twin / Predictive Wear Sensors | |
| IV. Compliance | Risk Mitigation | Relay Interlocks | Active SIL 3 / Quad-Channel Redundancy |
| Global Norms | Local Codes | ASME B20.1 / ISO 13849-1 / OSHA |
Operating a Gradin Bespoke 7-Stop 4-Post Lift at the 150T+ scale introduces immense structural complexity. As the vertical stroke increases across seven distinct floor levels, standard lifts suffer from catastrophic “mast-sway” and harmonic oscillation. Gradin bypasses these engineering failures through a symmetrical quad-mast structural architecture, optimized via advanced Finite Element Analysis (FEA). Our team calculates the cumulative torsional stress generated during simultaneous loading and unloading at intermediate levels. We utilize high-yield, box-section alloy steel masts fitted with vibration-dampening synthetic nodes. This structural absolute ensures that even with a 150-ton payload transiting at high-rise extensions, the platform maintains absolute horizontal equilibrium, preserving the fatigue life of the building-integrated guide rails and the facility’s floor-slab over decades of high-frequency operation.
Managing a 7-stop vertical link requires a sophisticated digital pulse to prevent throughput bottlenecks. The Gradin Bespoke 7-Stop 4-Post Lift bypasses the mechanical drift and “pressure-lag” of traditional lifts through a Closed-Loop Servo-Hydraulic Architecture integrated natively into our drive logic. Utilizing the Siemens S7-1500 PLC suite and high-resolution absolute encoders, the system achieves ±1mm floor-leveling accuracy across all seven stations. Our proprietary Dynamic Stacking Logic allows the lift to prioritize floor requests based on real-time sensor data from your WMS, adjusting its vertical velocity to act as a vertical buffer during production surges. This results in a seamless vertical artery where automated pallet-jacks and robotic shuttles transition with zero kinetic impact at any floor level, regardless of the height.
As a native data gateway, every Gradin Bespoke 7-Stop 4-Post Lift is capable of generating a real-time Digital Twin for remote monitoring and diagnostics. We integrate multi-axis vibration sensors and drive-train thermal profilers directly into the control Nucleus. Through Profinet, EtherCAT, or 5G connectivity, the system reports its operational “health signature” directly to your Manufacturing Execution System (MES). This facilitates Predictive Maintenance Monitoring, where the system autonomously anticipates cylinder seal wear, guide-rail friction anomalies, or motor temperature spikes before they manifest as downtime. For high-rise 7-stop applications, this level of data transparency is critical, transforming a complex vertical transporter into an intelligent industrial asset that guarantees 99.9% availability in high-stakes, 24/7 manufacturing environments.
In high-density urban warehouses where land costs demand vertical expansion, moving heavy pallets across seven mezzanine levels is a primary operational hurdle. The Gradin Bespoke 7-Stop 4-Post Lift provides the required throughput capacity to serve all floors within a single structural footprint. Its sub-millimeter leveling ensures that automated robotic fleets can transition from floor to lift with zero latency, effectively tripling the vertical capacity of the facility compared to standard freight elevators. For integrated horizontal flow, consider our Gradin Bespoke Heavy-Duty Transfer Cart to complete the multi-level automation loop.
In modern automotive assembly, moving 50T–100T component kits or stamping dies between non-adjacent production floors requires absolute structural stability. The bespoke S-Series utilizes specialized soft-start/stop dynamics and active stabilizing rails to maintain a perfectly level transit deck across all seven levels. This ensures that sensitive powertrain components or high-precision tooling are never subjected to harmonic resonance or sudden G-force changes during vertical indexing, making it the ideal choice for high-precision manufacturing environments where structural integrity and component safety are non-negotiable.
Moving high-density raw materials between processing floors in a chemical or steel plant demands 100% continuous duty cycles. The custom Gradin Bespoke 7-Stop 4-Post Lift is engineered with FEA-optimized structural masts designed to handle specific load-center shifts at any of the seven stations. By eliminating the mechanical fatigue inherent in standard elevators, the quad-mast architecture provides a reliable vertical artery that sustains non-stop production flow even in harsh environments, ensuring the structural longevity of the building’s infrastructure while meeting strict SIL 3 safety protocols and international industrial norms.
Safety in high-tonnage, 7-stop vertical logistics is the core of the Gradin Bespoke 7-Stop 4-Post Lift design mandate. We exceed international regulatory standards through a multi-layered redundancy loop:
Active SIL 3 Risk Mitigation: We integrate ultra-fast pressure-sensing valves and redundant SICK Safety Scanners on every floor station. Any obstruction or drive deviation triggers a Category-0 stop in milliseconds, preventing structural damage.
Fail-Safe Mechanical Arrestors: Symmetrical anti-fall cams engage all four guide rails instantly in the event of drive-tension loss, ensuring the 150T platform remains static even during a total power failure, meeting the highest standards of ASME B20.1 compliance.
Perimeter Safety Interlocks: Full-height shaft enclosures and high-speed power doors are electronically interlocked with the safety PLC logic to ensure zero operator access during the vertical pulse, meeting all global ISO 13849-1 and OSHA directives for heavy industrial elevators.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
