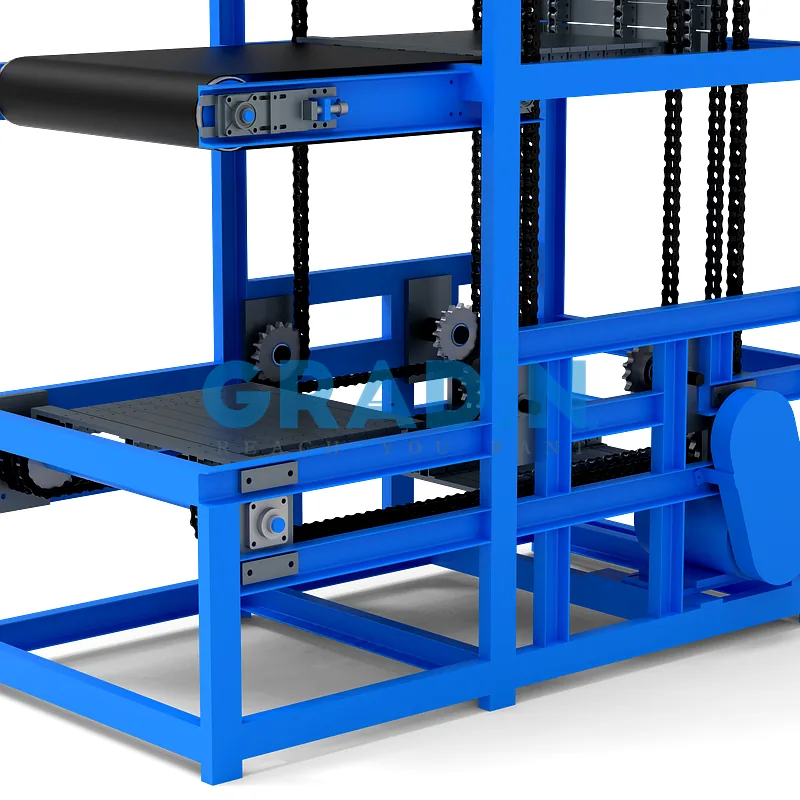

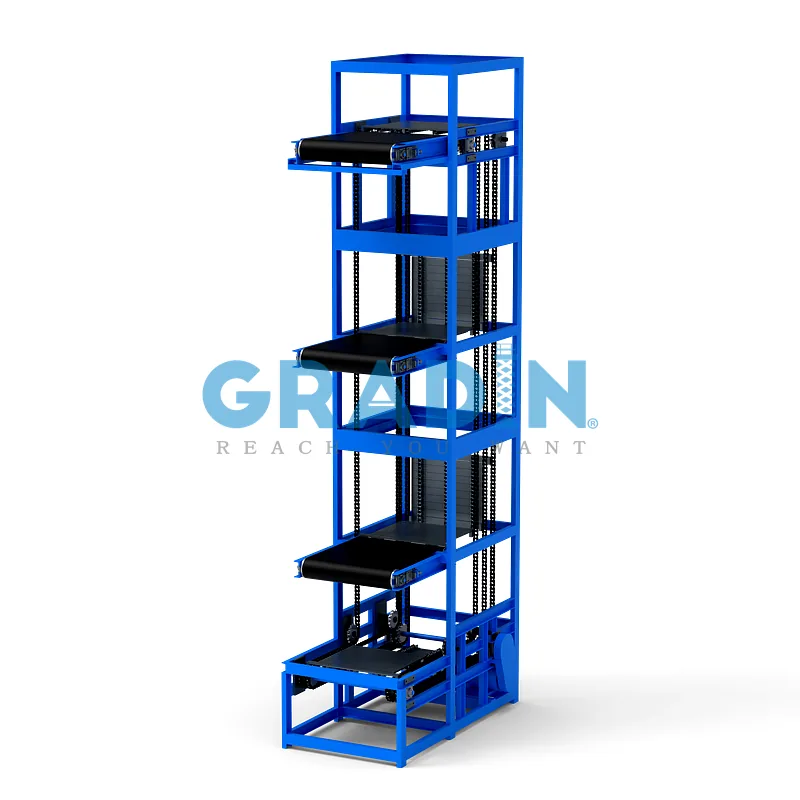

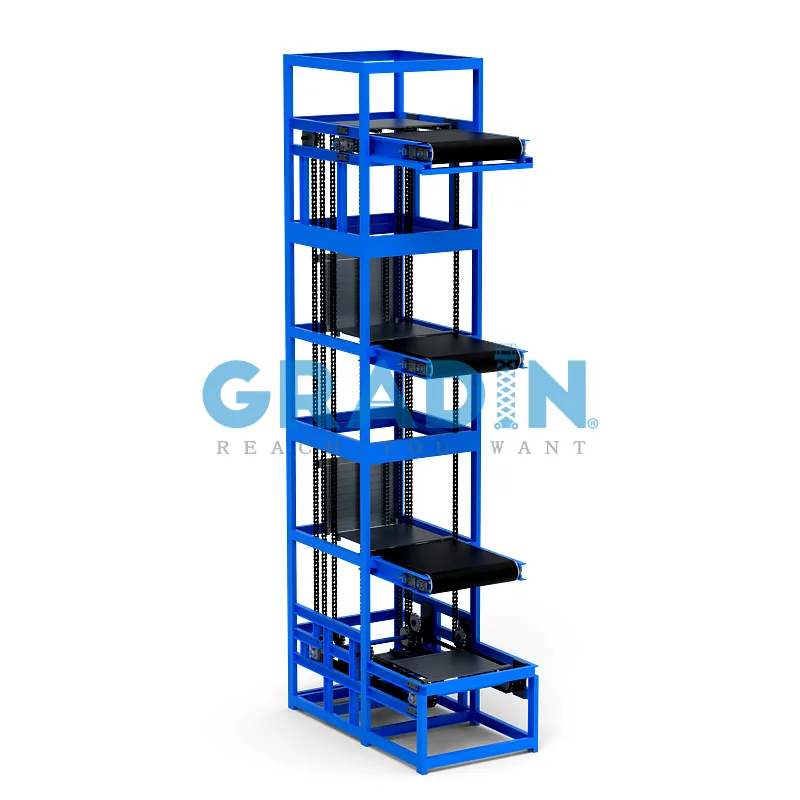

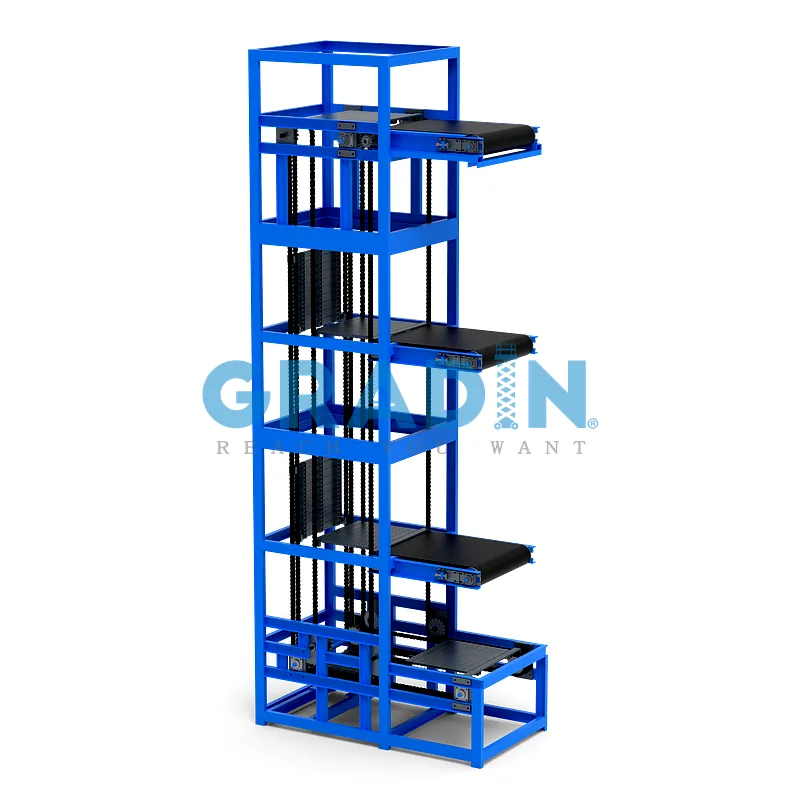

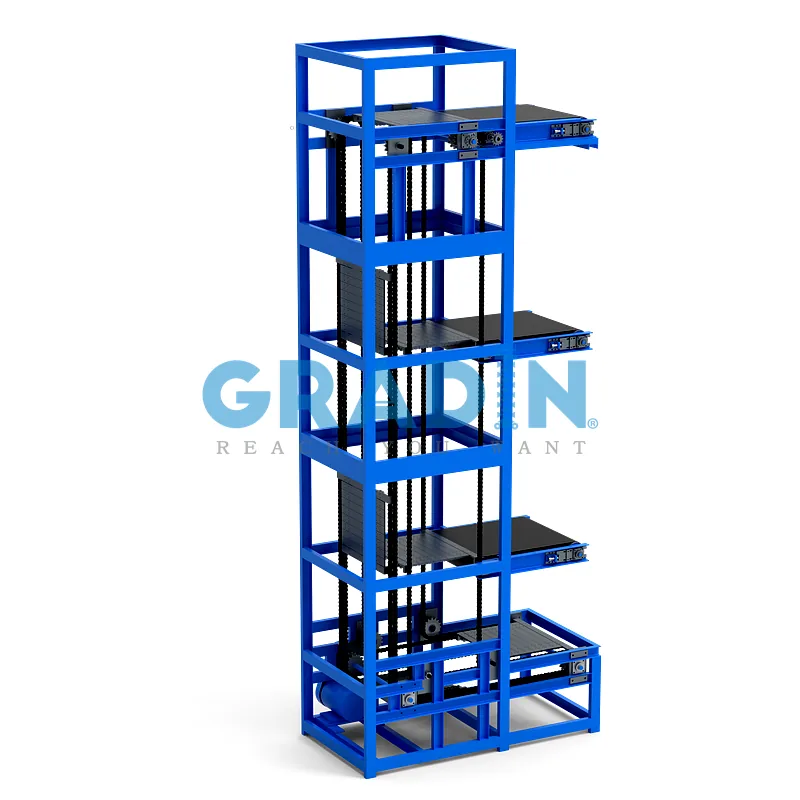

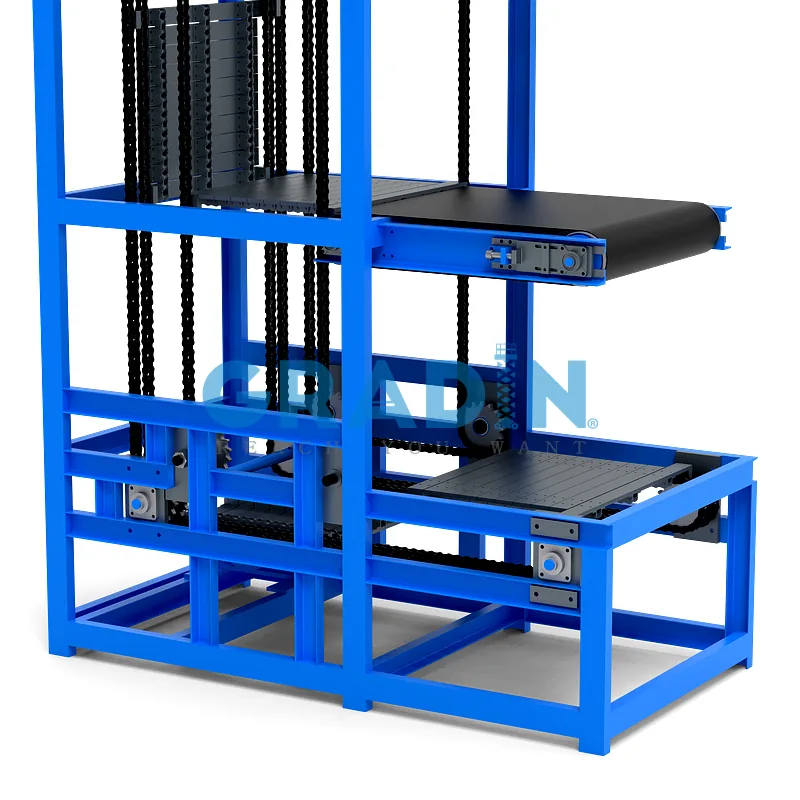

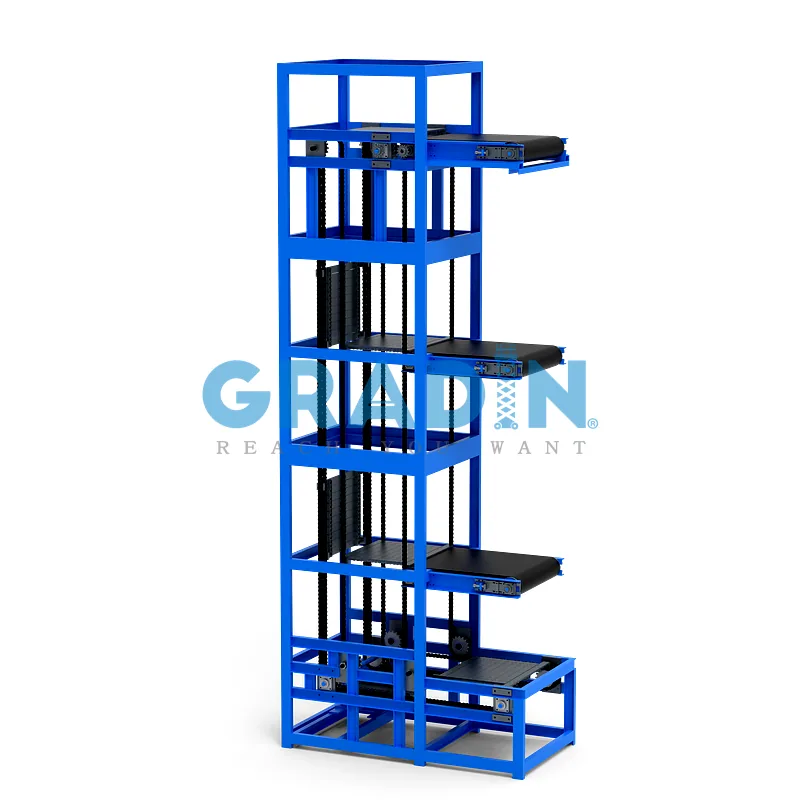

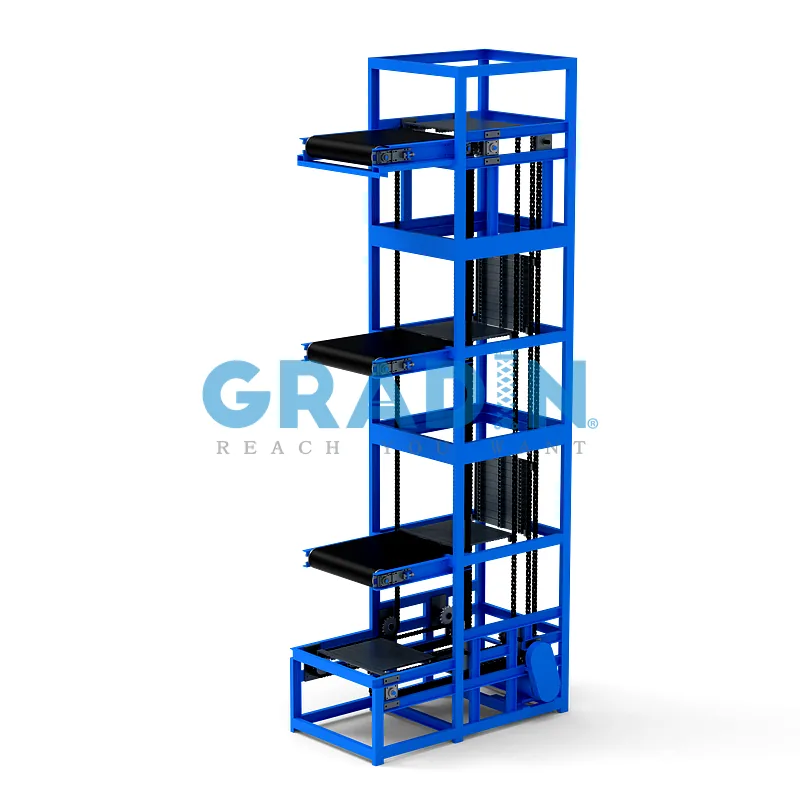

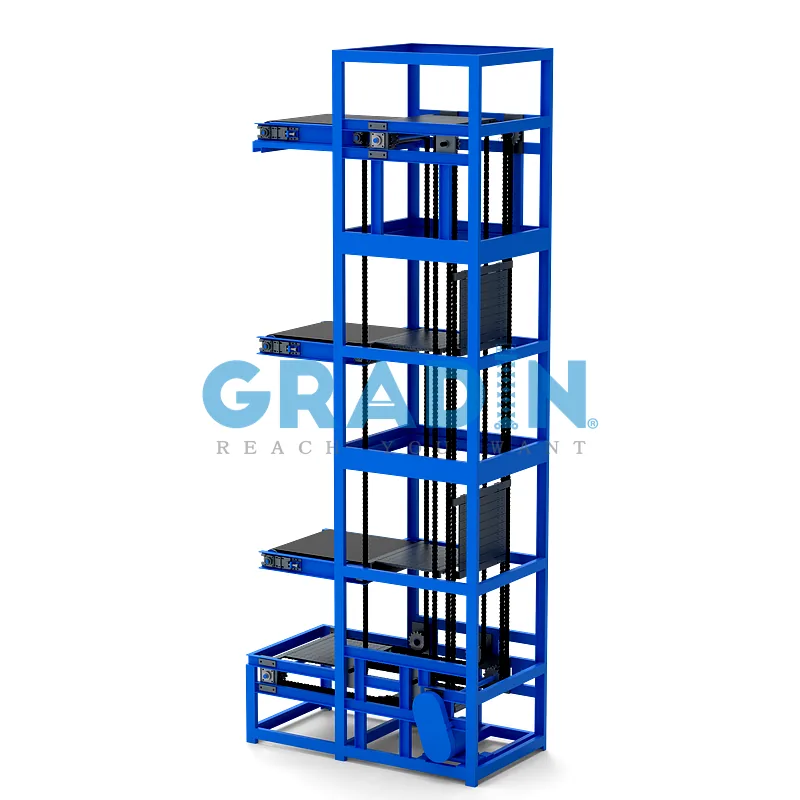

A mechanical vertical conveyor engineered for high-frequency, non-stop material transfer. 100% custom-built to your facility’s footprint, it utilizes synchronized heavy-duty chain drives and closed-loop VFD pacing to eliminate intermittent bottlenecks and maintain continuous multi-level throughput.
Custom Carriers: Tray geometries and pitch distance strictly calculated for your specific cartons, totes, or machined payloads.
Variable Throughput: VFD-regulated velocity synchronizes flawlessly with your existing upstream and downstream automation logic.
Kinetic Rigidity: FEA-validated steel framing prevents torsional deflection and chain derailment under high-cycle, continuous loads.
| Technical Category | Engineering Keys | Standard Reference | Gradin Bespoke (ETO) |
| I. Performance | Flux Architecture | Single In/Out | Multi-Level Strata (E-Type) |
| Line Velocity | 0.15 m/s | Synchronized (1.2 m/s+) | |
| Positioning | ± 15 mm | Sub-Millimeter (± 1 mm) | |
| II. Structural | Actuation Medium | Standard Chain | High-Tension Belt / Rigid Drive |
| Chassis Geometry | Rolled Steel | FEA-Optimized High-Yield Alloy | |
| Surface Protection | Industrial Paint | C5-M Marine / Anti-Static | |
| III. Intelligence | Control Architecture | Basic Logic | Siemens S7-1500 / 5G Ready |
| Handshake Protocol | I/O Signals | Profinet / EtherCAT / TCP-IP | |
| Throughput Logic | FIFO | Dynamic Priority / Smart Buffer | |
| IV. Compliance | Risk Mitigation | Basic E-Stop | Active SIL 3 / Jam Detection |
| Global Standards | CE / Local | OSHA / ASME / ISO 13849 |
Standard lifts fail under the harmonic stress of continuous multi-level flow. Gradin systems utilize Finite Element Analysis (FEA) to calculate torsional forces across the entire 40m+ mast spine.
Vibration Neutralization: Optimized alloy steel architecture absorbs high-frequency resonant energy.
Load Distribution: Box-section chassis design ensures absolute verticality during simultaneous floor loading.
Managing multiple entry/exit nodes requires a sophisticated digital pulse. Our motion architecture transforms the E-Series into an intelligent sorting artery.
Closed-Loop Synchronization: Real-time encoder feedback delivers sub-millimeter deck alignment at every floor transition.
Pulse Sequencing: The system functions as a vertical buffer, adjusting carrier velocity to compensate for downstream production surges.
The E-Series is designed for transparent data exchange, providing a native link between disparate facility levels.
WMS/MES Handshake: Full-stack transparency with real-time carrier occupancy and unit ID tracking.
Predictive Diagnostics: Machine learning profilers monitor motor torque signatures to predict component wear before unplanned downtime.
[Automotive] – Multi-Floor Component Kitting
The Challenge: Moving 2T heavy-component kits to synchronized assembly lines on Floors 2, 3, and 4.
Gradin Solution: High-capacity E-Series with logic-driven discharge based on real-time station demand.
[E-Commerce] – Ultra-High Throughput Sortation
The Challenge: Transferring 1,000+ units/hr across 5 levels in an urban fulfillment center.
Gradin Solution: High-velocity belt-driven loop with ultra-quiet (< 60 dB) operation for ergonomic compliance.
[Pharmaceutical] – ISO-Class Cleanroom Transit
The Challenge: Vertical transit where particulate contamination and hydraulic oil are prohibited.
Gradin Solution: Bespoke oil-free drive systems with stainless-steel cladding for environmental sterility.
Redundant Risk Mitigation Architecture
Safety in high-flux vertical logistics is our absolute engineering priority, exceeding standard regulatory mandates.
Kinetic Arrestors: Secondary mechanical lockouts engage guide rails instantly if drive tension deviation is detected.
Active Perimeter Shielding: Full-height shaft enclosures with high-speed power doors, interlocked with the Safety PLC.
Dynamic Braking: Redundant electromagnetic systems provide a 200% holding torque safety margin.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
