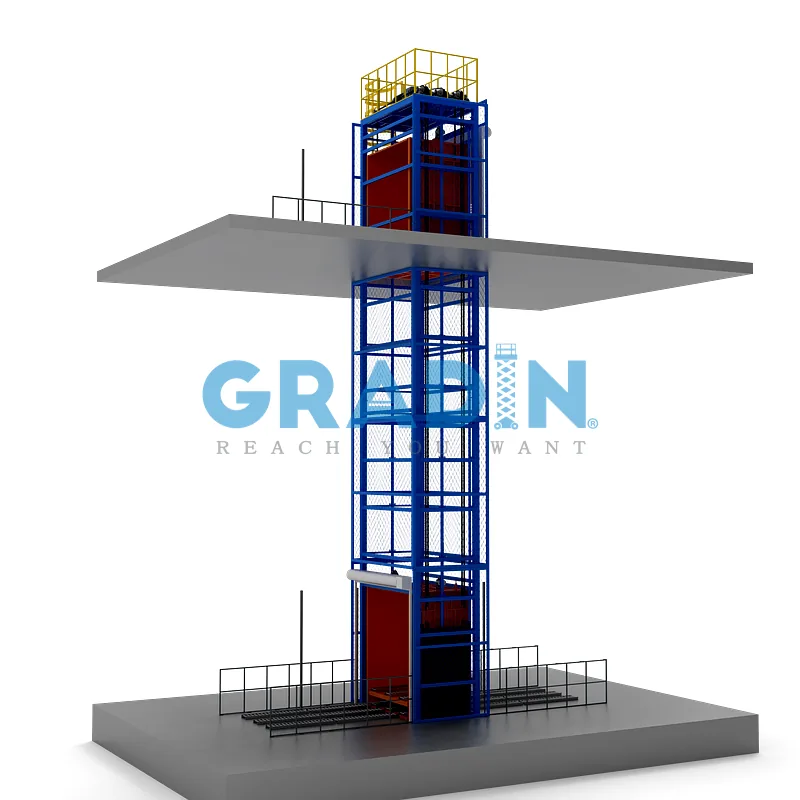

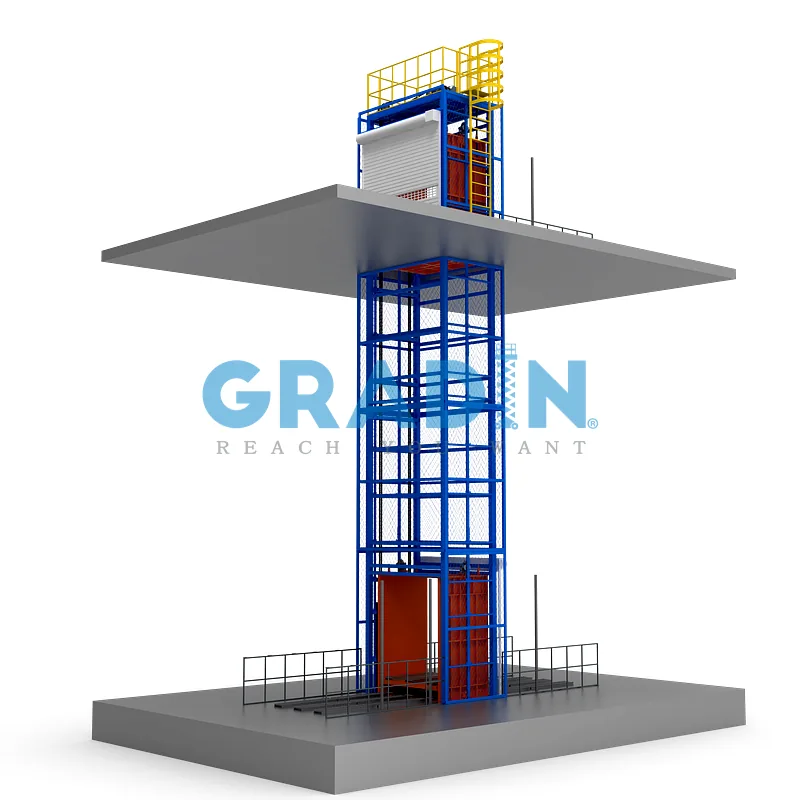

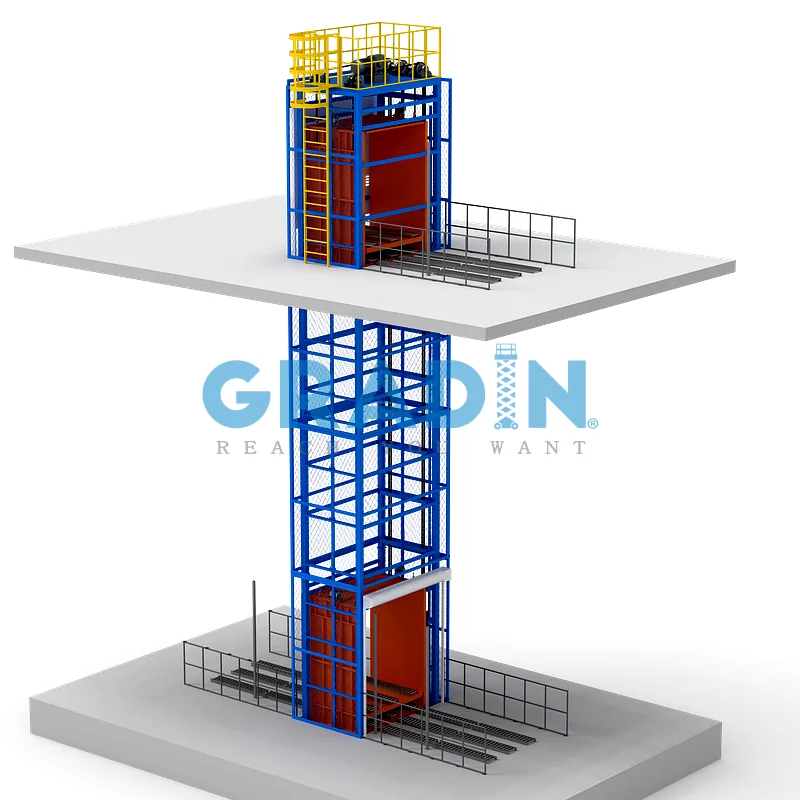

Disrupting a linear production flow to move massive payloads between floors often forces facilities to rely on slow, manual forklift bottlenecks. Gradin designs and manufactures heavy-duty automated through-VRCs that function as a continuous vertical bridge, allowing materials to enter the lift on one side and exit directly out the opposite side on a different elevation. We custom-engineer the onboard transit decks—integrating heavy-duty motorized rollers, specialized chain transfers, or specific locking mechanisms—to perfectly synchronize with your existing horizontal line speeds and exact load dimensions. By tying directly into your facility’s PLC architecture, these pass-through lifts eliminate manual staging and keep high-volume manufacturing or distribution lines moving continuously across multiple levels.
| Technical Category | Key Parameters | Standard Reference | Gradin Bespoke Options (ETO) |
| I. Core Performance | Rated Payload Capacity | 5,000 kg (5 Tons) | Scalable up to 150,000kg (150T+) |
| Vertical Travel (Stroke) | 6,000 mm | Variable travel up to 35,000 mm+ | |
| Access Configuration | Through-Access (180°) | Bespoke 90° or Multi-Access Designs | |
| Positioning Accuracy | ± 5 mm | Millimeter-Level Calibration (± 1 mm) | |
| II. Structural & Material | Mast Engineering | Double/Quadruple Rail | FEA-Optimized High-Rigidity Alloy Steel |
| Platform Surface | Fixed Steel Plate | Integrated Chain / Motorized Roller Modules | |
| Lift Drive System | Hydraulic / Traction | Synchronized Servo Drive / VFD Gear-Motor | |
| Surface Treatment | Industrial Powder Coat | Anti-Static / Marine-Grade / Stainless Steel | |
| III. Control & Intelligence | Control System (PLC) | Siemens S7-1200 | Siemens S7-1500 / Allen Bradley / 5G |
| Communication Protocol | Industrial Wi-Fi | Profinet / EtherCAT / TCP-IP Integration | |
| System Connectivity | Standalone | Full WMS / MES / Industry 4.0 Integration | |
| Feedback Mechanism | Limit Switches | Absolute Encoders / Laser Rangefinders | |
| IV. Environment & Safety | Operating Temperature | -10°C to +40°C | Extreme Cold (-40°C) or Foundry Grade |
| Safety Gates | Manual / Semi-Auto | Fully Automated High-Speed Power Gates | |
| Emergency Measures | Anti-Fall Gears | Anti-Burst Safety Valves / Redundant Power | |
| Compliance Standard | CE / ISO 9001 | Full OSHA / ASME / AS3000 Compliance |
FEA-Validated Structural Integrity for Continuous Linear Material Flow
Vertical logistics in an automated factory environment requires a structure that can manage massive dynamic forces during high-speed induction. Every Gradin Automated Through-VRC Systems installation undergoes rigorous Finite Element Analysis (FEA) during the design phase to simulate these repetitive loading profiles.
Zero-Deflection Masts: We utilize reinforced high-tensile box-section steel engineered to maintain absolute structural rigidity at heights up to 35 meters.
High-Stability Carriage Assembly: Our lifting platforms are specifically reinforced to handle the lateral forces associated with automatic through-conveyors.
Dynamic Stability Control: This engineering-first approach ensures the system maintains absolute structural safety during high-speed transitions, protecting your cargo and the long-term reliability of your vertical material artery.
Precision Synchronization and Millimeter-Perfect Through-Docking Logic
In modern linear manufacturing, throughput is defined by the speed of the floor-to-floor transition. The Gradin Automated Through-VRC Systems utilize advanced synchronized drive technology combined with closed-loop feedback.
Synchronized Motion Control: Utilizing Siemens S7-1500 PLC logic, the VRC achieves perfectly smooth vertical transitions, eliminating the “bounce” or micro-vibrations found in standard goods lifts.
Millimeter Accuracy: High-resolution absolute encoders and laser distance sensors ensure the platform aligns with floor-level conveyors with an accuracy of ±1mm.

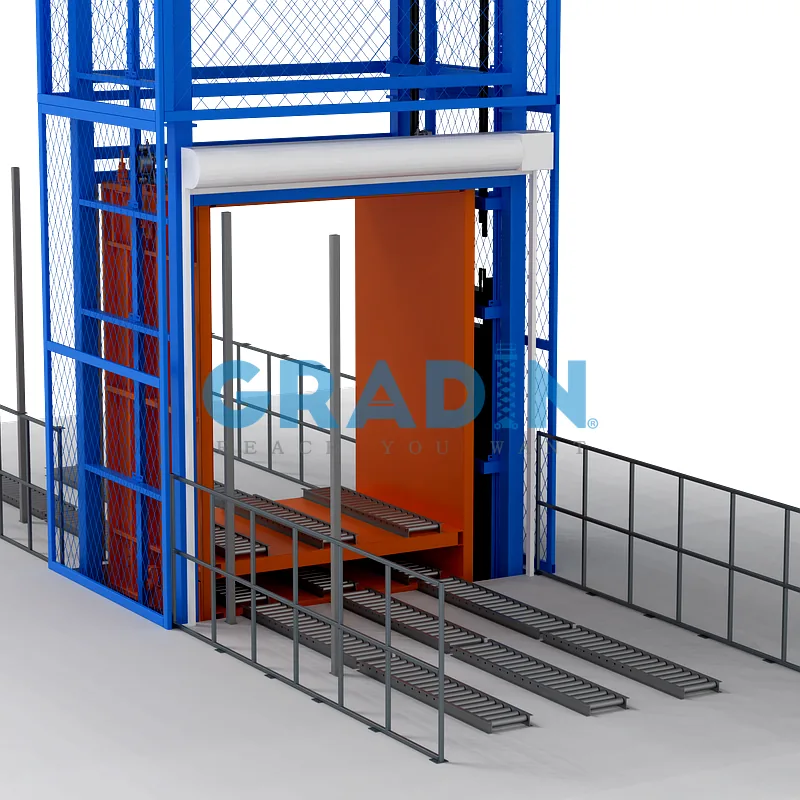

Through-Access Synchronization: Our control logic manages the timing of automated safety gates and conveyor rollers on both sides of the mast, providing a seamless linear material flow that integrates perfectly with your automated production line pulse.
Industry 4.0 Connectivity and Full Factory System Integration
Vertical logistics must function as a transparent, data-driven node within your facility ecosystem. Every Gradin Automated Through-VRC Systems installation features an open-architecture control system designed for full digital integration.
Real-Time WMS Handshake: Through Profinet, EtherCAT, or 5G connectivity, the VRC communicates directly with your Warehouse Management System, receiving missions and reporting real-time status updates.
Autonomous Operational Logic: The system can be programmed to autonomously manage pallet buffering, sequencing, and multi-level distribution without human intervention.
Predictive Maintenance Monitoring: The system tracks chain/cable tension, motor torque profiles, and cycle health, providing the data needed to prevent unplanned downtime in high-stakes 24/7 automated facilities.
[E-commerce & Fulfillment] – High-Throughput Multi-Story Logistics
The Challenge: Moving thousands of pallets or picking bins vertically while maintaining a straight-line horizontal flow to maximize picking speed.
Gradin Solution: The Gradin Automated Through-VRC Systems act as the high-speed vertical artery within your fulfillment center. The 180° through-access allows for a linear “In/Out” workflow, significantly reducing pallet-wait times and increasing total facility throughput.
[Automotive & Manufacturing] – Multi-Floor Assembly Line Integration
The Challenge: Moving heavy engine sub-assemblies or multi-ton die sets between production floors without breaking the linear material flow.
Gradin Solution: Our Bespoke Heavy-Duty Through-VRCs provide the high-capacity vertical link required for Just-in-Time (JIT) manufacturing. By delivering components directly from one side of the lift to the other at the next level, the system eliminates manual handling and optimizes the production tact-time.
[Logistics & Warehousing] – Seamless Building-to-Building Material Flow
The Challenge: Moving temperature-sensitive cargo between disconnected buildings or mezzanines in restricted factory corridors.
Gradin Solution: We customize these units with weather-resistant shielding and insulated enclosures. The automated through-access turns a complex logistics bottleneck into a synchronized, automated material flow that maintains the integrity of high-value cargo throughout the vertical transition.
Redundant Safety Architecture and Precision Motion Monitoring
Safety in high-tonnage, automated vertical logistics is our most critical engineering priority.
Active Anti-Fall Redundancy: Every Gradin Automated Through-VRC Systems installation is integrated with redundant mechanical anti-fall gears and hydraulic velocity fuses that lock the carriage instantly if a failure is detected.
Intelligent Through-Access Protection: The PLC features active collision-avoidance logic, using laser sensors to verify both the entry and exit paths are clear before motion is triggered, ensuring zero structural damage during automated cycles.
Interlocked Safety Enclosures: We provide synchronized high-speed power gates that perform a digital handshake with the VRC, ensuring that vertical transitions are fully isolated from personnel, meeting the most stringent global safety ratings (ISO 13849-1 / CE).
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
