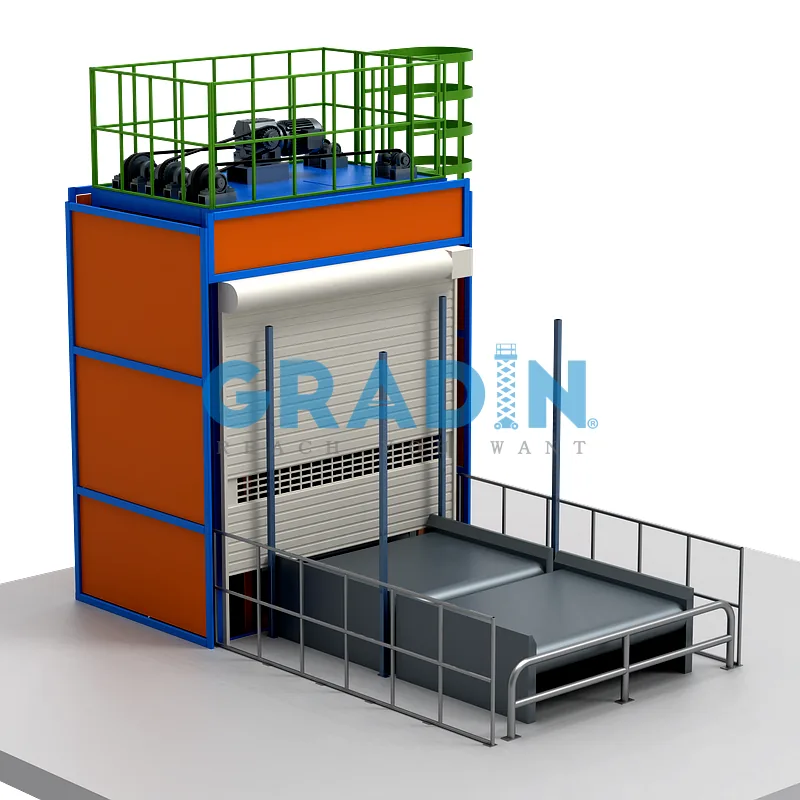

Managing the inertia of multi-ton payloads during rapid vertical acceleration and deceleration requires a drive architecture far beyond standard industrial lift parameters. Gradin constructs these heavy-duty high-speed automated VRCs utilizing high-torque traction machines and closed-loop variable frequency drives (VFD) to maintain precise velocity control throughout the entire lift cycle. The onboard automated transit decks—equipped with high-speed powered rollers or reinforced drag chains—rely on laser positioning and sub-millisecond PLC handshakes to synchronize with adjacent horizontal conveyor matrices. We engineer the structural masts with reinforced cross-bracing and oversized guide rollers to counteract the dynamic vibration and centripetal forces generated during high-velocity travel. Every system is mathematically sized for the specific cycle-per-hour requirements and maximum load mass of the facility’s high-throughput automated routing.
| Technical Category | Key Parameters | Standard Reference | Gradin Bespoke Options (ETO) |
| I. Core Performance | Rated Payload Capacity | 5,000 kg (5 Tons) | Scalable up to 150,000kg (150T+) |
| Vertical Travel Speed | 0.15 m/s | High-Velocity Optimized (up to 0.8 m/s+) | |
| Positioning Accuracy | ± 5 mm | Millimeter-Level Calibration (± 1 mm) | |
| Duty Cycle Rating | Intermittent | 24/7 Heavy-Duty Continuous Industrial | |
| II. Structural & Material | Mast Engineering | Double/Quadruple Rail | FEA-Optimized High-Rigidity Alloy Steel |
| Lift Drive System | Hydraulic / Traction | Synchronized Servo-Mechanical / VFD Drive | |
| Carriage Reinforcement | Solid Plate Steel | Impact-Reinforced Box-Section Carriage | |
| Surface Treatment | Industrial Powder Coat | C5-M Marine / Anti-Static / Cleanroom | |
| III. Control & Intelligence | Control System (PLC) | Siemens S7-1200 | Siemens S7-1500 / Allen Bradley / 5G |
| Communication Protocol | Industrial Wi-Fi | Profinet / EtherCAT / TCP-IP Integration | |
| System Connectivity | Standalone | Full WMS / MES / Industry 4.0 Integration | |
| Feedback Mechanism | Limit Switches | Absolute Encoders / Laser Rangefinders | |
| IV. Environment & Safety | Operating Temperature | -10°C to +40°C | Extreme Cold (-40°C) or Foundry Grade |
| Safety Gate Logic | Electronic Interlock | Fully Automated High-Speed Power Gates | |
| Emergency Measures | Anti-Fall Gears | Mechanical Safety Cams / Redundant Power | |
| Compliance Standard | CE / ISO 9001 | Full OSHA / ASME / AS3000 Compliance |
FEA-Validated Structural Integrity for Dynamic High-Speed Loads
Operating a 150-ton vertical system at high velocities creates immense dynamic stress and mechanical resonance. Every Gradin High-Speed Automated VRC undergoes rigorous Finite Element Analysis (FEA) during the design phase to ensure the frame eliminates vibrations.
Zero-Deflection Masts: We utilize reinforced high-tensile alloy steel box-sections engineered to maintain absolute structural rigidity even during emergency high-speed stops.
High-Frequency Fatigue Resistance: Our carriage designs are specifically reinforced with energy-absorbing guide rollers to handle the dynamic shock of high-speed vertical travel.
Stability Calibration: This engineering-first approach ensures the system maintains absolute stability over millions of high-throughput cycles, protecting both your personnel and your high-value assets.
Intelligent Servo-Driven Navigation and Precision Leveling
The success of an automated logistics hub is defined by the speed of the vertical link and the precision of the station docking. The Gradin High-Speed Automated VRC utilizes advanced Variable Frequency Drive (VFD) technology combined with synchronized gear motors.
S-Curve Acceleration Logic: Utilizing Siemens S7-1500 PLC logic, the system achieves ultra-smooth vertical transitions, protecting sensitive electronics or high-value payloads from inertial shock.
Millimeter Accuracy: High-resolution absolute encoders and laser sensors ensure the platform aligns with floor-level conveyors with an accuracy of ±1mm, essential for high-speed automated material transfer.
Real-Time Synchronization: The control system manages the vertical position, automated safety gates, and platform conveyors in a single, synchronized pulse to maximize tact-time.
Industry 4.0 Connectivity and Full Factory Material Flow Integration
Vertical logistics must function as a transparent node within your digital facility infrastructure. Every Gradin High-Speed Automated VRC features an open-architecture control system designed for full factory integration.
Real-Time Data Handshake: Through Profinet, EtherCAT, or 5G connectivity, the VRC communicates directly with your Manufacturing Execution System (MES) or WMS, providing instant updates on cargo location and system diagnostics.
Autonomous Operational Logic: The system can be programmed to autonomously manage pallet sequencing, multi-level buffering, and automatic door triggering without human intervention.
Predictive Maintenance Monitoring: The system tracks motor torque profiles, vibration levels, and cycle health, providing the data needed to prevent unplanned downtime in 24/7 high-stakes industrial hubs.
[Logistics & Fulfillment] – High-Throughput Multi-Story Distribution
The Challenge: Moving thousands of picking bins or heavy pallets vertically per shift between mezzanines where cycle speed defines the facility’s shipping capacity.
Gradin Solution: The Gradin High-Speed Automated VRC acts as the facility’s central material artery. The high-speed traction drive ensures rapid travel between floors, eliminating vertical bottlenecks and increasing total fulfillment throughput.
[Automotive & Manufacturing] – Multi-Floor Assembly Line Shuttling
The Challenge: Transporting heavy engine sub-assemblies or multi-ton die sets between production floors without breaking the synchronized linear flow of the assembly line.
Gradin Solution: Engineered for extreme tonnage and high velocity, our Bespoke Automated VRCs provide a high-capacity link. By performing a digital handshake with robotic assembly cells, the system ensures components are delivered at the exact second they are required.
[Cold Storage & Pharma] – Seamless Thermal-Controlled Vertical Flow
The Challenge: Moving temperature-sensitive cargo vertically between floors while maintaining a strict thermal envelope and zero contamination.
Gradin Solution: We customize these units with stainless steel platforms and hermetically sealed power gates. The automated high-speed docking turns a complex logistics bottleneck into a synchronized, automated material flow that maintains the environmental integrity of high-value cargo.
Redundant Safety Architecture and High-Velocity Motion Monitoring
Safety in high-tonnage, high-speed automated vertical logistics is our most critical engineering priority.
Active Anti-Fall Redundancy: Every Gradin High-Speed Automated VRC is integrated with redundant mechanical anti-fall gears and emergency brake motors that lock the carriage instantly in any failure scenario.
Interlocked Safety Enclosures: We provide synchronized high-speed power gates at all stops that perform a digital handshake with the VRC logic, ensuring that high-speed vertical transitions are fully isolated from personnel, meeting global safety ratings (ISO 13849-1 / CE).
Intelligent Load Monitoring: Integrated load cells and torque monitoring switches ensure the lift will not operate beyond its rated capacity, protecting both your personnel and your high-value assets during every automated cycle.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
