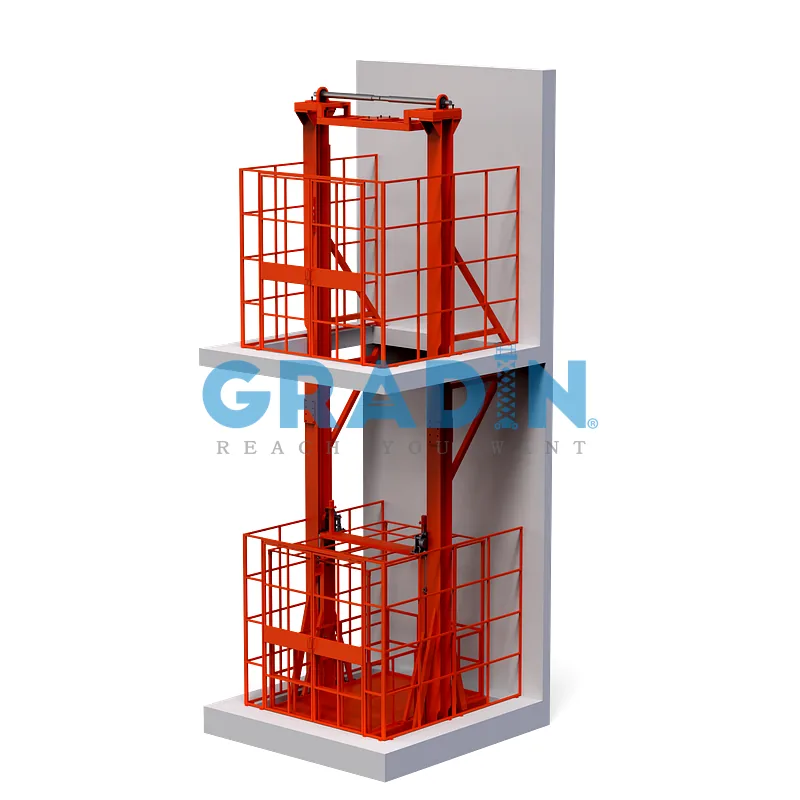

The dual-mast architecture of a straddle VRC inherently provides the highest level of stability for lifting extremely wide or unevenly distributed payloads. Gradin sizes the carriage dimensions and structural capacity of every unit to match specific operational requirements, whether the daily task involves elevating massive aerospace jigs or extra-long bundles of raw material to a storage mezzanine. By utilizing synchronized mechanical drives and heavy-duty guide columns that completely enclose the load, the platform remains perfectly level throughout its travel trajectory. This structural rigidity is particularly crucial when forklifts apply severe off-center forces during the loading and unloading phases. We engineer the complete system, including the necessary safety enclosures, gate interlocks, and structural tie-ins, to ensure the equipment operates safely and seamlessly within the physical constraints of your existing building steel.
| Technical Category | Key Parameters | Standard Reference | Gradin Bespoke Options (ETO) |
| I. Core Performance | Rated Payload Capacity | 10,000 kg (10 Tons) | Scalable up to 150,000kg (150T+) |
| Supporting Structure | Dual-Mast (Straddle) | Reinforced Multi-Mast Configurations | |
| Vertical Travel (Stroke) | 6,000 mm | Variable travel up to 35,000 mm+ | |
| Positioning Accuracy | ± 5 mm | Millimeter-Level Calibration (± 1 mm) | |
| II. Structural & Material | Mast Engineering | Double Box Section | FEA-Optimized High-Rigidity Alloy Steel |
| Platform Configuration | Balanced Centered | Bespoke oversized decks (up to 12m+) | |
| Lift Drive System | Hydraulic / Traction | Synchronized Servo-Hydraulic / VFD Drive | |
| Surface Treatment | Industrial Powder Coat | C5-M Marine / Galvanized / Anti-Static | |
| III. Control & Intelligence | Control System (PLC) | Siemens S7-1200 | Siemens S7-1500 / Allen Bradley / 5G |
| Communication Protocol | Industrial Wi-Fi | Profinet / EtherCAT / TCP-IP Integration | |
| System Connectivity | Standalone | Full WMS / MES / Industry 4.0 Integration | |
| Feedback Mechanism | Limit Switches | Absolute Encoders / Laser Rangefinders | |
| IV. Environment & Safety | Operating Temperature | -10°C to +40°C | Extreme Cold (-40°C) or Foundry Grade |
| Safety Gates | Manual / Semi-Auto | Fully Automated High-Speed Power Gates | |
| Emergency Measures | Anti-Fall Gears | Anti-Burst Safety Valves / Redundant Power | |
| Compliance Standard | CE / ISO 9001 | Full OSHA / ASME / AS3000 Compliance |
FEA-Validated Structural Integrity and Balanced Load Stabilization
Lifting ultra-heavy loads (up to 150T+) requires a structure that eliminates the torsional stress inherent in cantilever designs. The Gradin Bespoke Straddle VRC utilizes a dual-mast configuration that centers the carriage between two rigid columns, providing perfect structural equilibrium.
Bending Moment Mitigation: Every installation undergoes rigorous Finite Element Analysis (FEA) to simulate the stress distribution across the dual masts and the lifting carriage during high-torque transitions.
Zero-Deflection Masts: We utilize reinforced high-tensile alloy steel box-sections that prevent structural warping at vertical heights exceeding 30 meters.
High-Stability Carriage Assembly: The straddle design ensures that the center of gravity remains centralized, protecting both your high-value cargo and the mechanical integrity of the drive system from asymmetrical wear.
Precision Dual-Mast Synchronization and Millimeter-Perfect Docking
Maintaining perfectly level vertical flow for oversized platforms requires sophisticated drive synchronization. The Gradin Bespoke Straddle VRC utilizes advanced synchronized hydraulic or traction technology combined with closed-loop Siemens logic.
Synchronized Motion Control: Utilizing Siemens S7-1500 PLC logic, the system achieves perfectly smooth vertical transitions, eliminating the “carriage bounce” common in standard vertical conveyors.
Millimeter Accuracy: High-resolution absolute encoders and laser distance sensors ensure the platform aligns with mezzanine floor levels with an accuracy of ±1mm, essential for high-speed AGV or forklift transitions.
Dynamic Deviation Correction: The control system monitors both masts in real-time; if a deviation is detected due to an uneven load, the proportional hydraulic valves adjust instantly to maintain a level surface.
Industry 4.0 Connectivity and Full Factory Material Flow Integration
Vertical logistics must function as a transparent node within your digital facility infrastructure. Every Gradin Bespoke Straddle VRC installation features an open-architecture control system designed for full factory integration.
Real-Time Data Handshake: Through Profinet, EtherCAT, or 5G connectivity, the VRC communicates directly with your Manufacturing Execution System (MES) or WMS, providing instant updates on load status and vertical coordinates.
Autonomous Operational Logic: The system can be programmed to autonomously manage pallet sequencing, multi-level buffering, and automatic door triggering without human intervention.
Predictive Maintenance Monitoring: The system tracks chain/cable tension, motor thermal profiles, and cycle counts, providing the data needed to prevent unplanned downtime in high-stakes 24/7 automated logistics hubs.
[Logistics & E-commerce] – Heavy Pallet and AGV Mezzanine Flow
The Challenge: Moving multi-ton pallet loads or entire AGV fleets vertically in high-density fulfillment centers without the footprint of a freight elevator.
Gradin Solution: The Gradin Bespoke Straddle VRC provides a high-capacity vertical link. The balanced dual-mast design allows for oversized platforms that can transport multiple pallets simultaneously, significantly increasing your facility’s vertical throughput.
[Heavy Manufacturing] – Multi-Story Assembly and Die Logistics
The Challenge: Maneuvering 50-ton stamping dies or engine sub-assemblies between production levels where structural stability is mandatory for bolting and alignment.
Gradin Solution: Engineered for extreme tonnage, our Bespoke Straddle VRCs act as a stable vertical conduit. By delivering dies directly into the production mezzanine with millimeter precision, the system eliminates manual handling risks and optimizes the production tact-time.
[Energy & Wind Power] – Massive Component Multi-Level Transfer
The Challenge: Handling oversized components like generator cores or transformer sections that require wide-platform stability during vertical transport.
Gradin Solution: We customize the FEA-reinforced dual masts to fit within restricted factory bays. The straddle configuration ensures that the massive component remains stable throughout the 15-meter vertical transition, providing a safer and faster alternative to standard overhead cranes.
Redundant Safety Architecture and Multi-Point Motion Monitoring
Safety in high-tonnage, high-reach vertical logistics is our most critical engineering priority.
Active Anti-Fall Redundancy: Every Gradin Bespoke Straddle VRC is integrated with redundant mechanical anti-fall safety cams and hydraulic velocity fuses that lock the carriage instantly in any failure scenario.
Interlocked Safety Enclosures: We provide synchronized high-speed power gates that perform a digital handshake with the VRC, ensuring that vertical transitions are fully isolated from personnel, meeting the most stringent global safety ratings (ISO 13849-1 / CE).
Zero-Risk Load Locking: Redundant safety-critical holding valves and pressure monitoring switches ensure that your bespoke straddle vertical solution protects your personnel and your high-value assets during every cycle.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
