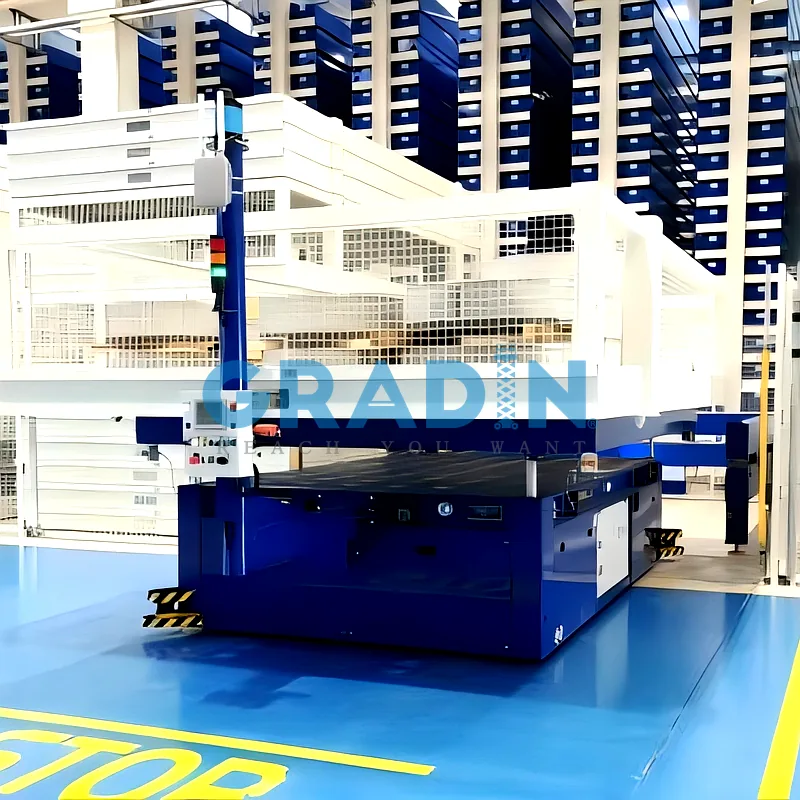

This Mecanum Omni-AGV acts as an advanced multi-directional transit system for the ultra-precise movement of industrial payloads in highly restricted spaces. Built by Gradin as a custom engineered-to-order (ETO) solution, the platform utilizes specialized Mecanum wheel technology to achieve true zero-radius rotation and lateral movement without the need for traditional steering arcs. Capable of sub-millimeter positioning accuracy, this Mecanum Omni-AGV provides a highly flexible navigation layer for complex assembly lines, ensuring seamless docking and synchronized material flow where traditional AGV configurations cannot operate.
| Engineering Parameter | Standard Reference | Gradin Bespoke Capabilities |
| Rated Load Capacity | 2,000 kg (2 Tons) | Scalable from 1,000kg to 50,000kg (50T) |
| Steering Technology | Mecanum Omni-Directional | 360° Vector Movement / Zero-Radius Turn |
| Navigation Mode | Laser SLAM / QR Code | Hybrid Navigation (SLAM + LiDAR + IMU) |
| Positioning Accuracy | ± 10 mm | High-Precision Calibration up to ± 5 mm |
| Travel Speed | 30 m/min (Full Load) | Adjustable VFD Speed up to 60 m/min |
| System Integration | Industrial Wi-Fi / 5G | WMS / MES / Industry 4.0 PLC Connectivity |
Gradin Mecanum Omni-AGV Kinematic Control and Omni-Directional Mobility
Standard AGVs are limited by their turning radius, often requiring wide aisles that waste valuable factory floor space. The Gradin Mecanum Omni-AGV utilizes specialized Mecanum wheel modules, enabling the vehicle to move in any direction—including lateral crab-walking, diagonal travel, and 360-degree rotation around its own center. Our bespoke motion control algorithms synchronize each of the four wheel motors with micro-second precision, providing smooth and vibration-free transit even when carrying asymmetrical loads. This omnidirectional agility is essential for navigating narrow assembly lines and docking with stationary machinery in high-density production environments.
Gradin Mecanum Omni-AGV Structural Integrity and FEA Validation
Handling heavy loads on Mecanum wheels requires a chassis that can manage complex torsional stresses and point-loading. Every Gradin Mecanum Omni-AGV is engineered using Finite Element Analysis (FEA) to ensure that the high-tensile steel frame maintains absolute structural integrity under 50-ton loads. Our bespoke chassis engineering focuses on optimizing the suspension system to ensure that all four wheels maintain constant contact with the floor, which is critical for the accurate execution of omnidirectional movements. This engineering-first approach prevents mechanical wear and ensures the operational stability required for 24/7 automated industrial cycles.
Gradin Mecanum Omni-AGV Intelligent Navigation and Industry 4.0 Integration
Automation is only as effective as the intelligence driving it. The Gradin Mecanum Omni-AGV utilizes LiDAR-based SLAM navigation, allowing it to operate autonomously without the need for floor-embedded magnets, tapes, or wires. The vehicle communicates directly with your MES (Manufacturing Execution System) and WMS (Warehouse Management System) through an open-architecture control logic. This Industry 4.0 connectivity ensures that your material handling becomes a data-driven process, allowing for real-time load tracking, autonomous battery management, and millimeter-level docking precision with automated production lines or robotic cells.
Aerospace Component Assembly and Hangar Logistics
The Gradin Mecanum Omni-AGV is the premier professional choice for the aerospace industry, where moving sensitive fuselage sections or engines through tight hangar spaces requires extreme precision. By providing vibration-free omnidirectional movement, our AGVs ensure that high-value components are positioned with zero risk of collision. We customize the platform with soft-start/stop drive logic and specialized cradles bespoke to aerospace geometries, allowing for seamless docking with fixed assembly jigs in high-spec cleanroom environments.
Automotive Press Shop and Flexible Production Lines
In modern automotive manufacturing, the transition toward flexible production requires material handling that can adapt to changing layouts. The Gradin Mecanum Omni-AGV streamlines the transport of heavy stamping dies and sub-assemblies across the press shop. By utilizing precise vector steering, the AGV can dock directly with the press bolster in tight “L-shaped” corridors where traditional forklifts cannot operate. Our bespoke integration allows the AGV to synchronize its movements with the line tempo, turning a logistical bottleneck into a high-speed automated operation.
Heavy-Duty Die and Mold Change Management
Handling dense, heavy injection molds and stamping dies often creates significant safety risks and operational delays. A Gradin Mecanum Omni-AGV provides a low-profile, high-capacity solution for the Quick Die Change (QDC) process. The AGV’s ability to perform zero-radius turns allows it to maneuver multi-ton molds directly into storage racks or press stations with extreme accuracy. Every vehicle is customized with FEA-reinforced top platforms and integrated locking mechanisms, ensuring that these high-tonnage loads remain perfectly secure during rapid omnidirectional transit.
Redundant Safety Architecture and 360-Degree Obstacle Detection
Moving loads up to 50 tons autonomously requires the highest level of safety redundancy. The Gradin Mecanum Omni-AGV is equipped with a multi-layered safety perimeter, featuring dual-laser LiDAR scanners that provide a 360-degree field-of-view protection. The system utilizes dynamic field switching, which automatically expands or contracts the warning and stop zones based on the vehicle’s current travel speed and load status. Furthermore, we integrate pressure-sensitive safety bumpers and acoustic-optic warning signals on all four corners, ensuring total compliance with international safety standards (ISO 3691-4/CE). The intelligent control logic ensures that in the event of an unexpected obstruction, the AGV executes a controlled emergency halt, protecting your personnel and high-value assets.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
