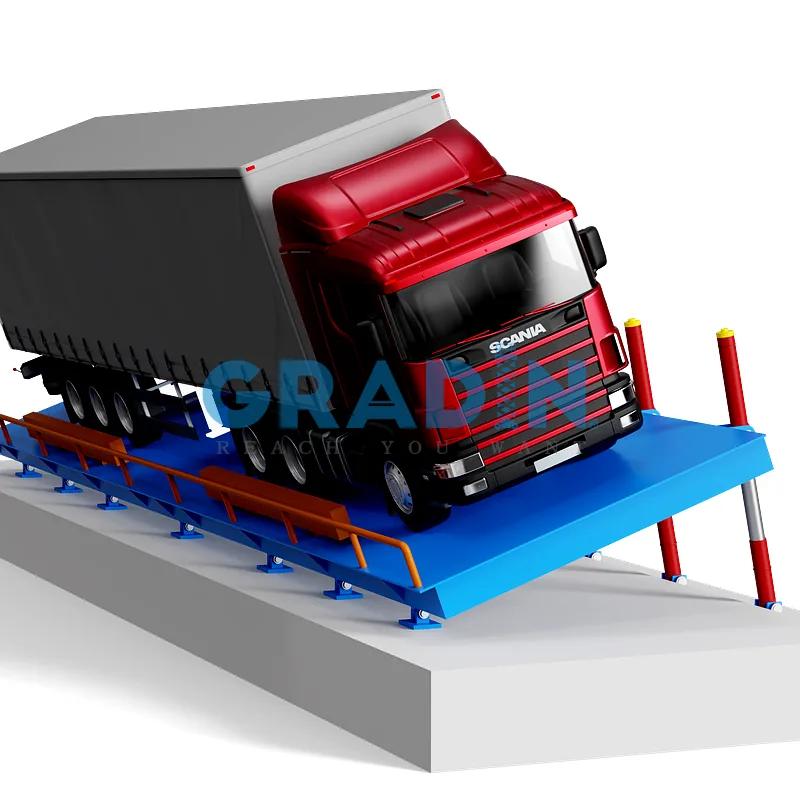

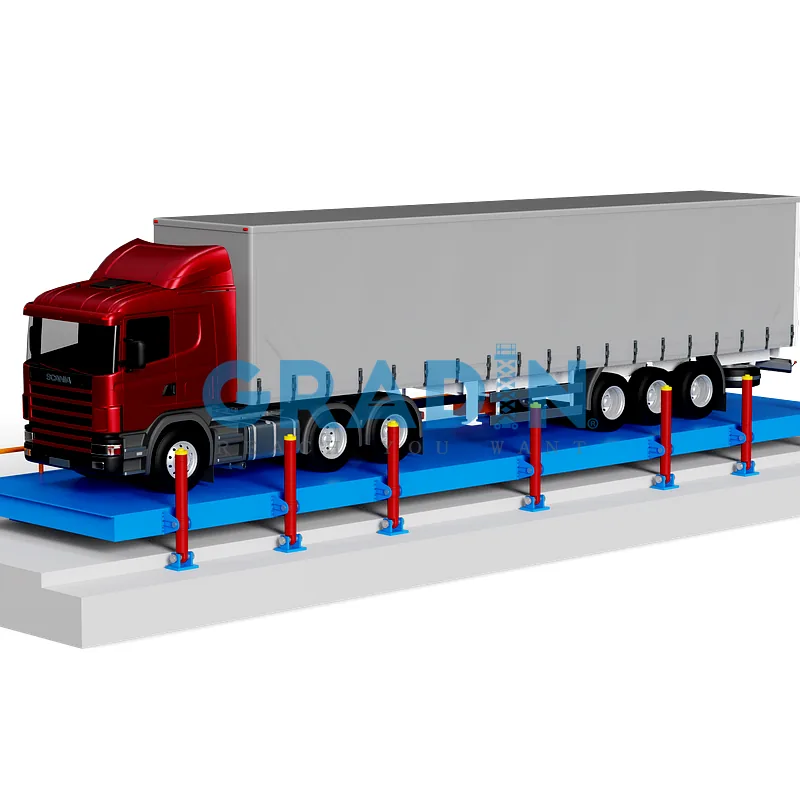

This Side-Tilting Unloader acts as a heavy-duty discharge station for the controlled lateral decanting of industrial containers, hoppers, and bulk materials. Built by Gradin as a custom engineered-to-order (ETO) solution, the system is designed to integrate seamlessly into existing production lines where space constraints prevent traditional end-tilting operations. Engineered to support high-intensity duty cycles—handling up to 120 cycles per hour—the unloader utilizes synchronized hydraulic cylinders to ensure a smooth, vibration-free tilt action. Whether used for discharging raw materials into processing pits or transferring components to secondary conveyors, this Side-Tilting Unloader provides a stable, repeatable interface that maximizes material recovery while maintaining absolute operator safety in high-throughput environments.
| Technical Category | Key Parameters | Standard Reference | Gradin Bespoke Options (ETO) |
| I. Core Performance | Rated Unloading Capacity | 50,000 kg (50 Tons) | Scalable 20,000kg to 100,000kg (100T) |
| Maximum Tilting Angle | 35° – 45° (Standard) | Fully Bespoke Angle Per Material Flow | |
| Unloading Cycle Time | 4 – 6 Minutes | High-Throughput Optimized Cycles | |
| Platform Length | 12,000 mm | Bespoke Lengths from 6m to 24m+ | |
| II. Structural & Material | Platform Engineering | Reinforced I-Beam | FEA-Optimized High-Tensile Box Section |
| Side Guard Rails | Fixed Steel | Hydraulic Retractable / Automated Guards | |
| Pivot Point Design | Heavy-Duty Hinge | Oversized Hardened Pins with Auto-Lube | |
| Surface Treatment | Industrial Coating | C5-M Corrosion-Resistant / Galvanized | |
| III. Hydraulics & Control | Hydraulic Drive System | Central Power Unit | Redundant Dual-Motor Power Modules |
| Cylinder Synchronization | Mechanical Link | Proportional Hydraulic Logic / Laser Sync | |
| Control Architecture | Handheld Pendant | Siemens S7-1500 / HMI / Automated Logic | |
| Safety Interlocks | Limit Switches | Integrated Load Cells / RFID Truck ID | |
| IV. Environment & Safety | Dust Control Integration | Standalone Hoods | Integrated Sealing / Dust Suppression |
| Operating Temperature | -10°C to +45°C | Extreme Cold (-30°C) or Dusty Environments | |
| Vehicle Securing | Manual Chocks | Automated Hydraulic Wheel Grippers | |
| Compliance Standard | CE / ISO | Compliance with OSHA / ASME / AS3000 |

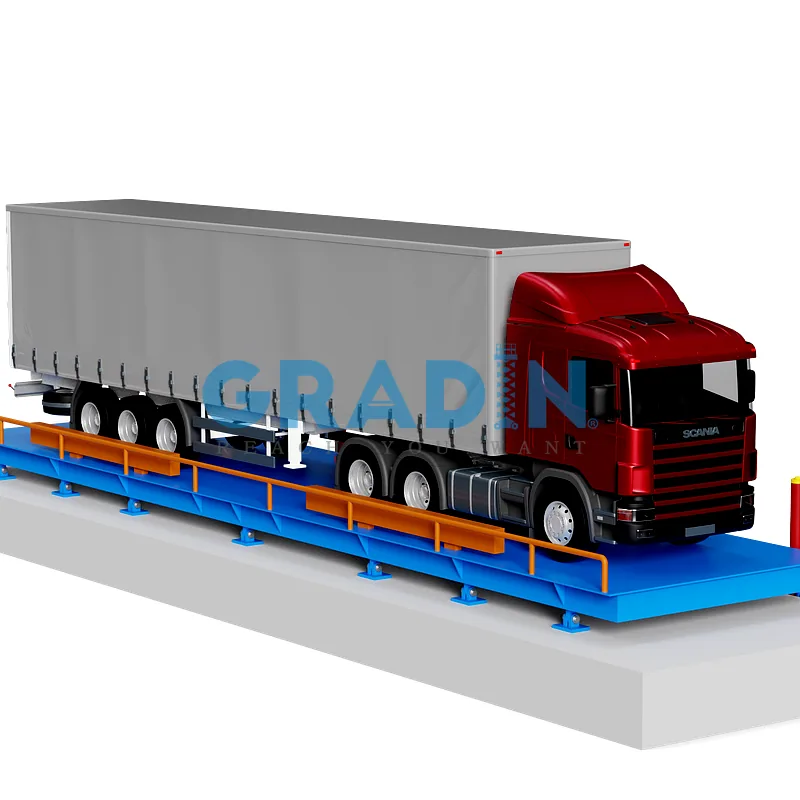

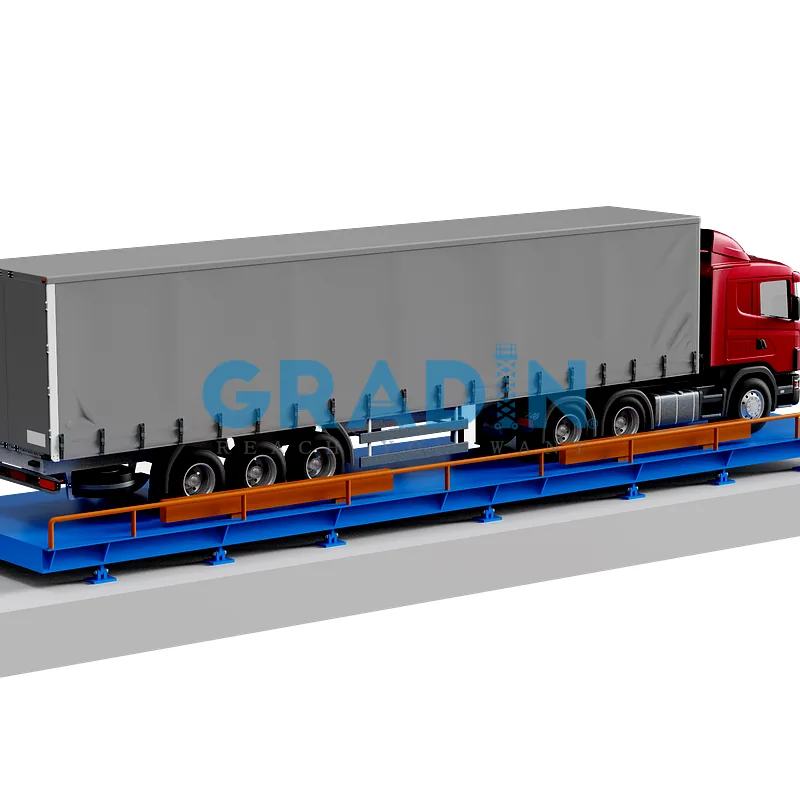

Gradin Bespoke Side-Tilting Unloader FEA-Validated Structural Integrity

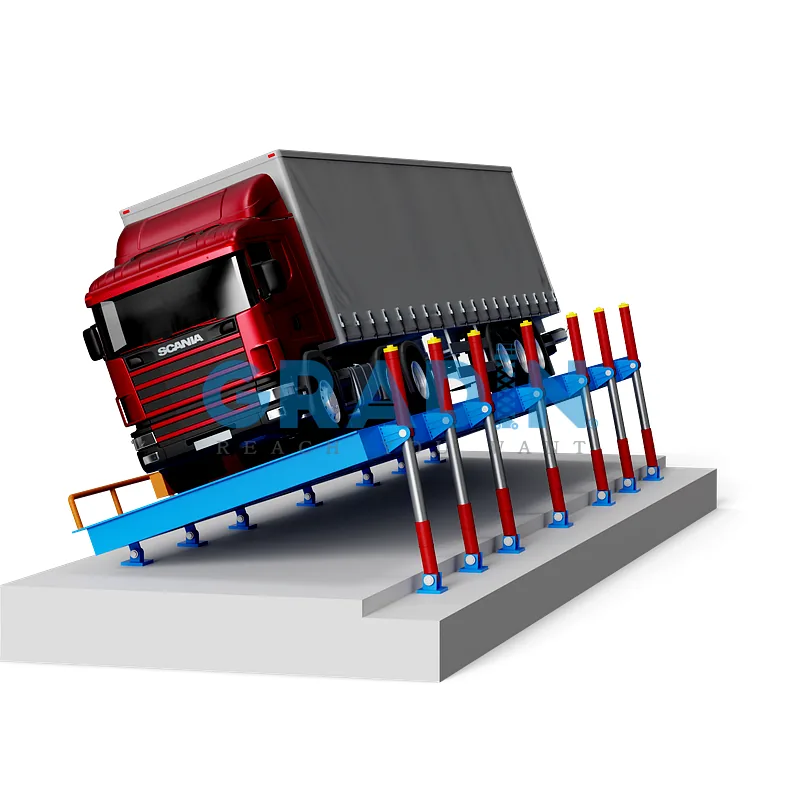

Tilting a 100-ton loaded truck sideways creates immense asymmetrical stress on the hinge points and the platform chassis. Every Gradin Bespoke Side-Tilting Unloader undergoes rigorous Finite Element Analysis (FEA) during the design phase to ensure absolute structural safety.
Torsional Rigidity: We utilize reinforced box-section high-tensile steel to prevent platform twisting during the tilting process.
Heavy-Duty Pivots: Our hinge systems are engineered with oversized, induction-hardened pins designed for high-frequency duty cycles.
Dynamic Load Handling: This engineering-first approach ensures a zero-fatigue lifespan even when handling off-center loads in high-throughput grain or mineral terminals.

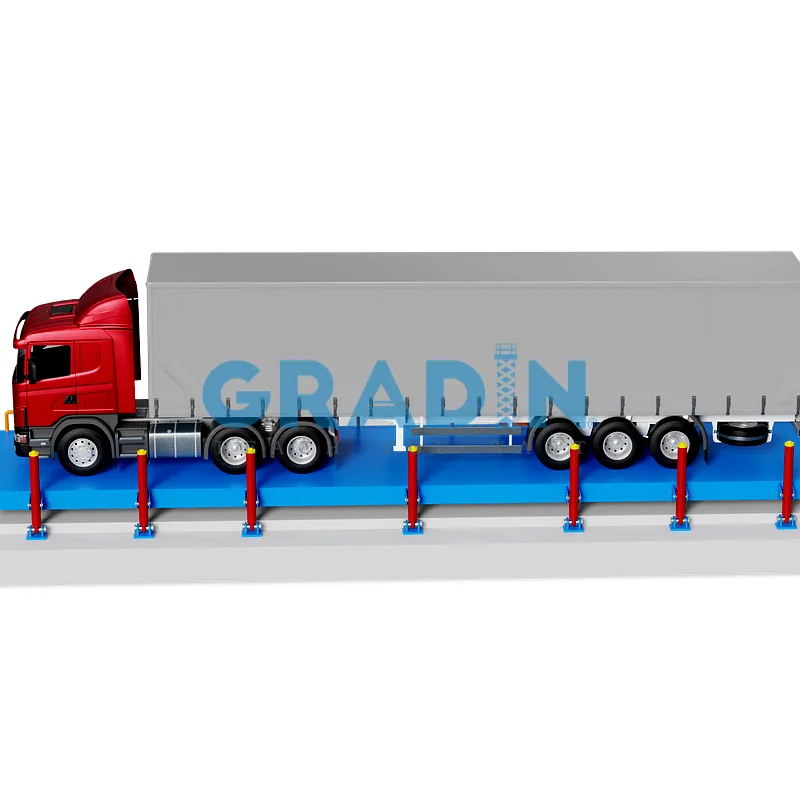

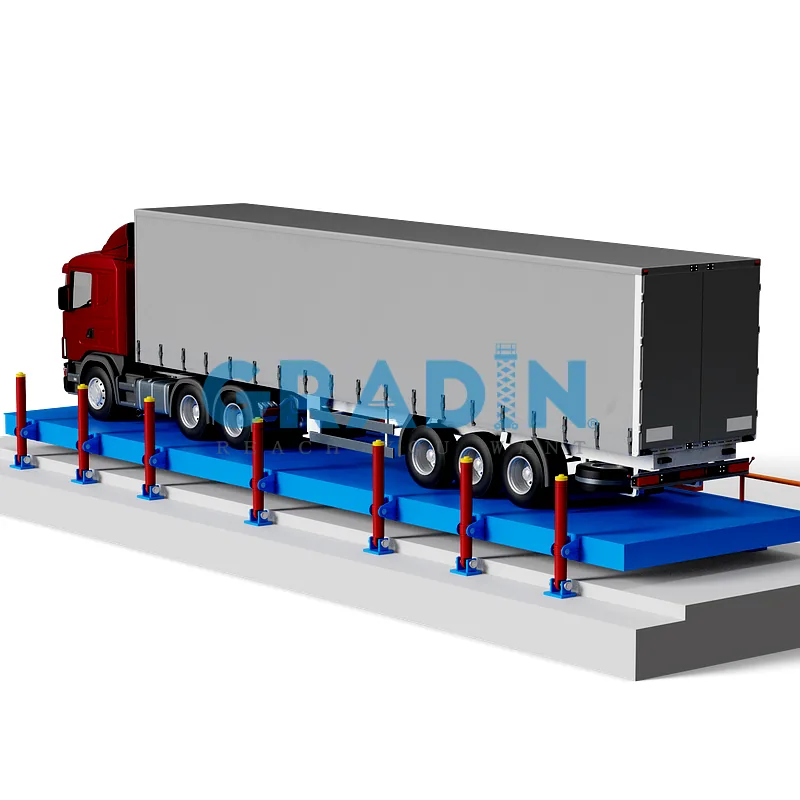

Gradin Bespoke Side-Tilting Unloader Precision Multi-Cylinder Synchronization

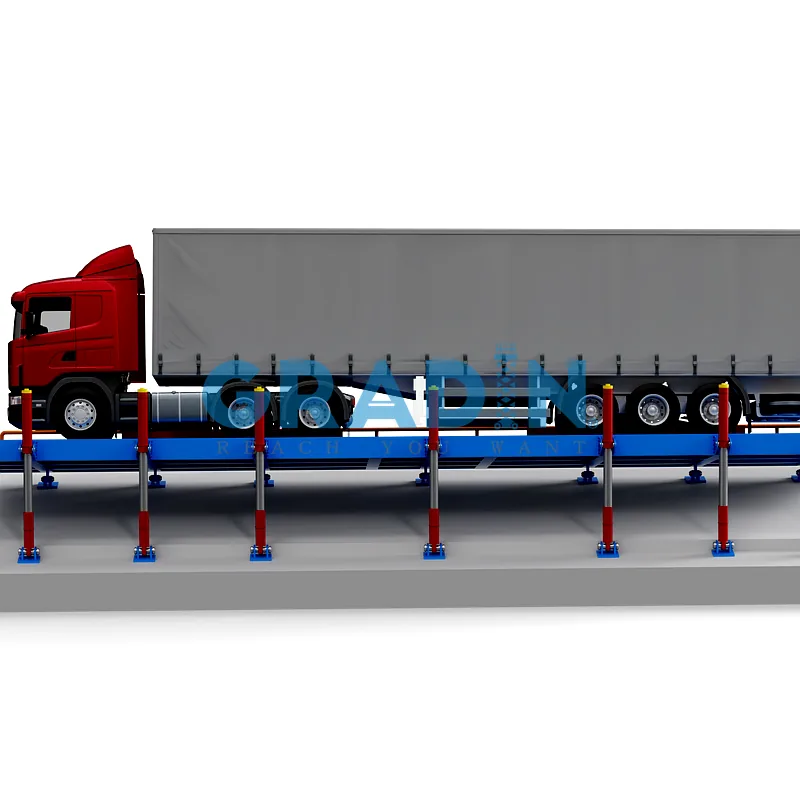

Maintaining a perfectly level tilt across a 24-meter platform is critical for mechanical longevity. The Gradin Bespoke Side-Tilting Unloader utilizes advanced proportional hydraulic technology to manage multiple heavy-duty cylinders.
Synchronized Flow: Our control logic ensures that all cylinders extend and retract in perfect unison, regardless of load distribution.
Soft-Start/Stop Transition: Unlike standard dumpers that shutter, Gradin systems provide a smooth, vibration-free motion that protects the truck chassis and the unloader frame.
Emergency Holding: We integrate safety-critical holding valves that lock the platform instantly in the event of a hydraulic pressure drop, ensuring total operator safety.
Gradin Bespoke Side-Tilting Unloader Environmental and System Integration
Bulk material discharge often creates significant dust and logistical bottlenecks. Every Gradin Bespoke Side-Tilting Unloader is designed for seamless facility integration.
Dust Suppression Logic: We can integrate bespoke dust hoods and air-sealing systems that activate automatically during the tilting cycle.
Automated Logistics: Through Profinet or EtherCAT, the unloader can communicate with your hopper gates and conveyor belts, creating a fully synchronized material flow.
Vehicle Positioning: Available with automated hydraulic wheel grippers and RFID sensors to ensure the truck is perfectly positioned and secured before the cycle begins.
[Agriculture & Grain] – High-Throughput Terminal Discharge
The Gradin Bespoke Side-Tilting Unloader is the premier professional choice for large-scale grain terminals and oilseed processing plants.
Rapid Cycle Times: Engineered to minimize truck turnaround time, maximizing the daily intake capacity of your facility.
Material Integrity: The controlled tilting speed prevents grain damage, while integrated dust suppression maintains a clean and safe working environment.
[Mining & Aggregates] – Heavy Mineral Bulk Handling
In the harsh environments of mining or cement production, equipment must withstand abrasive dust and extreme tonnage.
Extreme Load Capacity: We engineer these units with FEA-reinforced decks capable of handling 80-100 ton ore trucks 24/7.
Ruggedized Engineering: Customized with abrasion-resistant liners and sealed hydraulic units, ensuring reliable operation in high-dust, high-intensity mining logistics.
[Biomass & Waste Management] – Specialized Material Flow Solutions
Handling irregular, low-density materials like wood chips or waste requires specific tilting angles and platform geometries.

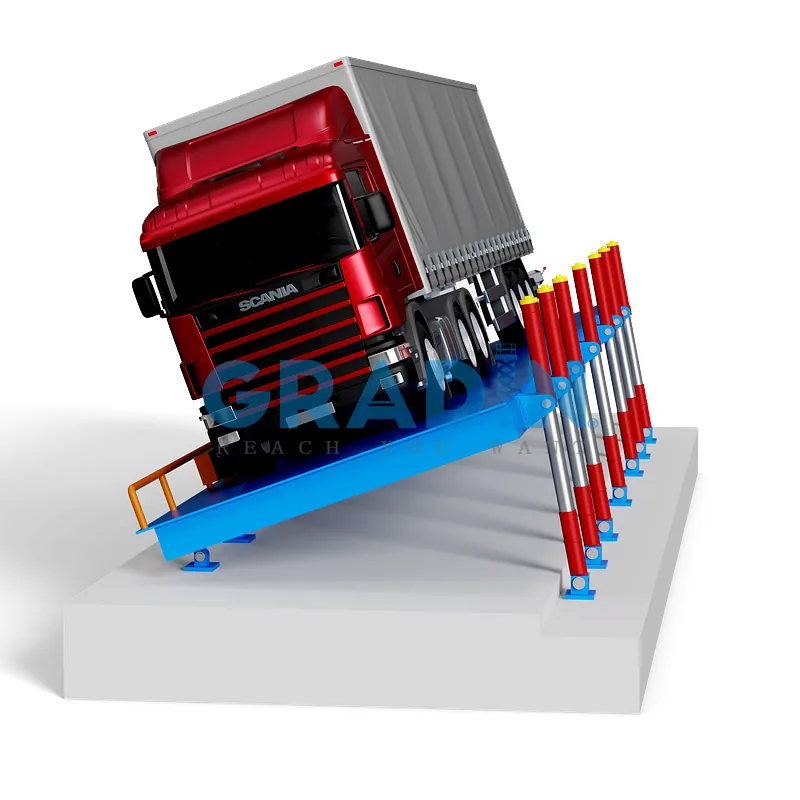

Optimized Tipping Angles: We customize the tilt angle (up to 45° or more) to ensure complete discharge of sticky or bridged materials.
Corrosion Protection: For waste management, we offer Hot-Dip Galvanized (HDG) or specialized coatings to protect the structure from corrosive leachates.
Redundant Safety Architecture and Automated Protection
Safety in heavy-duty tilting is our most critical engineering priority.
Hydraulic Fail-Safe: Every cylinder is equipped with velocity fuses and redundant check valves to prevent accidental descent.
Automated Securing: Our hydraulic wheel grippers and side safety rails ensure the vehicle is immobilized throughout the entire discharge cycle.
Intelligent Monitoring: Integrated with load cells and tilt sensors, the Siemens PLC will pause the cycle instantly if it detects any load shift or operational anomaly, ensuring total compliance with global industrial safety standards.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
