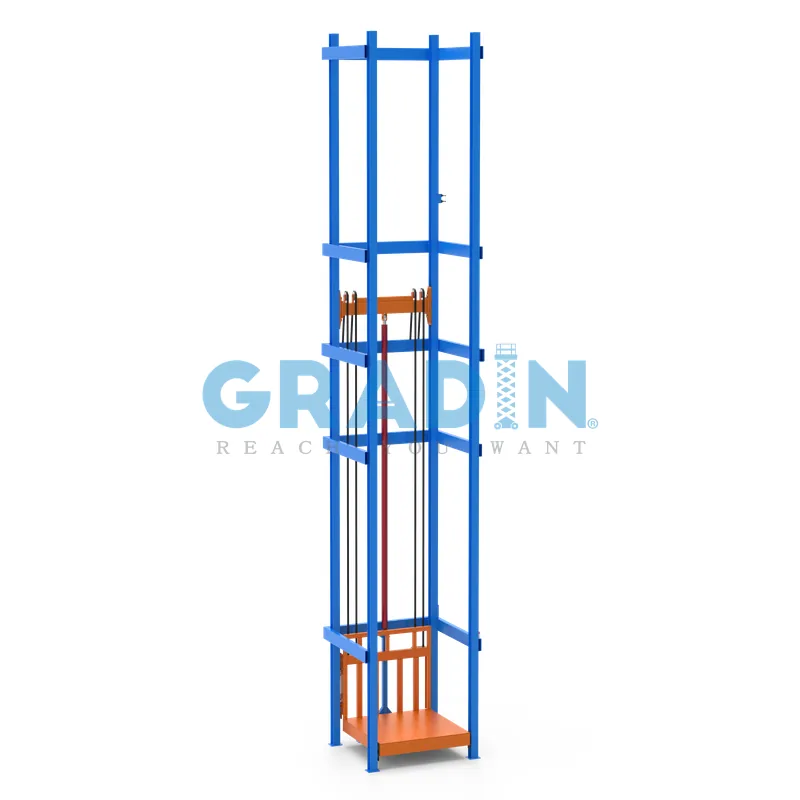

A single post cargo lift utilizes a heavy-duty cantilevered architecture to provide a vertical transport solution within an ultra-compact footprint. In facilities where floor space is at a premium, installing a traditional four-post lift is often architecturally impossible and obstructs critical aisle traffic. Gradin engineers these space-saving VRCs using a single, reinforced wide-flange steel mast and a high-torque hydraulic actuator designed to handle significant overhung loads without structural fatigue. This cantilevered design allows for 3-sided loading and unloading accessibility, maximizing logistical flexibility in tight corners or mezzanine edges. Every mast height, carriage size, and lifting capacity is custom-calculated to match your specific spatial constraints while sustaining reliable, high-cycle material transfer.
| Technical Category | Engineering Keys | Standard Reference | Gradin Bespoke (ETO Logic) |
| I. Performance | Rated Load Path | 500 kg – 2,000 kg | Scalable up to 150,000kg (Heavy-Industrial) |
| Vertical Pulse | Low Duty Cycle | S1-Class Continuous 24/7 Operations | |
| Leveling Tolerance | ± 40 mm | Laser-Corrected Sub-Millimeter (± 1 mm) | |
| II. Structural | Mast Configuration | Standard Rolled Beam | FEA-Optimized High-Yield Alloy Box-Mast |
| Actuation Kinematics | Single Chain Tension | Servo-Hydraulic / High-Torque Mechanical | |
| Surface Integrity | Basic Paint | C5-M Marine Grade / Anti-Static / Stainless | |
| III. Intelligence | Control Nucleus | Siemens S7-1500 | Profinet-Native / 5G Mesh Integration |
| Handshake Protocol | Discrete I/O | Full-Stack WMS / MES / AGV Interfacing | |
| Feedback Mechanism | Limit Switches | Absolute Encoders / Laser Rangefinders | |
| IV. Compliance | Risk Mitigation | Relay Interlocks | Active SIL 3 / Quad-Channel Redundancy |
| Global Norms | Local Codes | ASME B20.1 / ISO 13849-1 / OSHA |
In 150-ton vertical logistics utilizing a single-post configuration, the primary engineering failure is “carriage-droop” caused by massive cantilevered bending moments. Standard lifts often suffer from binding guide rollers and premature mast fatigue due to the asymmetrical distribution of weight. The Gradin Bespoke Single-Post Cargo Lift bypasses this through advanced Dynamic FEA Modal Analysis. Our team calculates the exact torsional stress generated when heavy powertrain components or oversized dies cross the platform threshold. We utilize high-yield alloy box-masts with internally reinforced structural ribs that absorb lateral forces. This ensures that even with a 150-ton off-center load, the platform remains perfectly horizontal, preserving the long-term structural integrity of both the lift and the building’s floor-slab. By focusing on structural rigidity rather than mere weight capacity, we deliver a vertical artery that resists the rotational deflection common in generic single-mast designs.
The success of a single-mast node depends on the absolute precision of the leveling logic to prevent AGV sensor trip-outs and drive-train fatigue. The Gradin Bespoke Single-Post Cargo Lift bypasses the “mechanical bounce” of traditional systems via a Closed-Loop Servo-Mechanical Architecture integrated natively into the drive pulse. Utilizing the Siemens S7-1500 PLC suite and high-resolution absolute encoders, the system achieves ±1mm floor-leveling accuracy. By monitoring real-time torque signatures and carriage-incline, the PLC adjusts motor velocity in milliseconds to compensate for load-shifting during ingress. This results in a seamless vertical artery that allows automated pallet-jacks and robotic shuttles to transition across the threshold with zero kinetic impact, which is essential for the longevity of your autonomous mobile robot (AMR) fleet.
As a native data gateway, every Gradin Bespoke Single-Post Cargo Lift is capable of generating a real-time Digital Twin for remote lifecycle management. We integrate multi-axis vibration sensors and drive-train thermal profilers directly into the control Nucleus. Through Profinet, EtherCAT, or 5G connectivity, the system reports its operational “health signature” directly to your Manufacturing Execution System (MES). This facilitates Predictive Maintenance Monitoring, where the system autonomously anticipates roller wear, chain-stretch, or guide-rail friction anomalies before they manifest as downtime. This level of data transparency transforms a compact vertical transporter into an intelligent industrial asset, guaranteeing 99.9% availability in high-stakes manufacturing environments where every minute of unplanned stoppage equates to significant revenue loss.
Moving sensitive photolithography tools requires a vertical link that minimizes footprint while maintaining absolute environmental sterility. The Gradin Bespoke Single-Post Cargo Lift is engineered with oil-free electromechanical actuators and stainless-steel cladding. Its single-mast design allows it to be integrated into existing cleanroom corners where space is restricted, providing a vibration-free vertical assembly link that meets ISO Class 5 particulate standards without compromising on 150T+ payload potential. The compact structural footprint ensures that valuable cleanroom real estate is maximized for production rather than material transit infrastructure.
In automotive manufacturing, vertical space is at a premium. Moving 50T–80T dies between ground storage and mezzanine press lines requires a lift that can handle high-tonnage point-loads without a massive structural footprint. The Gradin Bespoke Single-Post Cargo Lift provides the required rigidity through its FEA-optimized box-mast, allowing die-maintenance teams to transit high-value tooling with zero positional error. For integrated horizontal flow, consider our Gradin Bespoke Heavy-Duty Transfer Cart to complete the automated cell. By utilizing a single-post design, the system can be installed in tight gaps between existing press lines, bypassing the need for extensive facility remodeling.
In space-constrained urban warehouses, vertical throughput per square meter is the primary KPI. The single-post configuration allows for material transit in tight shafts that cannot accommodate dual-mast systems. By integrating high-speed power gates and WMS-ready handshakes, the Gradin system manages 100+ heavy pallets per hour. Its sub-millimeter leveling ensures that automated robotic fleets can transition from floor to lift with zero latency, effectively tripling the vertical capacity of the urban logistics infrastructure while maintaining absolute safety perimeters for human operators in the vicinity.
Safety in high-tonnage, space-restricted vertical logistics is the core of the Gradin Bespoke Single-Post Cargo Lift design mandate. We exceed international regulatory codes through a multi-layered redundancy loop:
Active SIL 3 Risk Mitigation: We integrate ultra-fast torque-limiting logic and redundant SICK Safety Scanners on every level. Any obstruction or drive deviation triggers a Category-0 stop in milliseconds.
Fail-Safe Mechanical Arrestors: Secondary anti-fall cams engage the guide rails instantly in the event of drive-tension loss, ensuring the heavy platform remains static even during a total power failure, meeting the highest ASME B20.1 requirements.
Perimeter Safety Interlocks: Full-height enclosures and high-speed power doors are electronically interlocked with the safety PLC logic to ensure zero operator access during the vertical pulse, meeting all global ISO 13849-1 and OSHA directives for heavy industrial machinery.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
