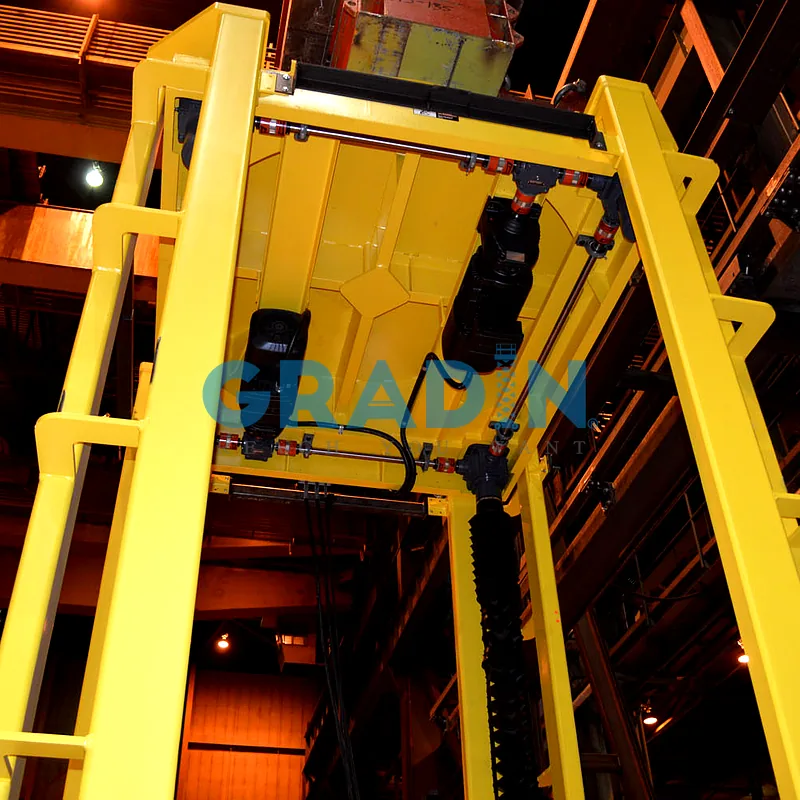

This Turbine Assembly Lift acts as a specialized vertical positioning station for the high-precision alignment of power generation rotors, stators, and casings. Built by Gradin as a custom engineered-to-order (ETO) solution, the system is designed to handle the massive concentrated loads inherent in turbine manufacturing and MRO (Maintenance, Repair, and Overhaul) operations. Engineered for extreme stability, the platform features a high-rigidity structural frame and precision synchronization to ensure a perfectly level lift even with eccentric weight distributions. Capable of supporting multi-shift duty cycles, this Turbine Assembly Lift provides technicians with safe, ergonomic access to critical components, eliminating the need for complex crane rigging and ensuring a stable, vibration-free interface for mission-critical assembly sequences where sub-millimeter accuracy is the standard.
| Technical Category | Key Parameters | Standard Reference | Gradin Bespoke Options (ETO) |
| I. Core Performance | Rated Payload Capacity | 20,000 kg (20 Tons) | Scalable 10,000kg to 100,000kg (100T) |
| Positioning Accuracy | ± 0.5 mm | Micron-Level Precision (± 0.02 mm) | |
| Raising/Lowering Mode | Servo-Hydraulic / Screw | Hybrid Synchronized Drive Systems | |
| Vertical Stroke (Height) | 2,000 mm | Variable Stroke up to 8,000 mm+ | |
| II. Structural & Material | Chassis Engineering | Heavy-Duty Box Section | FEA-Optimized High-Rigidity Alloy Steel |
| Platform Surface | Non-Slip Machined Steel | Bespoke Turntables / V-Blocks / Padded Jigs | |
| Protection | Basic Industrial Paint | Anti-Static / Cleanroom Grade / Stainless | |
| Pivot Technology | High-Load Bearings | Zero-Maintenance Hardened Pivot Pins | |
| III. Control & Logic | Control System (PLC) | Push Button | Siemens S7-1500 / PC-Based NC Logic |
| Handshake Protocol | I/O Signals | Profinet / EtherCAT / TCP/IP Integration | |
| Feedback System | Limit Switches | Absolute Encoders / Laser Rangefinders | |
| Drive Logic | On/Off Control | Advanced Proportional Speed Control | |
| IV. Environment & Safety | Operating Temperature | -10°C to +40°C | Class 100 Cleanroom or High-Heat (+80°C) |
| Safety Interlocks | Mechanical Stops | Software Safety Envelopes / Load Monitoring | |
| Emergency Measures | Descent Valve | Anti-Burst Valves / Redundant Power Units | |
| Compliance Standard | CE / ISO 9001 | Compliance with OSHA / ASME / AS3000 |
FEA-Validated Structural Rigidity and Torsional Resistance
The assembly of a 50-ton turbine core requires a platform that remains perfectly level under shifting centers of gravity. Every Gradin Bespoke Turbine Assembly Lift undergoes rigorous Finite Element Analysis (FEA) to simulate high-tonnage loads and eccentric stresses.
Zero-Deflection Engineering: We utilize high-tensile, box-section structural steel engineered to manage massive axial and lateral forces.
Structural Stability: Our chassis design ensures that even at maximum vertical extension, the mast remains rigid, preventing any misalignment during the critical bolting phase.
Long-Term Reliability: By analyzing the stress distribution at every pivot point, we eliminate mechanical fatigue, providing a stable vertical conduit for your high-value energy assets.
Precision Proportional Control and Sub-Millimeter Leveling
When docking a turbine rotor with its casing, there is no room for error. The Gradin Bespoke Turbine Assembly Lift utilizes advanced proportional hydraulic technology or high-precision servo-screw drives.
Synchronized Motion Logic: Integrated with Siemens S7-1500 PLC, our system ensures perfectly smooth vertical transitions with zero “jerky” movement.
Micron-Level Docking: We utilize high-resolution absolute encoders and laser rangefinders to achieve a leveling accuracy of up to ±0.02mm.
Vibration Control: The drive system is calibrated for a “soft-start/soft-stop” profile, protecting sensitive internal components and avionics from any inertial shock during the assembly process.
Modular Interface and Industry 4.0 Connectivity
Modern aerospace and energy manufacturing demand equipment that functions as part of an integrated data network. Every Gradin Bespoke Turbine Assembly Lift is built with an open-architecture control system.
Metrology Integration: Our lifts can be direct-linked to Laser Trackers (e.g., Leica or Faro), allowing the platform to automatically adjust its height based on real-time spatial data.
Digital Traceability: Through Profinet or EtherCAT, the lift provides a full data log of every adjustment cycle, satisfying stringent quality audit requirements in the aerospace industry.
Custom Tooling: We customize the top platform with integrated turntables, vacuum jigs, or specialized non-marking cradles bespoke to your specific component geometry.
[Energy & Power] – Steam and Gas Turbine Maintenance
The Challenge: Maneuvering 60-ton turbine rotors in restricted bays where standard cranes cannot provide the necessary micro-adjustment.
Gradin Solution: Our Bespoke Assembly Lift provides a stable, high-capacity platform that allows technicians to perform precision alignment and bolting with absolute confidence, reducing maintenance downtime by up to 40%.
[Aerospace] – Jet Engine Final Assembly and Nacelle Docking
The Challenge: Handling vibration-sensitive aerospace cores in cleanroom environments where micro-adjustments and zero-contamination are required.
Gradin Solution: Engineered with cleanroom-grade coatings and sealed electronics, our lifts provide the vibration-free vertical flow needed to dock jet engines with fuselage sections or test stands with sub-millimeter precision.
[Wind Energy] – Hub and Nacelle Component Integration
The Challenge: Integrating heavy internal components within wind turbine nacelles where space is limited and load centers are heavily offset.
Gradin Solution: We customize the FEA-reinforced 4-post or scissor mast to fit within the facility’s footprint while providing the extreme tonnage required. Our proportional control ensures the hub components are positioned perfectly for ergonomic bolting.
Redundant Safety Architecture and Precision Monitoring Logic
Safety in high-tonnage, high-value assembly is our most critical engineering priority.
Hydraulic Fail-Safe: Every unit is integrated with redundant velocity fuses and anti-burst valves that lock the platform instantly if a pressure drop is detected.
Active Perimeter Protection: We offer synchronized safety interlocking with perimeter laser scanners and light curtains—the lift executes a controlled halt if an operator enters the hazard zone.
Load Monitoring: Integrated load cells provide real-time feedback on weight distribution, ensuring that the Gradin Bespoke Turbine Assembly Lift protects your personnel and your high-value assets throughout the entire assembly cycle.
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
