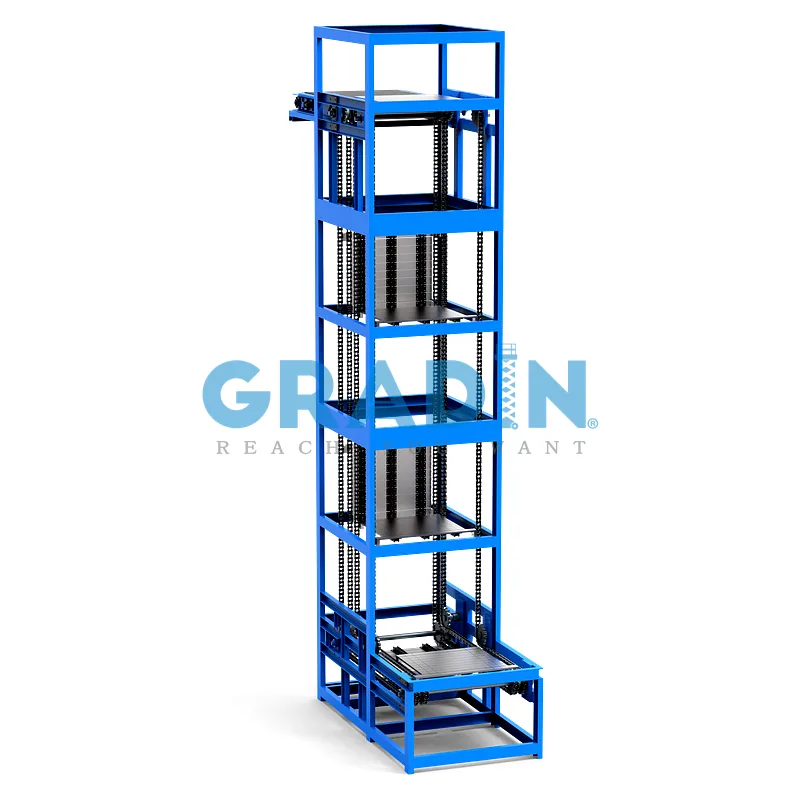

A mechanical vertical conveyor engineered for high-frequency, non-stop material flow. 100% custom-built to your facility’s layout, it utilizes synchronized high-tensile chains and closed-loop VFD control to eliminate product jamming and precisely match your specific production pacing.
Custom Carriers: Geometries engineered specifically for your unique cartons, totes, or machined parts.
Variable Throughput: VFD-regulated continuous velocity to sync flawlessly with existing upstream/downstream lines.
Kinetic Durability: Rigorously factory load-tested to eliminate chain stretch under continuous, high-cycle operation.
| Technical Category | Key Parameters | Standard Reference | Gradin Bespoke Options (ETO) |
| I. Core Performance | Rated Throughput | 60 – 120 Units/Hr | High-Velocity (600 – 1,200+ Units/Hr) |
| Payload per Carrier | 500 kg | Scalable up to 5,000kg+ per carrier (150T System) | |
| Positioning Accuracy | ± 15 mm | Millimeter-Level Calibration (± 1 mm) | |
| Noise Emission Level | < 80 dB | Ultra-Quiet Logistics (< 62 dB) | |
| II. Structural & Material | Drive Medium | Standard Roller Chain | High-Tension Synchronized Belt / Lubrication-Free Chain |
| Mast Engineering | Rolled Steel Frame | FEA-Optimized Quad-Mast High-Rigidity Steel | |
| Surface Finish | Industrial Paint | C5-M Marine / Stainless Steel / Anti-Static | |
| Carrier Platform | Fixed Metal Tray | Motorized Roller / Pivoting / Anti-Vibration Deck | |
| III. Control & Intelligence | Control System (PLC) | Basic PLC | Siemens S7-1500 / Allen Bradley / 5G |
| Communication Protocol | Standard Wi-Fi | Profinet / EtherCAT / TCP-IP Integration | |
| System Connectivity | Standalone | Full WMS / MES / Industry 4.0 Integration | |
| Feedback Mechanism | Proximity Sensors | Absolute Encoders / Laser Rangefinders | |
| IV. Environment & Safety | Operating Temperature | 0°C to +40°C | Extreme Cold (-40°C) / High-Heat / Cleanroom |
| Safety Gate Logic | Manual Interlock | Fully Automated High-Speed Power Gates | |
| Emergency Measures | E-Stop Button | Multi-Layer Jam Detection / Active Brake Monitoring | |
| Compliance Standard | CE | Full OSHA / ASME / AS3000 / ISO 13849 Compliance |

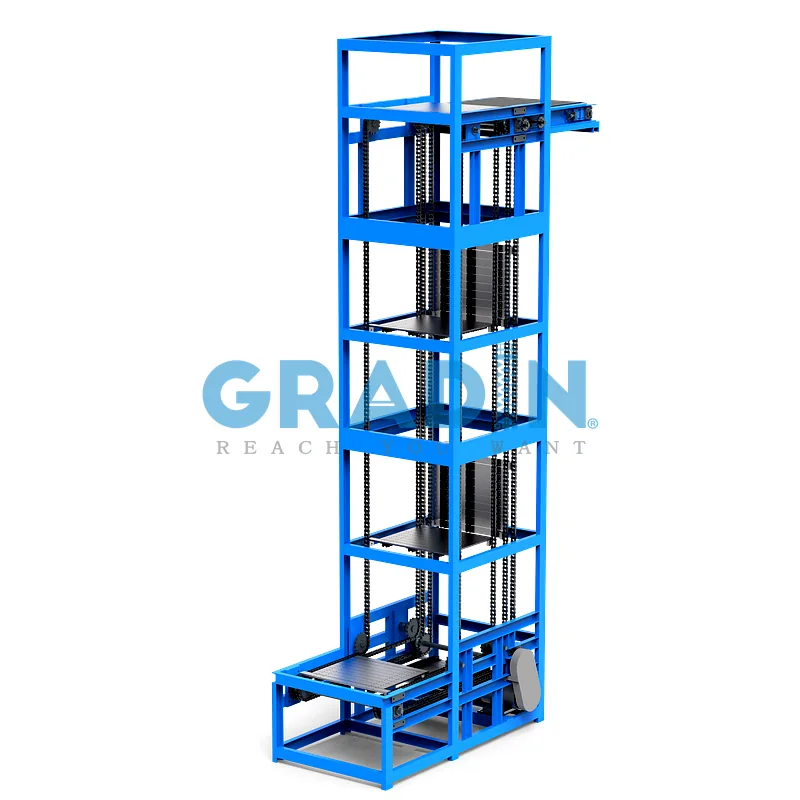

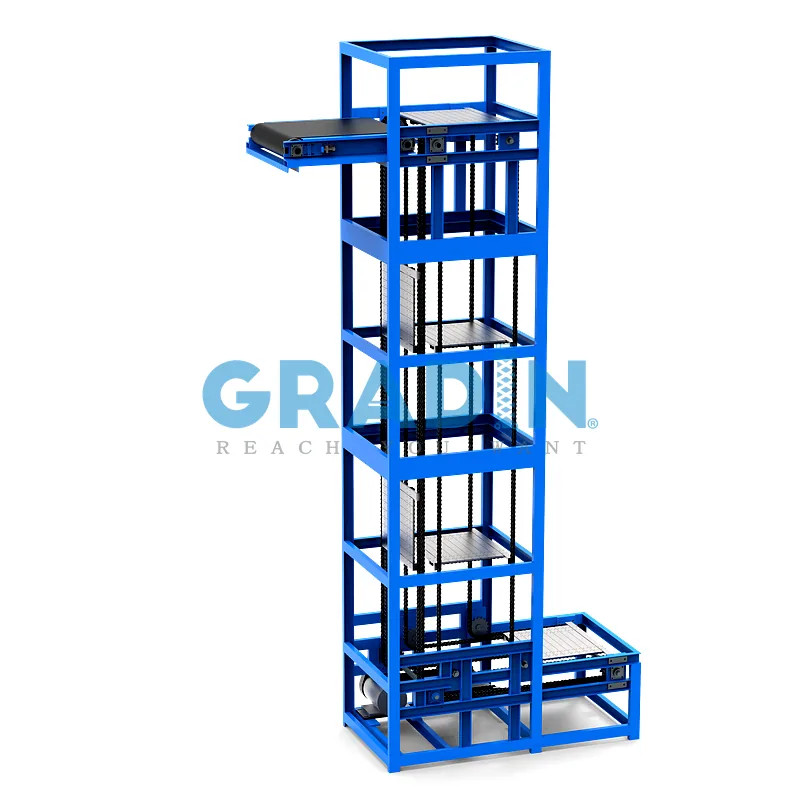

FEA-Validated Structural Integrity and Harmonic Resonance Control
Operating a continuous flow system at high tonnage introduces significant dynamic frequencies that can degrade standard structures. Every Gradin Z-Type Continuous Lift System undergoes rigorous Finite Element Analysis (FEA) to ensure the masts and carrier tracks maintain absolute rigidity under 24/7 high-cycle loading.
Dynamic Load Absorption: Our high-yield alloy steel masts are engineered to neutralize the kinetic energy of multiple carriers moving simultaneously, preventing “mast-sway” even at vertical heights exceeding 30 meters.
Vibration-Free Transitions: We utilize precision-machined guide rails and vibration-dampening carrier mounts to ensure a perfectly smooth vertical flow, protecting sensitive high-value cargo from mechanical fatigue.

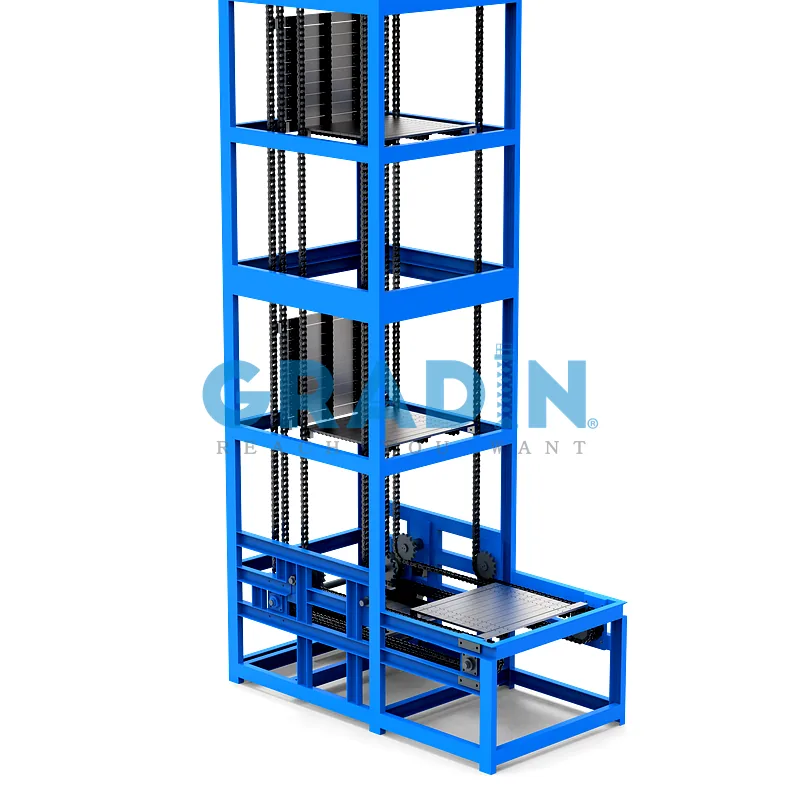

Z-Path Stability: The structural architecture is specifically optimized for the “Z” configuration (opposite side entry/exit), ensuring that horizontal forces during loading and unloading are balanced through the central mast spine.

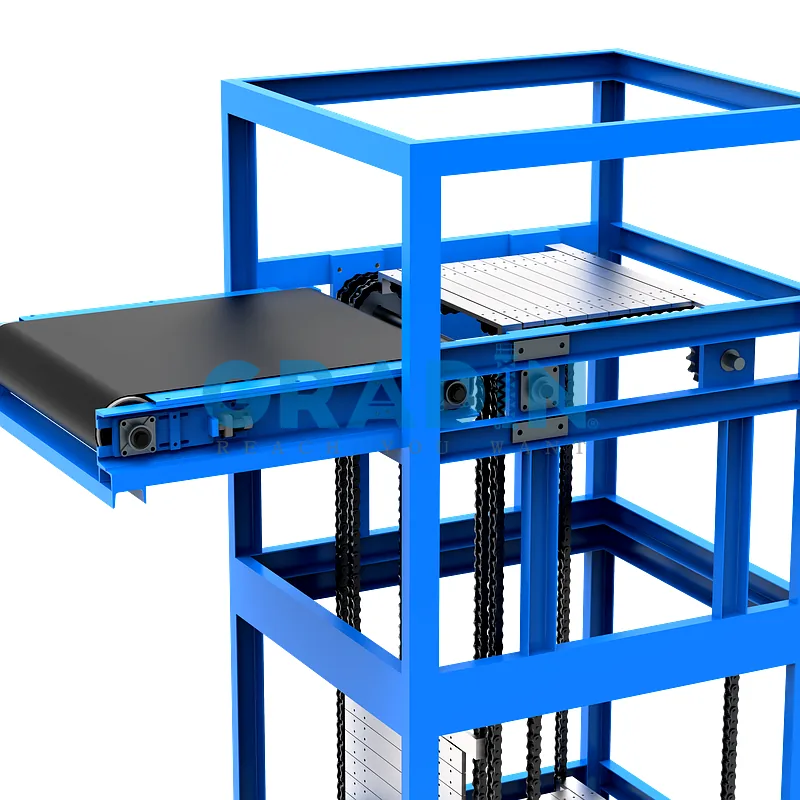

Synchronized Multi-Carrier Actuation and Precision Motion Control
The core of a continuous lift is its ability to maintain a non-stop, synchronized pulse. Gradin’s Bespoke Motion Control architecture eliminates the latency and “jerking” found in standard vertical conveyors.

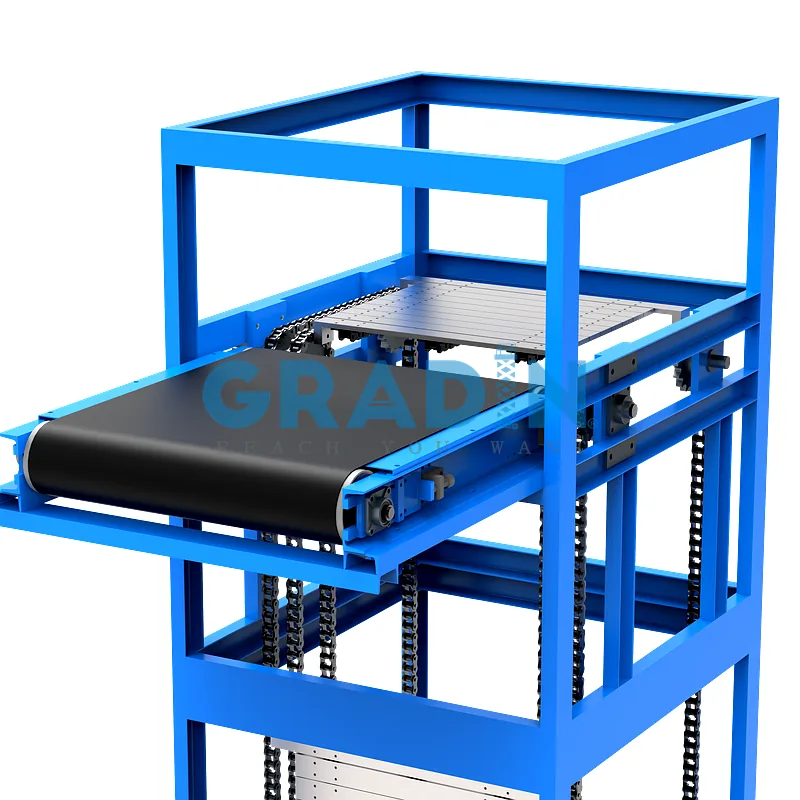

Closed-Loop Synchronous Drive: Utilizing Siemens S7-1500 PLC logic, the system achieves millimeter-exact positioning (±1mm) at both the infeed and outfeed stations, ensuring seamless handshakes with AGVs or automated conveyor lines.
Intelligent Buffer Logic: The control system can dynamically adjust carrier speeds to act as a vertical buffer, compensating for downstream bottlenecks without stopping the entire production line.
Acoustic Optimization: By utilizing steel-core polyurethane belts or specialized non-friction chain guides, we reduce the operational noise floor to below 62 dB, meeting the strictest ergonomic standards for 24-hour facilities.
Industry 4.0 Connectivity and Automated Factory Integration
A high-throughput lift must function as a transparent data node within your facility’s digital nervous system. Gradin provides a native Industry 4.0 Ready control suite for the modern smart factory.
Real-Time Data Handshake: Native support for Profinet and EtherCAT enables the lift to communicate status updates, carrier occupancy, and energy consumption directly to your Manufacturing Execution System (MES).
Predictive Maintenance Monitoring: Integrated sensors track drive torque profiles and chain/belt tension in real-time. The system utilizes machine learning algorithms to predict wear, alerting maintenance teams weeks before a potential failure occurs.
Autonomous Traffic Sequencing: The system autonomously manages pallet priority and sequencing, ensuring that the highest priority loads are moved through the Z-path with zero delay.
[E-commerce Fulfillment] – Ultra-High Throughput Vertical Sortation
The Challenge: Moving 800+ totes per hour from multi-level picking mezzanines to ground-level packing stations with zero downtime and minimal noise.
Gradin Solution: A high-speed Z-Type Continuous Lift System with low-friction carriers. The Z-configuration allows for a straight-through conveyor flow, eliminating complex turning maneuvers and maximizing “items-per-minute” metrics.
[Automotive Powertrain] – Heavy Engine Block Transit
The Challenge: Continuous vertical transfer of 2.5T engine blocks between machining floors. The system must maintain absolute horizontal alignment to prevent oil-leakage or component shifting.
Gradin Solution: A heavy-duty, quad-mast continuous lift with FEA-validated reinforced carriers. The synchronized drive ensures that even under maximum payload, the engine blocks transit without vibration or tilt.
[Cold Chain & Food] – Cleanroom-Compliant Frozen Goods Transfer
The Challenge: Moving palletized frozen goods in a -30°C environment where lubrication would freeze and metal-to-metal contact creates dust contamination.
Gradin Solution: A bespoke Z-Type Continuous Lift System featuring oil-free belt drives and stainless-steel cladding. The system functions as a high-speed thermal airlock, moving goods vertically while maintaining strict temperature and hygiene protocols.

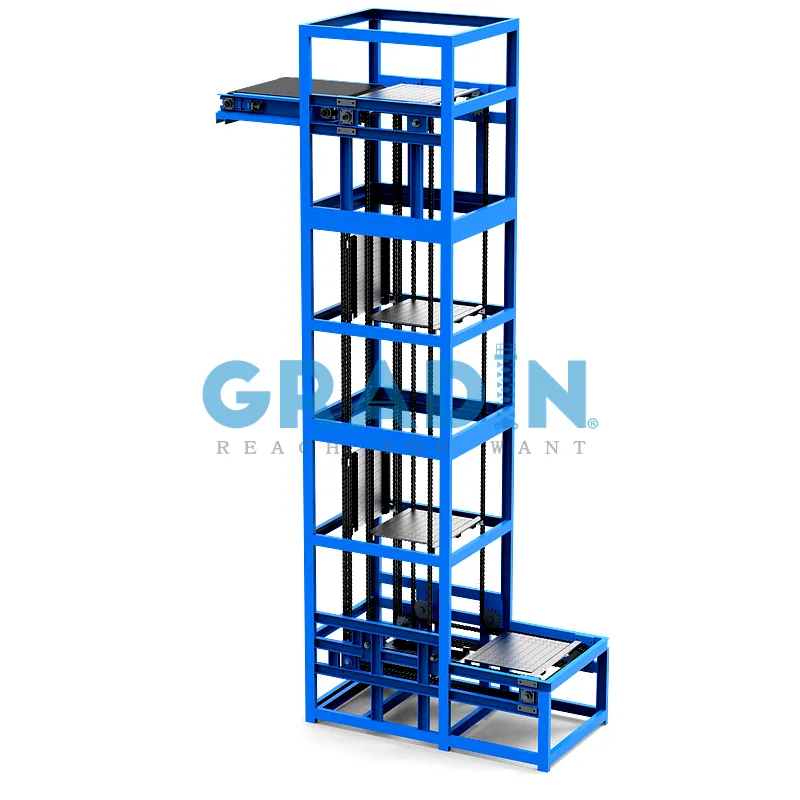

Q1: Why choose a Z-Type configuration over a C-Type?

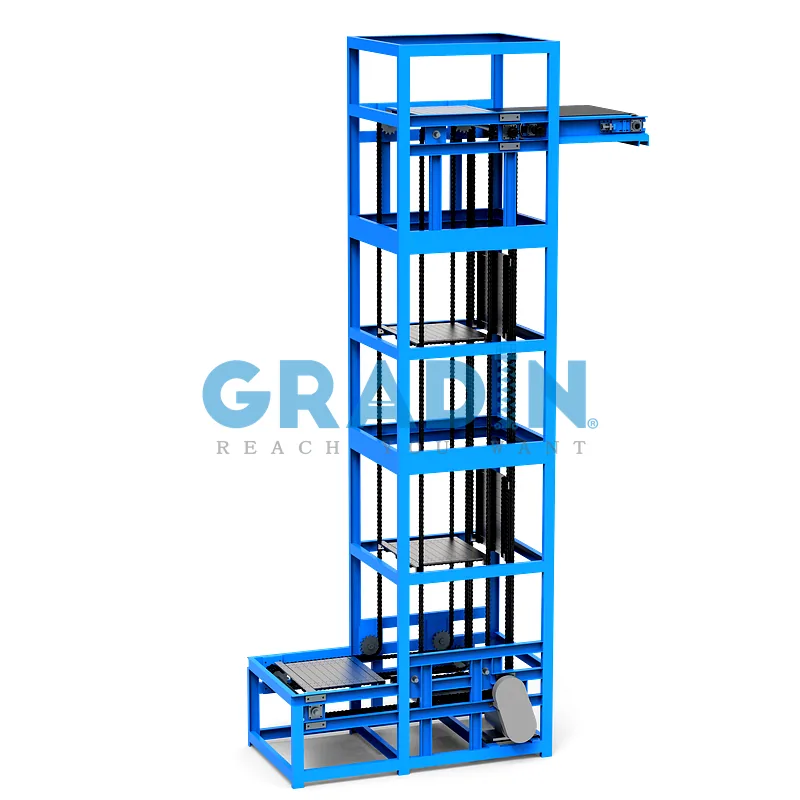

A: The Z-Type configuration (Entry Front / Exit Rear) is engineered for “straight-through” facility layouts. It allows for a more efficient conveyor flow as it eliminates the need for 180-degree pallet rotation at the exit, making it the superior choice for high-speed automated warehouses.
Q2: How does Gradin ensure safety in a non-stop continuous system?
A: We deploy a redundant safety loop including ultra-fast light curtains and carrier-jam sensors. If an obstruction is detected at any entry/exit point, the S7-1500 PLC executes a Category-0 stop in milliseconds, preventing damage to the system or cargo.
Q3: Can the system handle loads as heavy as 150T?
A: Yes. While standard continuous lifts are for smaller totes, Gradin’s ETO Heavy-Duty Series utilizes multi-mast synchronized drives and high-tensile structural trays specifically engineered to handle high-density industrial loads (such as steel coils or battery arrays) in a continuous flow.

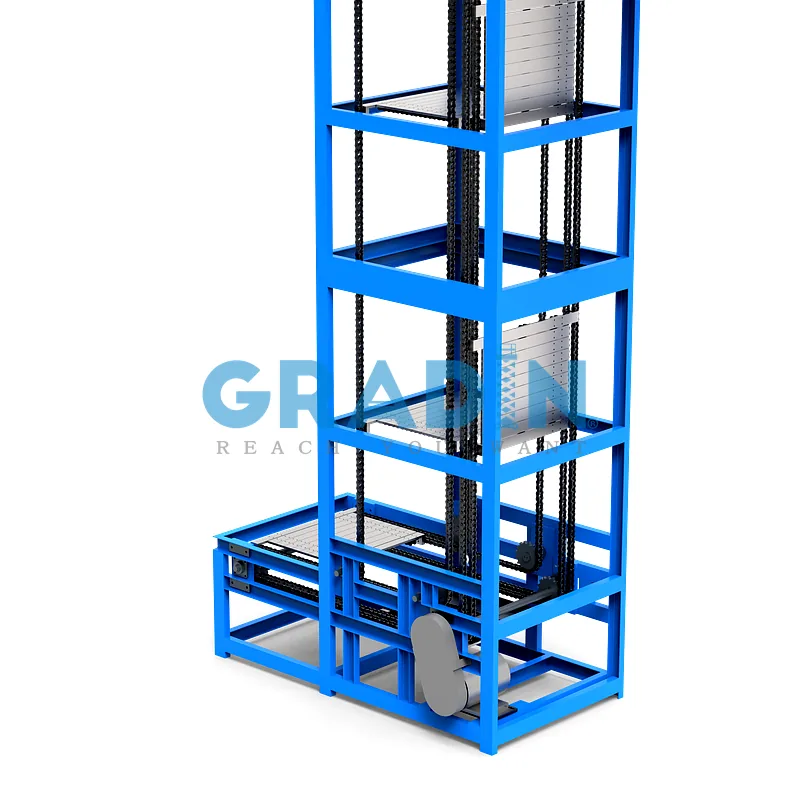

Redundant Safety Architecture and Active Monitoring Logic
Safety in high-speed, multi-carrier vertical logistics is our most critical engineering priority.
Active Anti-Fall Protection: Each carrier is equipped with secondary mechanical lockouts. If drive tension is lost, the carriers are mechanically secured to the guide rails instantly.
Integrated Perimeter Interlocking: We design fully enclosed shaft guarding with high-speed power doors, interlocked directly with the lift’s safety PLC to ensure zero operator access during operation.
Fail-Safe Braking System: Redundant electromagnetic brakes on the primary drive motor provide a 200% holding torque safety margin, ensuring the multi-carrier loop remains static during emergency stops (ISO 13849-1 / CE / OSHA).
For this heavy-duty series, we can engineer load capacities up to [300] tons, with platform dimensions and lifting heights customized to your operational envelope. Requirements exceeding our standard engineering matrix will undergo a Finite Element Analysis (FEA) by our engineering team to ensure structural viability before proposing a solution.
To initiate the engineering proposal, please provide the following baseline data:
Rated Load Capacity
Maximum Lifting Height & Closed Height
Platform Dimensions (L x W)
Duty Cycle (e.g., operational cycles per hour/day)
Environmental Conditions (e.g., indoor/outdoor, washdown, explosion-proof)
Pit depth or overhead clearance constraints
Yes. The control systems can be equipped with standard communication protocols (e.g., Profinet, Modbus, Ethernet/IP) utilizing [Siemens / Allen-Bradley / Omron] PLCs. This ensures seamless I/O signal synchronization with upstream/downstream conveyors, AGV/AMR units, and your central control room.
Every custom unit undergoes a mandatory Factory Acceptance Test (FAT) prior to dispatch. This includes continuous operational testing at 100% rated load, static overload testing at [120% / 125%] capacity, and the physical triggering of all mechanical anti-fall and hydraulic safety interlocks. FAT documentation and video proof are included in your engineering package.
Upon final approval of the General Arrangement (GA) drawings, the manufacturing lead time is typically 4 to 8 weeks. Oversized structural components are engineered with a modular design to fit into standard shipping containers (20FT/40HQ). On-site assembly utilizes pre-engineered bolted flange connections and heavy-duty aviation plugs, strictly eliminating the need for field welding.
We provide a standard [12/24]-month warranty covering the structural frame and primary hydraulic/electrical components. To minimize operational downtime, a comprehensive set of standard consumables (e.g., cylinder seal kits, travel switches, relays) is shipped alongside your equipment. During the warranty period, replacement parts for non-human-induced failures are dispatched via priority air freight (DHL/FedEx) within 48 hours.
Beyond the warranty, we guarantee lifetime engineering support. Your custom equipment's CAD drawings, electrical schematics, and BOM (Bill of Materials) are permanently archived in our system. This ensures you receive uninterrupted remote troubleshooting, maintenance guidance, and exact spare parts matching for the entire lifecycle of the equipment.
