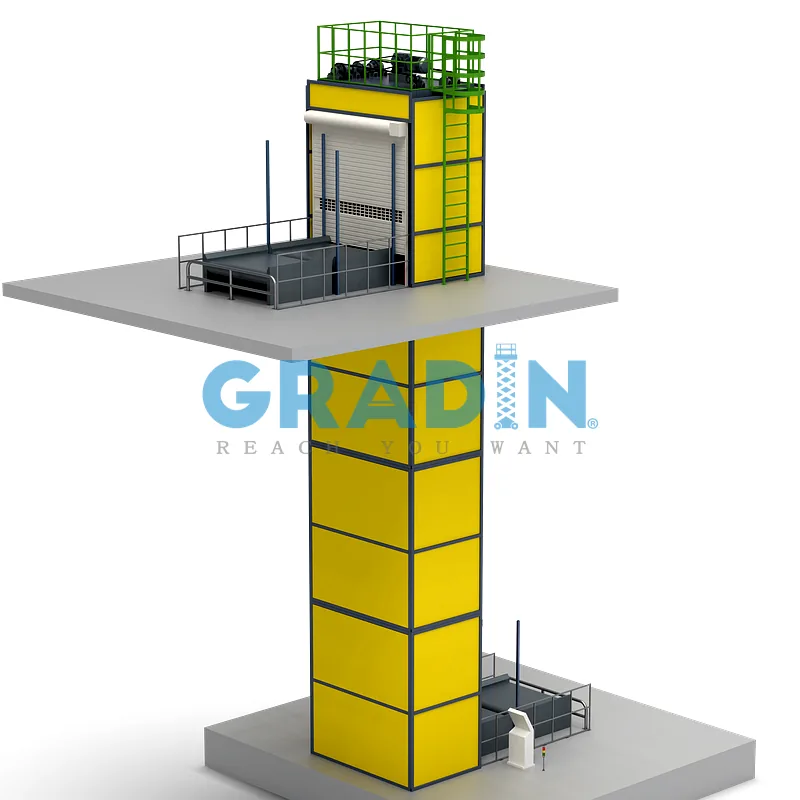

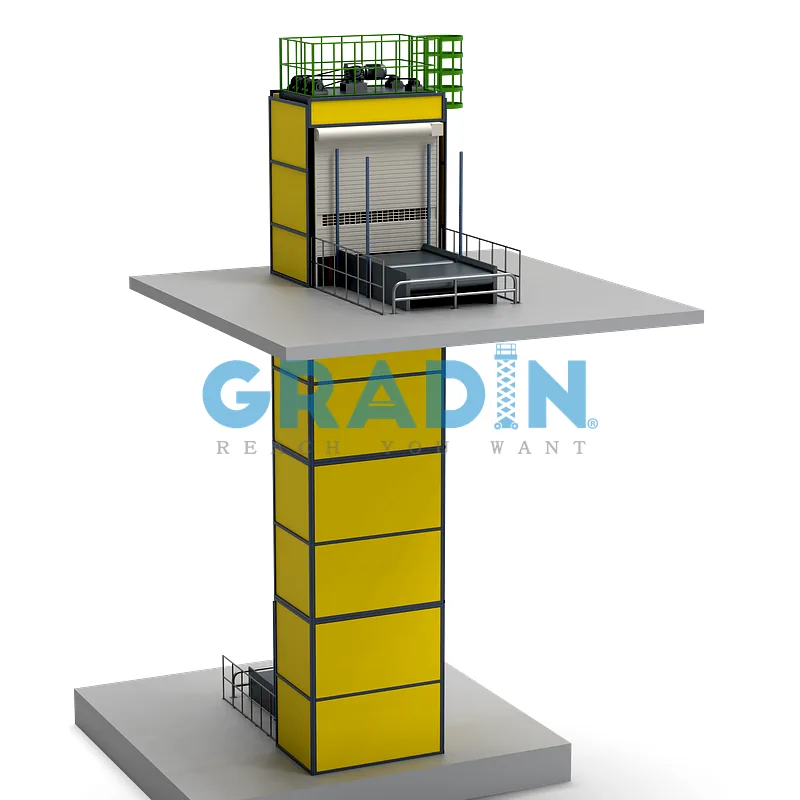

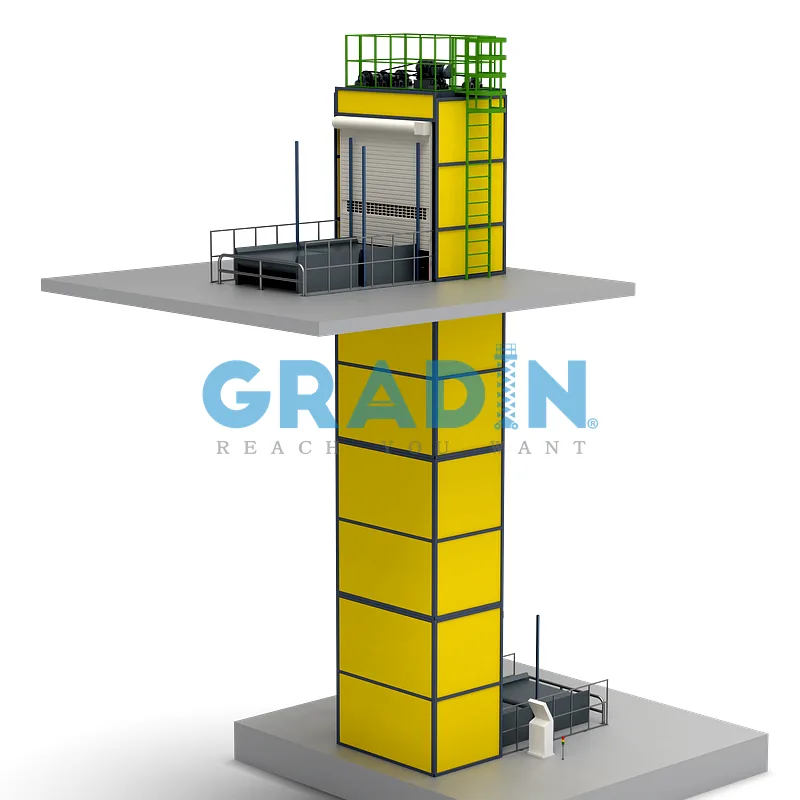

Engineering Excellence of the Gradin Bespoke Automated VRC

FEA-Validated Structural Integrity for 150-Ton Dynamic Loads
Lifting a 150-ton load in an automated environment requires a structure that can manage massive dynamic forces during high-speed induction. Every Gradin Bespoke Automated VRC installation undergoes rigorous تحليل العناصر المحدودة (FEA) during the design phase.

• Zero-Deflection Masts: We utilize reinforced high-tensile box-section steel masts engineered to maintain absolute structural rigidity at heights up to 35 meters.

• Asymmetrical Load Stabilization: Our carriage designs are specifically reinforced with energy-absorbing guide rollers to handle the lateral forces of automated conveyor transfers.

• Dynamic Stress Management: This engineering-first approach ensures the system maintains absolute stability over millions of high-throughput cycles, protecting your personnel and your high-value assets.

Intelligent PLC Handshake and Millimeter-Perfect Docking Logic
The success of an automated logistics hub is defined by the micro-second timing between horizontal transport and vertical transit. The Gradin Bespoke Automated VRC utilizes advanced synchronized drive technology combined with closed-loop Siemens logic.

• Synchronized Motion Control: Utilizing Siemens S7-1500 PLC logic, the system achieves perfectly smooth vertical transitions, eliminating the “carriage bounce” found in standard goods lifts.

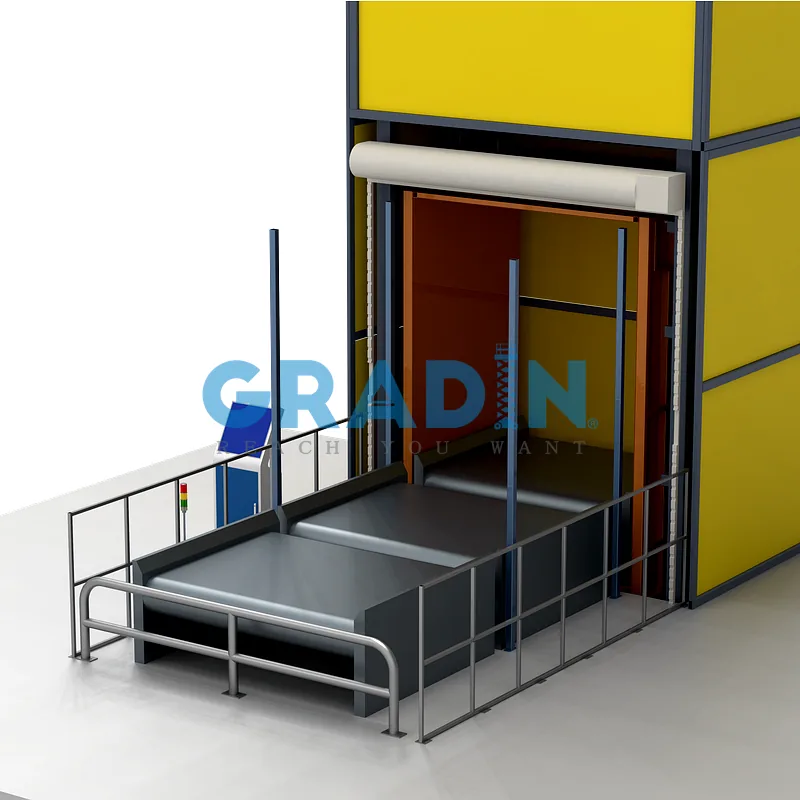

• Millimeter Accuracy: High-resolution absolute encoders and laser distance sensors ensure the platform aligns with floor-level conveyors or AGV docking stations with an accuracy of ±1mm.

• Continuous Flow Synchronization: Our control logic manages the timing of automated safety gates and conveyor rollers, providing a seamless multi-level material flow that integrates perfectly with your facility’s automated pulse.

Industry 4.0 Connectivity and Full Factory System Integration
Vertical logistics must function as a transparent node within your digital facility infrastructure. Every Gradin Bespoke Automated VRC features an open-architecture control system designed for full digital integration.

• Real-Time Data Handshake: Through Profinet, EtherCAT, or 5G connectivity, the VRC communicates directly with your Manufacturing Execution System (MES) or WMS, providing instant updates on cargo location and system diagnostics.

• Autonomous Operational Logic: The system can be programmed to autonomously manage pallet sequencing, multi-level buffering, and automatic safety-gate triggering without human intervention.

• Predictive Maintenance Monitoring: The system tracks chain/cable tension, motor torque profiles, and cycle health, providing the data needed to prevent unplanned downtime in high-stakes 24/7 automated facilities.
